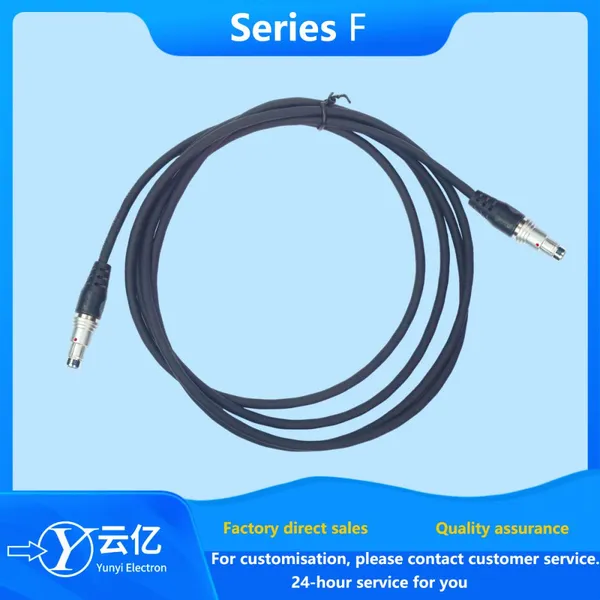

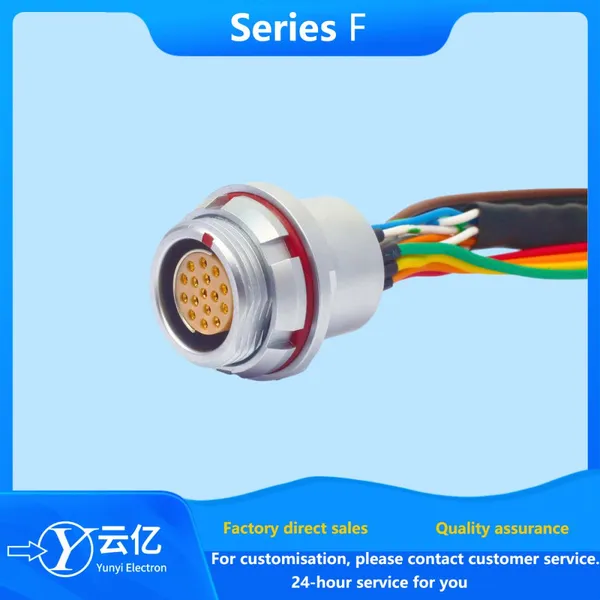

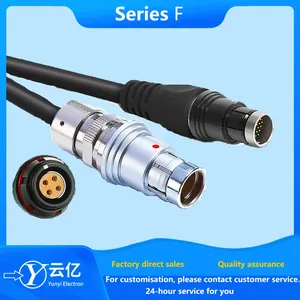

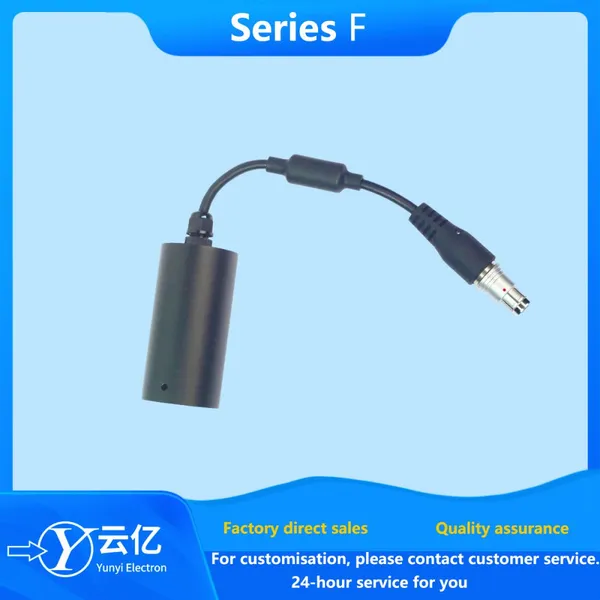

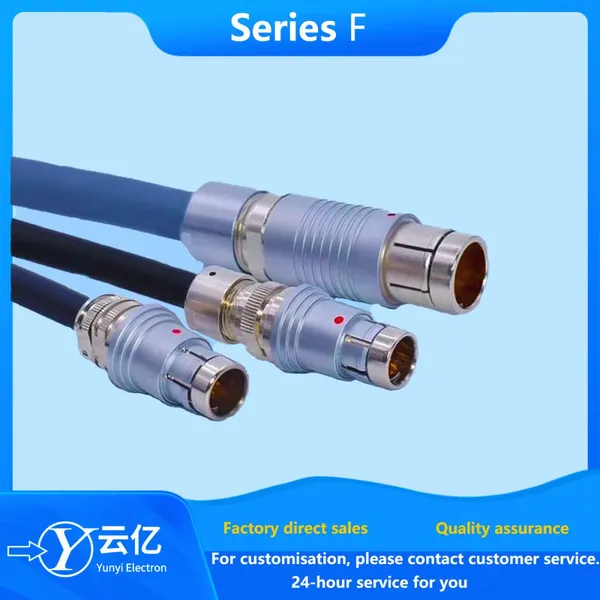

Compatible with major manufacturers push-pull self-locking connector TLN plug welding audio and video power cable

F series content

F series connector product introduction

The F series micro-circular high-density connector is a split-dib push-in and pull-out structure. After insertion, it has a self-locking function. The interior adopts a semi-garden positioning film to prevent mis-plugging. In addition, the T series and C series have a multi-party positioning system for the positioning pin positioning piece to prevent mis-plugging on the same number of cores, and also have blind insertion. The function is convenient and fast to use. This series of connectors have the characteristics of fast plug-in, high density, waterproof, small size, blind plug-in and high service life. It is especially suitable for high-density installation, relatively small space installation and places where it is difficult to insert and separate by rotating. It can be applied to harsh environments in the field, with protection level 1P68. The connector is widely used in the electrical connection of DC AC circuits in military and civilian field radio equipment, medical equipment test equipment, audio equipment, data acquisition, industrial control, aerospace and other occasions.

Main features of F series connectors

Safe split-be push-pull self-locking system;

Multi-core type 1-40 core;

Welding and printing plate needle core;

High-density installation saves space

Internal semicircular positioning to prevent mis-interpolation;

Technical performance of F series connectors

Mechanical life: 5000 times

Oscillation: frequency 10-2000Hz, acceleration 147m/5', ≤1um instantaneous break

Strike: acceleration 490m/2, ≤1um instantaneous break

Operating temperature: -55°C~+145°C

Relative humidity: up to 95% at 40°C

IP68 protection level, waterproof. Sand protection;

360-degree shielding provides all-round EMC protection

Salt spray time: Pearl Ming 72h; Black nickel: 96h; Stainless steel 3161: 1000h
