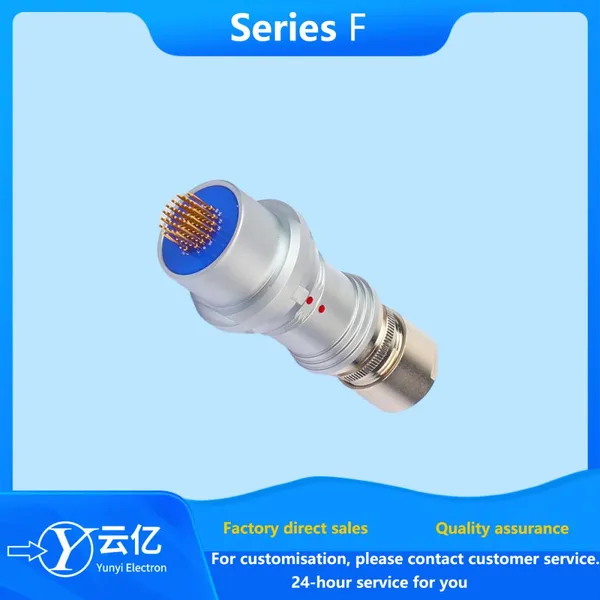

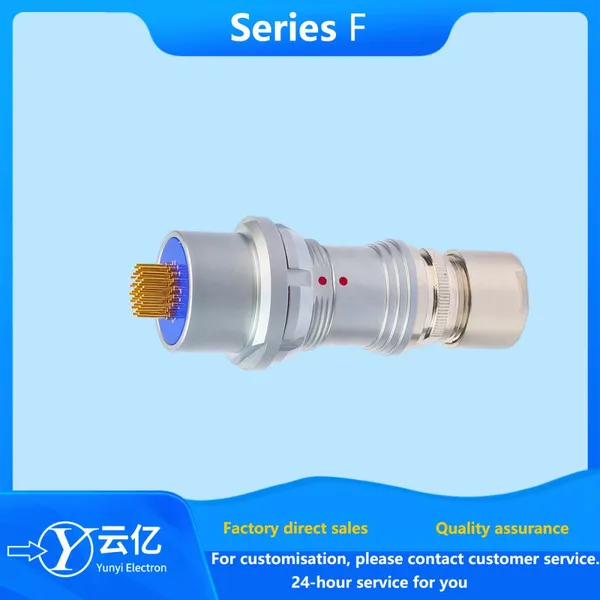

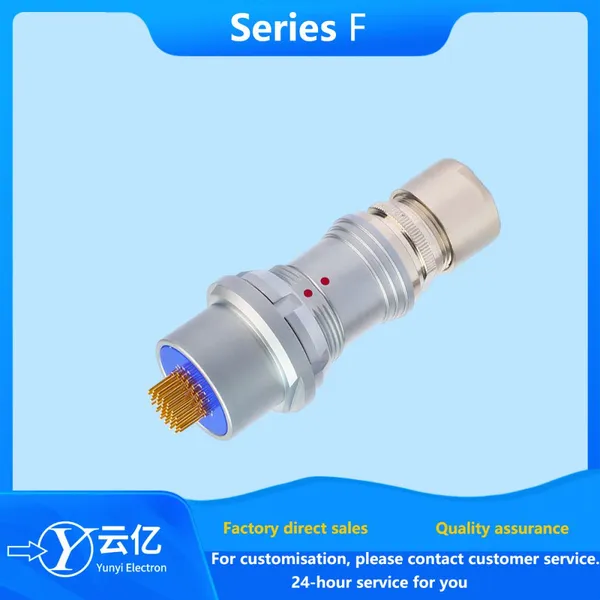

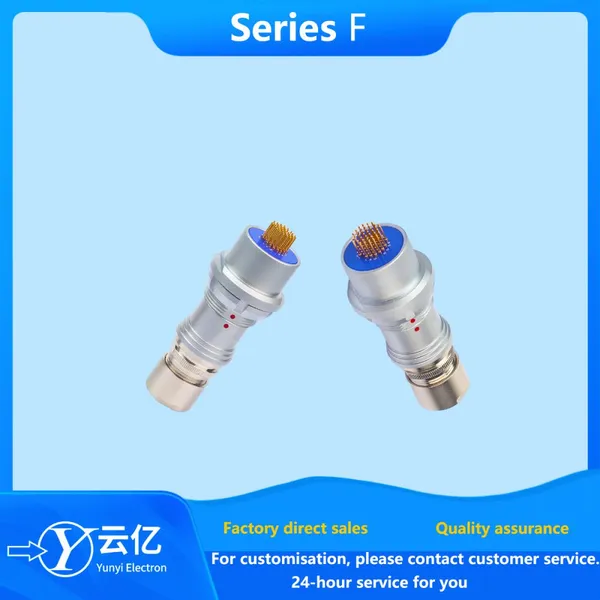

Help CenterPush-pull Self-locking Connector F105T03J112-230/F105Z19K112-230 Aviation Plug Socket
Related Products
-
Compatible With Major Manufacturers Push-pull Self-locking Connector TLN Plug Welding Audio and Video Power CableUS$ 135 - 168MOQ: 1 Set -
TLF1HSS1C312J-50 Push-pull Self-locking Connector TLF1WG8C312K Metal Aviation PlugUS$ 135 - 168MOQ: 1 Set
-
Push-pull Self-locking Connecter F1031Z19J019-130 F1031Z19K019-140 Aviation PlugUS$ 135 - 168MOQ: 1 Set
-
Single-core Coaxial Connector TFA.00S.250. CLAC27Z Aviation Plug SocketUS$ 135 - 168MOQ: 1 Set
-
Push-pull Self-locking Connector T Series 8pin Aviation Plug Socket WeldingUS$ 135 - 168MOQ: 1 Set
F series content
F series connecter product introduction
The F series micro-circular high-density connecter is a split-lobe push-in and pull-out structure. After plugging, it has a self-locking function. The interior adopts a semi-park positioning film to prevent mis-inserting. In addition, its Xingsheng T series and C series, respectively, have a positioning pin positioning pin positioning sheet multi-party positioning system to prevent wrong plugging and unplugging on the same number. At the same time, it also has blind insertion. Function, convenient and fast to use. This series of connecters has the characteristics of fast insertion, high density, waterproof, small volume, blind insertion and high service life. It is especially suitable for high-density installation, relatively small space installation and places where it is difficult to insert and separate by rotating. It can be applied to harsh environments in the field, with protection level 1P68. The connecter is widely used in the electrical connection of DC AC circuits in military and civilian fields such as radio equipment, test equipment, audio equipment, data acquisition, industrial control, aerospace and other occasions.
Main features of F series connecters
Safe split-lobe push-pull self-locking system;
Multi-core type 1-40 cores;
Welding and printing plate needle core;
High-density installation, space-saving
Internal semi-circular positioning to prevent mis-interpolation;
Technical performance of F series connecters
Mechanical life: 5000 times
Vibration: frequency 10-2000Hz, acceleration 147m/5', ≤1um instantaneous break
Strike: acceleration 490m/2, ≤1um instantaneous break
Operating temperature: -55°C~+145°C
Relative humidity: up to 95% at 40°C
IP68 protection level, waterproof. Sand protection;
360-degree shielding provides EMC protection
Salt spray time: pearl inscription 72h; black nickel: 96h; stainless steel 3161: 1000h
Dongguan Yunyi Electronic Technology Co., Ltd.
