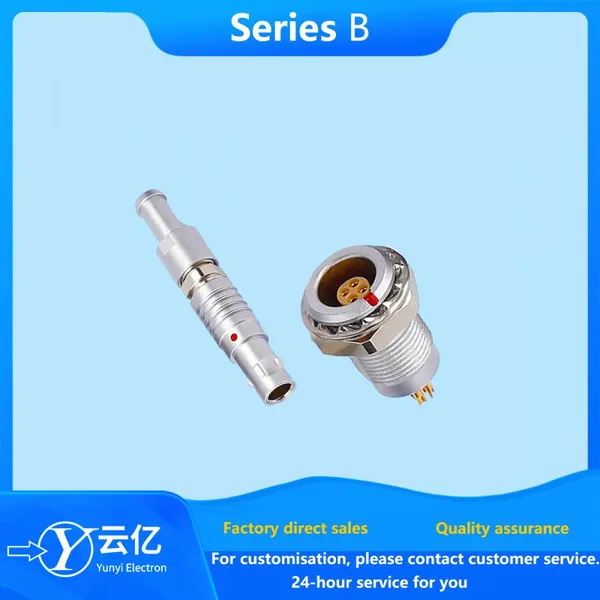

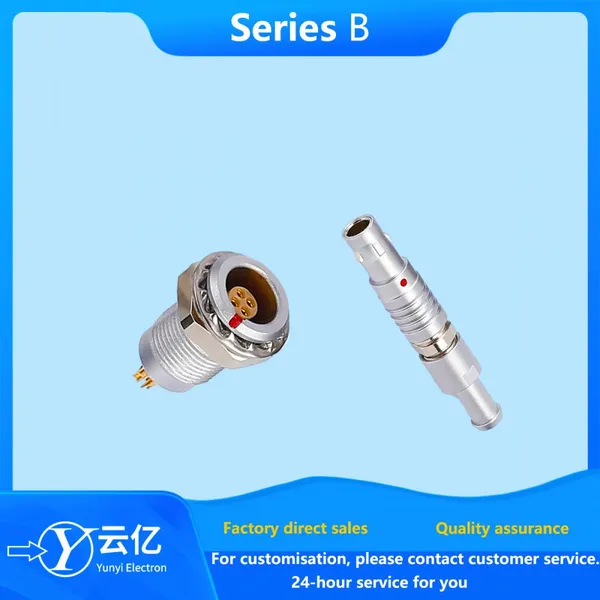

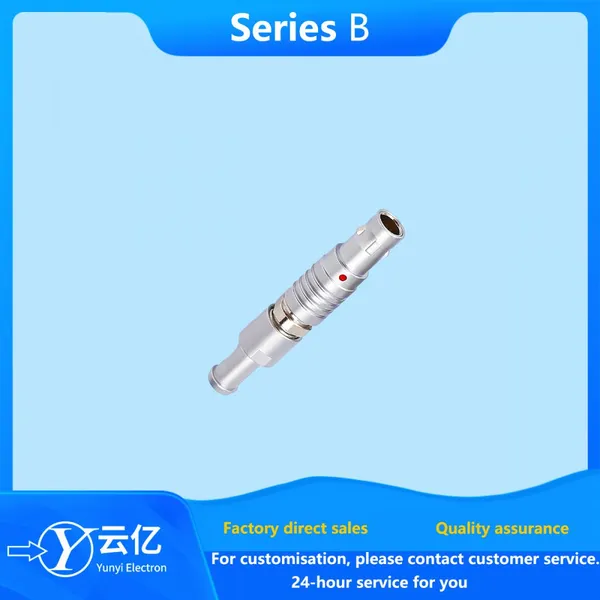

Plug-in push-pull self-locking connector 0B 2-core 3-core 4-core 5-core 6-core 7-core 9-core aviation plug socket

B series content

Introduction to B series connectors

Series B is a modular, durable and reliable circular push-pull self-locking connector that meets ergonomic requirements. It adopts an elastic self-locking device and can be used for applications that require quick and safe self-locking. This series of products is ideal for testing, measurement, testing instruments, medical equipment, scientific research and audio/video applications. The modular configuration mainly includes various high-density multi-core or mixed needle core configurations. The type of needle core can be welding needle core, crimping needle core, PCB straight needle core or curved needle core. The type of needle core also includes optical fiber, coaxial, thermocouple, air circuit, jet and high-voltage signal. The multi-positioning pin system can achieve high contact density to prevent mixing.

Product features

Fast push-pull self-locking system;

Welding, crimping and printing plate types;

Straight, 90° curved;

A variety of positioning pin options can avoid mixing between similar connectors;

Shielding effect, anti-electromagnetic interference;

Multi-core 2-32 core, high-density installation to save space;

Positioning pin system, G is the standard positioning pin, which is used for connector positioning.

Technical performance of B series metal connectors

Mechanical properties and environmental factors:

Number of plugs and pulls: >5000 times

Humidity: at a temperature of 60°, humidity up to 95%

Temperature range: -45°~+125°

Vibration: 10-2000Hz, 15g

Mechanical impact: 100g. 6ms

Salt corrosion test: >72h

Protection level: IP50

Quick plugging: The push-pull self-locking connector can be quickly plugged and unplugged through simple push-pull actions without the use of tools, which greatly improves the efficiency of installation and disassembly.

Automatic locking: When pushing and retracting, the push-pull self-locking connector can automatically lock, avoiding the use of traditional mechanical locking pins and improving the stability and reliability of the connection.

Compact and flexible: This connector is compactly designed and suitable for applications with limited space and high-density installation, such as industrial automation.

Multi-core and diverse: support signal, data and power transmission, provide a variety of pin distribution and anti-plug-in coding to meet the needs of different applications.

Protection level: It has a waterproof and dustproof level of IP65-68, providing 360° full EMC protection, which can absorb vibration and impact energy.
