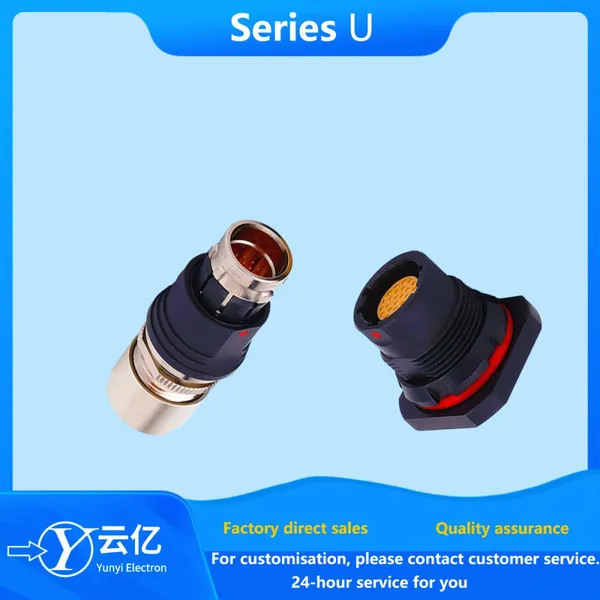

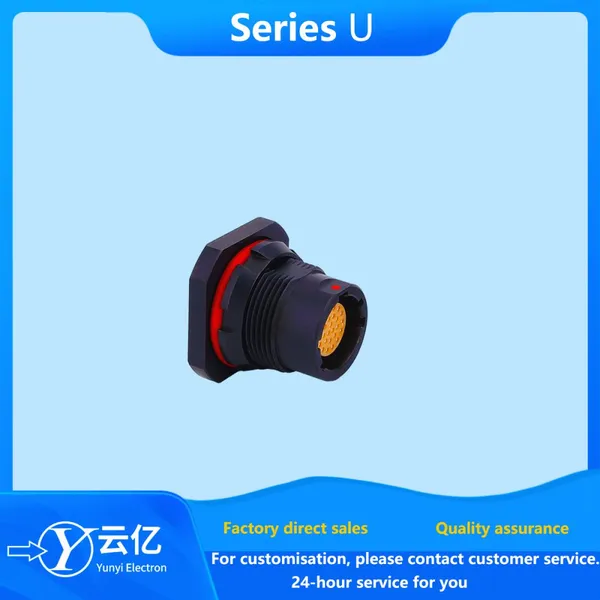

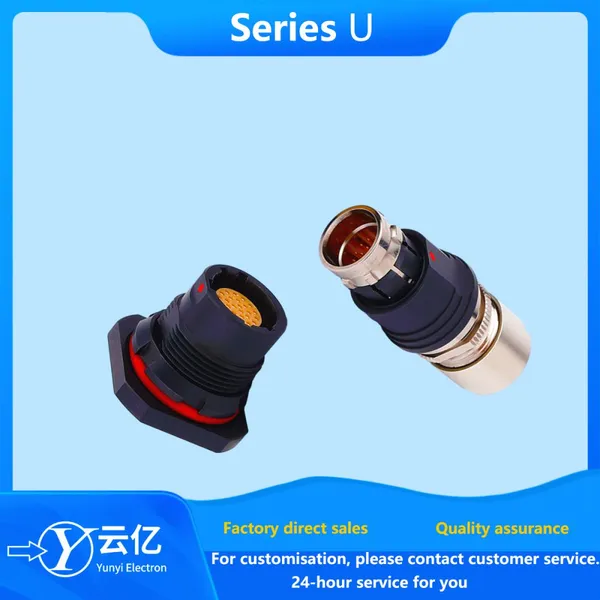

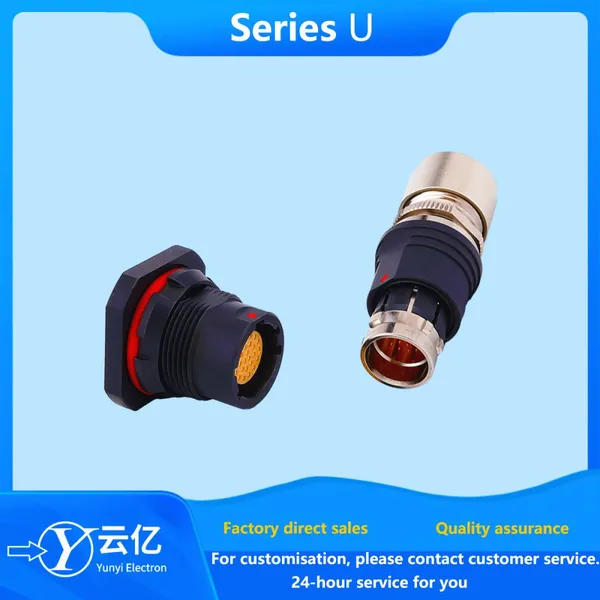

Help CenterPush-pull Self-locking Connector U Series Metal Waterproof Aviation Plug Socket
Related Products
-
Push-pull Self-locking Connector TL24 Series 14pin Metal Waterproof Aviation Plug SocketUS$ 135 - 168MOQ: 1 Set -
Floating Aviation Socket PHG.1B.308. CLLD62Z Push-pull Self-locking Connector FGG.1B.308. CLAD62ZUS$ 135 - 168MOQ: 1 Set
-
Pin Mixed Push-pull Self-locking Connector FX104Z02C087JB-B FX104T02C087KC-HSUS$ 135 - 168MOQ: 1 Set
-
T Series Aviation Plug Socket TLG.2A.102T.304. CLAD52 Push-pull Self-locking Connector ZYA.2A.102T.304. CLLNP52US$ 135 - 168MOQ: 1 Set
-
Push-pull Self-locking Connector TGG.2B.316. CLAD52Z Round Medical Plug ZGG.2B.316. CLLUS$ 135 - 168MOQ: 1 Set
U series connector content
The u series connector is a multi-key multi-positioning structure push-pull self-locking connector created by combining the B series positioning pin structure and the F series split-valve shrapnel structure. The connector is mainly used for low-frequency signal transmission in electronic equipment. It has small size, convenient operation, good shielding effect, good sealing, three-key positioning and five-key protection. It is characterized by misplugging, strong shell, resistance to electromagnetic interference, good environmental resistance, long service life, etc. It is widely used in medical machinery, communication systems, computers, small communications and other equipment.
U series connector performance
Mechanical life: 5000 times
Vibration: frequency 10-2000Hz, acceleration 147m/s', ≤1um instantaneous break
Impact: acceleration 490m/3, ≤1um instantaneous break
Operating temperature: -55°C~ +145°C
Relative humidity: up to 95% at 40°C
Working pressure: 4.39KPa ~ 101.33kpa;
Sealing: socket: pressure difference 1.01×105Pa, no bubble leakage for 1min (0.2×105Pa at the flange); head seat plug: 1.5m water depth, 24h no water seepage (the tail of the plug needs to be sealed and protected);
Salt spray: 96 hours in 5% Nacl fog:
Insulation resistance: 5000MQ (normal)
Quick plugging: The push-pull self-locking connector can be quickly plugged and unplugged through simple push-pull actions without the use of tools, which greatly improves the efficiency of installation and disassembly.
Automatic locking: When pushing and retracting, the push-pull self-locking connector can automatically lock, avoiding the use of traditional mechanical locking pins and improving the stability and reliability of the connection.
Compact and flexible: This connector is compactly designed and suitable for applications with limited space and high-density installation, such as industrial automation.
Multi-core and diverse: support signal, data and power transmission, provide a variety of pin distribution and anti-plug-in coding to meet the needs of different applications.
Protection level: It has a waterproof and dustproof level of IP65-68, providing 360° full EMC protection, which can absorb vibration and impact energy.
