Help CenterIEC 62560 Bending Moment Test Device for Testing Lamp
Related Products
-
IEC 60335-2-17 Blankets Mechanical Strength Test ApparatusUS$ 2000 - 8000MOQ: 1 Set -
IEC 60811 Cable Sheaths Indentation Testing DeviceUS$ 1000 - 8000MOQ: 1 Set
-
IEC 60335-2-2 Current-Carry Hoses Abrasion Test ApparatusUS$ 2000 - 8000MOQ: 1 Set
-
IEC 62368-1 Handle Strength Test ApparatusUS$ 3000 - 8000MOQ: 1 Set
-
IEC 60950 High Current ARC Ignition Test ApparatusUS$ 2000 - 8000MOQ: 1 Set
1. Introduction
The bending moment test device is applied to test the bending moment of the lamp at the lampholders, the value of bending moment shall not exceed the values given in below table. The test device can meet the test requirement of IEC60968-2015-02 clause 6.2 and IEC62560 clause 6.2.
Caps |
Bending moment (Nm) |
Mass (kg) |
B15d |
1 |
/ |
B22d |
2 |
1 |
E11 |
0.5 |
/ |
E12 |
0.5 |
/ |
E14 |
1 |
/ |
E17 |
1 |
/ |
E26 |
2 |
/ |
E27 |
2 |
1 |
E39 |
1 |
/ |
E40 |
1 |
/ |
GU10 |
0.1 |
/ |
GZ10 |
0.1 |
/ |
GX53 |
0.3 |
/ |
2. Parameter
Force gauge |
Test range: 0-10Nm Resolution: 0.1Nm Accuracy: ±0.3% F.S. |
Lifting structure |
Lifting range: 0-100mm Structure: linear guideway+manual wheeler |
Bending moment |

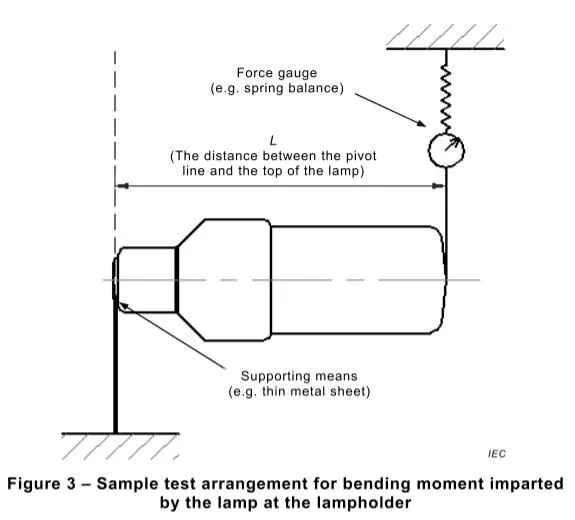

L*N L: distance between the pivot line and the top of the lamp, measured by steel ruler N: force value, measured by digital force gauge |
Accessories |
Digital force gauge, fixed blocks, steel ruler |
