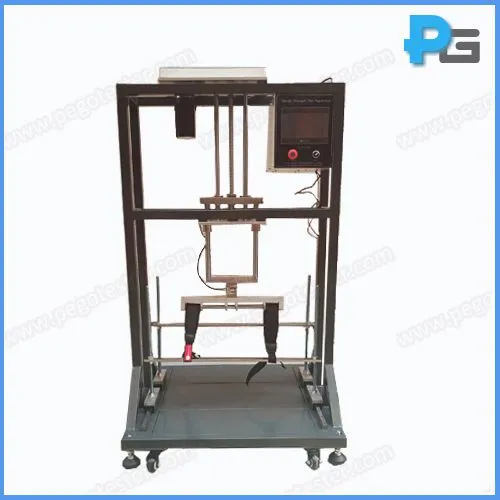

IEC 62368-1 Handle Strength Test Apparatus
1. Introduction
The handle strength test apparatus is designed to meet the test requirement of to IEC62368-1-2018 clause 8.8, GB9706.1-2007 clause 21. It’s applied to test the strength of handle for lifting or carrying the equipment, like of portable medical equipment.
A weight exerts a force of 3 times or 2 times the weight of the equipment shall be uniformly applied over a 75mm width at the centre of the handle, without clamping. The additional weight shall be started at zero and gradually increased so that the test value is attained in 5s to 10s and maintained for 60s. After the test, the handle shall not break, crack, or detach from the equipment.
2.Specification
Control way |
PLC+touch screen |
Station |
1 |
Test drive |
Infinitely adjustable speed motor |
Range of tension |
0-200KG (0-1960N) Unit: KG and N switchable Accuracy: ±1% |
Time counter |
Real-time display holding time |
Test specimen |
One handle or multiple handles Maximum allowable sample dimension: 700mm*500mm*500mm |
Induction method |
Force sensor |
Force display |
The instantaneous force value of the sample can be displayed during the test |
Rise speed |
fixed |
Dimension |
950mm*980mm*1800mm |
Working power |
AC220V/50Hz |
Weight applied as per IEC60236-1: 2018 clause 8.8 |
a. for MS1 equipment with two or more handles, a weight that exerts a force of three times the weight of the equipment; |
