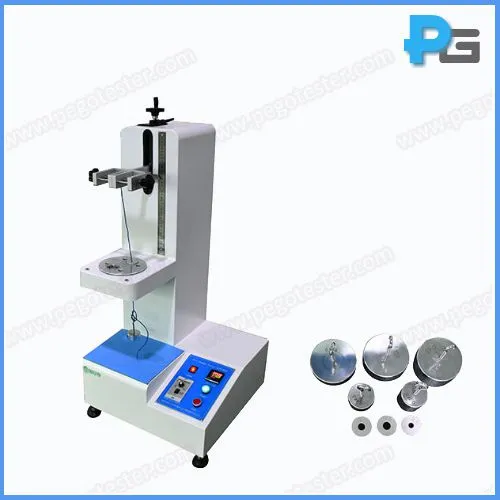

IEC 60884-1 Figure 13 Testing Apparatus for Checking Damage to Conductors

Name: IEC 60884-1 Figure 13 Testing Apparatus for Checking Damage to Conductors
Brand: Pego
SKU: 172597031
Availability: InStock

Pego Electronics (Yi Chun) Company Limited

IEC 60884-1 Figure 13 Testing Apparatus for Checking Damage to Conductors thumbnail-1

IEC 60884-1 Figure 13 Testing Apparatus for Checking Damage to Conductors photo-1

US$ 2000 - 5000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Pego

Place of Origin:

China

Model Number:

PG-ADG

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

25 days

Product Details
Company Profile
Contact Us

Brand Name Pego

Place of Origin China

Model Number PG-ADG

Power Electronic

IEC 60884-1 Figure 13 Testing Apparatus for Checking Damage to Conductors

1. Introduction

The apparatus for checking damage to conductors is designed to meet the test requirements of IEC60884-1:2022 clause 12.2.5 and figure 13, IEC60669-1 clause 12.2.5 and figure 9, IEC62052-31 clause 6.9.7.3 (for flexion test). It is applied to checking if the terminal with screw clamping or screwless clamping can withstand the mechanical stress in normal use, and judging whether the design and structure of the screw clamping terminal meet the requirements of not excessively damaging the conductor when it clamps the conductor.

2. Specification

Model	PG-ADG	PG-ADG1	PG-ADG2
Control mode	Electric control
Working station	1
Working speed	10±2r/min
Bushing rotation diameter	75mm
Test time	0-99min59s (test time can be preset, and stop automatically when time up)
Configured mass	0.3KG, 0.4KG, 0.7KG, 0.9KG, 1.4KG, 2.0KG	0.3KG,0.4KG, 0.7KG, 0.9KG, 1.4KG, 2.0KG	0.4KG, 0.7KG, 0.9KG, 1.4KG, 2.0KG, 2.9KG, 4.5KG, 6.8KG, 9.5KG
Test height	260mm, 280mm	260mm, 280mm, 300mm	260mm, 280mm, 300mm, 320mm, 343mm
Diameter of f bushing hole	6.5mm, 9.5mm	6.5mm, 9.5mm, 13mm	6.5mm, 9.5mm, 9.4mm, 13.0mm, 14.5mm, 15.9mm
Height adjusting mode	Manual adjustable
Maximum conductor cross-section it can test	≤10.0mm²	≤25.0mm²	≤50.0mm²
Dimension and weight	L530mmD500mmH800mm/80kg
Working power	AC220±10%, 50/60Hz
Working condition	5-35℃ (temp.), 30%-90%R.H.
Standard conform to	IEC60884-1 clause 12.2.5/figure 13	IEC60669-1 clause 12.2.5/figure 9	IEC62052-31 clause 6.9.7.3/figure H.1
