IEC 60811 Cable Sheaths Indentation Testing Device
US$ 1000 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-IDD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
25 days
Related Products
-
IEC 60335-2-2 Current-Carry Hoses Abrasion Test ApparatusUS$ 2000 - 8000MOQ: 1 Set -
IEC 62368-1 Handle Strength Test ApparatusUS$ 3000 - 8000MOQ: 1 Set
-
IEC 60950 High Current ARC Ignition Test ApparatusUS$ 2000 - 8000MOQ: 1 Set
-
IEC 60598-1 Tumbling Barrel Testing MachineUS$ 2000 - 8000MOQ: 1 Set
-
IEC 60598-2-20 Lab Equipment Lighting Chains Pressure Test DeviceUS$ 800 - 2000MOQ: 1 Set
Brand Name
Pego
Place of Origin
China
Model Number
PG-IDD
Power
Electronic
IEC 60811 Cable Sheaths Indentation Device
1. Introduction

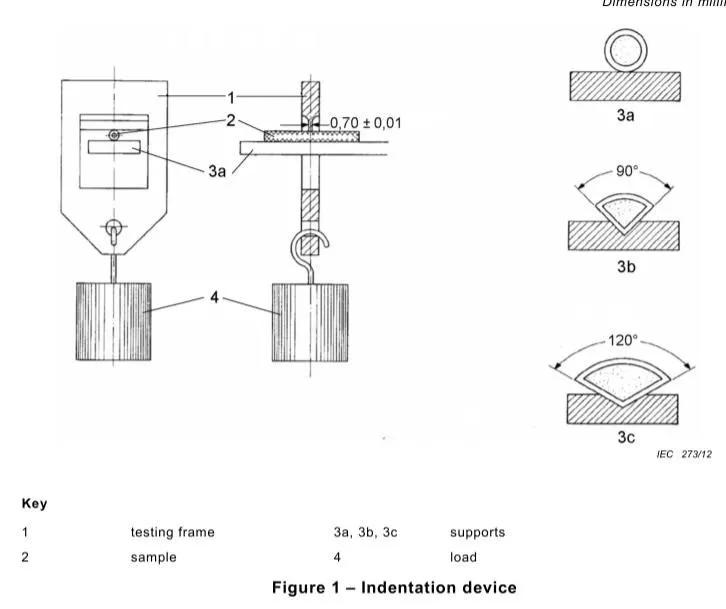

The indentation device is designed according to IEC60811-508:2012 figure 1, the device is consisted by blade, supporting mandrel and loads.It is applied to test the indentation produced by the insulation sheath of the plug or cable under high temperature and pressure, the device should work with oven.
2. Parameter
Test station |
3 |
Blade thickness |
0.7±0.01mm |
Blade width |
30mm±0.1mm |
Load |
1g*3, 2g*3, 5g*3, 10g*3, 20g*3, 50g*3, 100g*3, 200g*3, 500g*3, 1000g*3 Made of stainless steel |
Application |
≥0.4mm and ≤55mm insulation sheath |
Supporting mandrel |
Flat plate, 900 V slot plate, 1200 V slot plate |
Weight tray |
Diameter φ100mm |
Material of device |
SUS304 |
Dimension |
400mm*220mm*330mm |
Weight |
Approximate 20kg |
