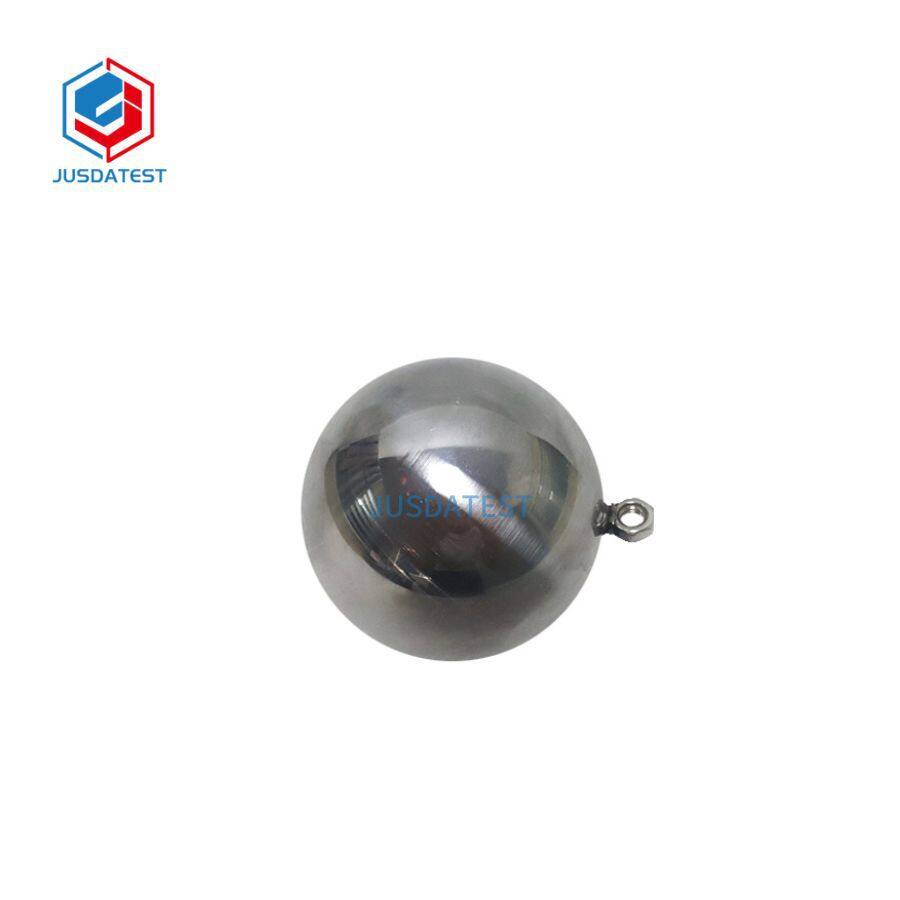

IEC 62368-1 Annex T steel sphere 50 mm diameter & 500 g mass
A sample consisting of the complete enclosure or a portion thereof, representing the largest unreinforced area is supported in its normal position. A solid, smooth, steel sphere of 50 mm ± 1mm in diameter and with a mass of 500 g ± 25 g, is used to perform the following tests:

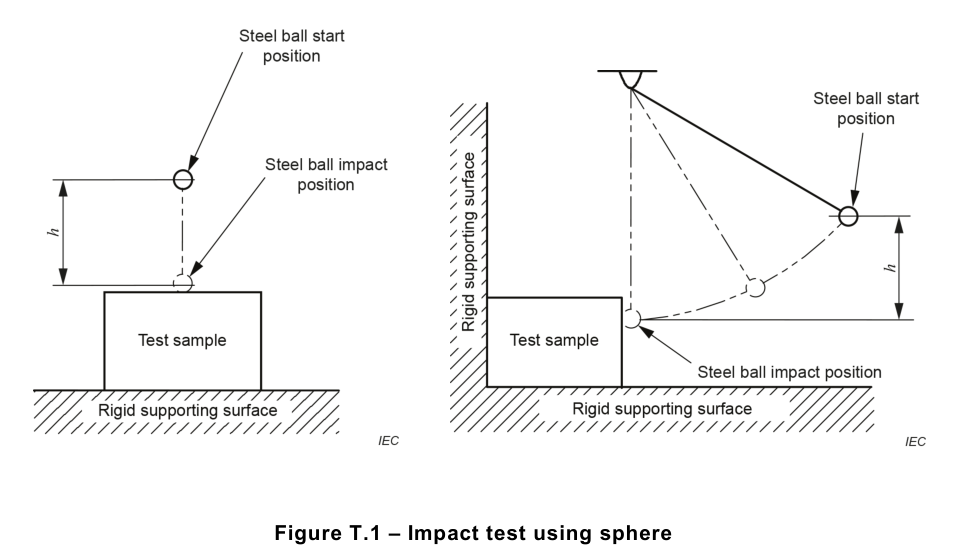

– on horizontal surfaces, the sphere is to fall freely from rest through a vertical distance of 1300 mm ± 10 mm onto the sample (see Figure T.1); and
– on vertical surfaces, the sphere is suspended by a cord and swung as a pendulum in order to apply a horizontal impact, dropping through a vertical distance of 1 300 mm ± 10 mm onto the sample (see Figure T.1).
For evaluating a part that acts as a fire enclosure only, the test is done as above, but the vertical distance is 410 mm ± 10 mm.
