BS1363-2 Test Pin With Force 5N for Figure 1

BS1363-2 Test Pin with force 5N for Figure 1

Figure 1 — Test pin

Figure 2a) — Apparatus for mechanical strength test on resilient covers

Figure 2b) — Hardwood block for Figure 2a)

Figure 4a) — Dimensions and disposition of pins

Figure 4b) — Concave shrinkage allowance for ISODs

Figure 5 — Gauge for plug pins

Figure 6 — Apparatus for testing plug cover fixing screws

Figure 7 — Mounting plate

Figure 8 — Plug pin deflection test apparatus for resilient plugs

Figure 9 — Apparatus for abrasion test on insulating sleeves of plug pins

Figure 10 — Apparatus for pressure test at high temperatures

Figure 11 — GO gauge for socket-outlet

Figure 12 — Contact test gauge 45

Figure 13 — Test apparatus and circuit for use with contact and

non-contact test gauges 46

Figure 14 — Non-contact test gauge 47

Figure 15 — Turning moment gauge

Figure 16 — Withdrawal pull gauges for effectiveness of contact

Figure 17a) — Test apparatus for temperature rise test

Figure 17b) — Dummy front plate for temperature rise test

Figure 18 — Apparatus for flexing test

Figure 19 — Solid link for test on fuse clips

Figure 20 — Tumbling barrel

Figure 23 — Apparatus for pressure test

Figure 24 — Apparatus for ball pressure test

Figure 28 — Calibrated link

Figure 29 — Calibration of calibrated link

Figure 30 — Test plug for temperature rise

Figure 32 — Apparatus for tests on plug pins

Figure 33 — Apparatus for torsion test on pins

Figure 34 — Test plug 62

Figure 35 — Simulated plug and cord devices 63

Figure 36 — Apparatus for calibration of turning moment of

simulated plug 64

Figure 37 — Turning moment apparatus 65

Figure 38 — Solid links for test on fuse clips

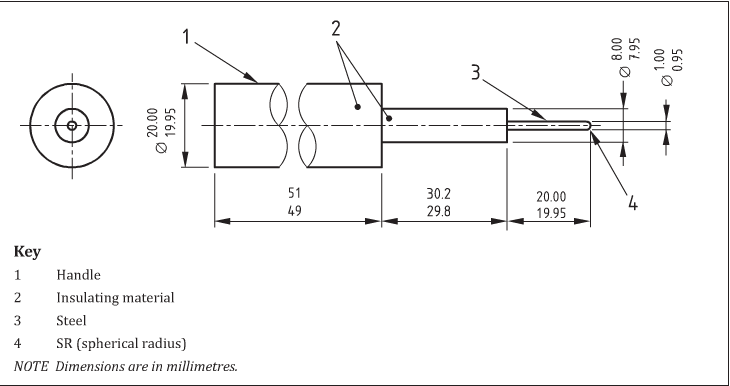

Figure 1 — Test pin

9 Accessibility of live parts

9.1 Socket-outlets shall be so designed that when they are mounted and wired as in normal use, live parts are not accessible.

9.1.1 Compliance shall be checked by the application of the test pin shown in Figure 1 perpendicular to the accessible external surface of the socket-outlet with a force of 5 N. It shall not be possible to touch live parts.

9.2 Socket-outlets shall be designed and constructed so as to protect the user against accidental contact with live parts during insertion or withdrawal of plugs.

9.2.1 Compliance shall be proved by satisfying the dimensional and gauging requirements of this part of BS 1363.
