IEC 60529 IPX5/6 Hand-Held Jet Nozzle
US$ 300 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
IPX56A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days
Related Products
-
IEC 60529 IPX5 and IPX6 Jet Nozzles Waterproof Testing Equipment With 6.3mm and 12.5mm NozzlesUS$ 5000 - 10000MOQ: 1 Set -
UL 60507 Water Spray Test Equipment With 3pcs UL Water Spray HeadsUS$ 2000 - 5000MOQ: 1 Set
-
JIS D0203 Spray Nozzle and Rain Nozzle Test Chamber With IPX34 Oscillating TubeUS$ 5000 - 10000MOQ: 1 Set
-
IEC 60529 IP5X and IP6X Sand and Dust Test Chamber for Testing Led Lamps and Street LightsUS$ 5000 - 10000MOQ: 1 Set
-
ISO 16750-4 Ice Water Splash Test ChamberUS$ 5000 - 15000MOQ: 1 Set
Brand Name
Pego
Place of Origin
China
Model Number
IPX56A
Power
Electronic
IEC 60529 IPX5/6 Hand-Held Jet Nozzle
1. Introduction

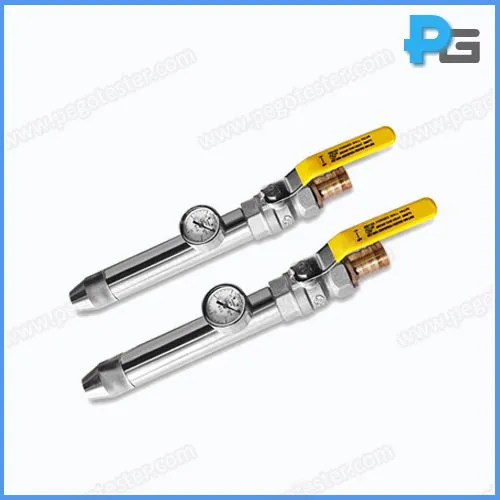

Jet nozzles are strictly designed according to IEC60529 figure 6 to verify protection against water jet. Test nozzle with inner diameter Φ6.3mm is for IPX5 test, and test nozzle with inner diameter Φ12.5mm is for IPX5 test. The hose nozzles are made of SUS304 stainless steel and it is consisted by 2 nozzles ( Φ6.3mm and Φ12.5mm), pressure gauge and valve.
2. Parameters:
Item |
IPX5 |
IPX6 |
Nozzle Hole Diameter |
6.3mm |
12.5mm |
Water Discharge |
12.5L±0.625L/min |
100±5L/min |
Nozzle distance between shell |
2.5-3m |
|
Test Time |
More than 1min/m2 and 3mins |
|
Pressure Gauge |
0~0.25Mpa |
|
Material |
SUS304 stainless steel |
|
