1. Introduction
The splash water test chamber meets the requirement of ISO16750-4 clause 5.4.2. It can be used for splash water or high temperature test alone, to simulate ice water splashing over a hot system or components when driving on wet roads in the winter. Failure modes are mechanical cracking of materials or seal failures caused by different temperature expansion coefficients. It’s a reliability testing equipment for cold resistance, heat resistance, ice water splash resistance test and quality control engineering of various electronic, electrical, plastic and other raw materials and devices.
2. Features:
● For ice water splash resistance test
● The inner wall of the equipment are made by SUS316# stainless steel, to ensure rustless.
● Thermal insulation material: high-density glass fiber cotton to ensure thermal insulation performance and maintain a balanced and stable temperature in the chamber.
● Equip with a transparent observation window (multi-layer hollow tempered glass) and LED lighting on the door, which is convenient for observing the internal test situation
● The mixing system adopts a long-axis fan motor and a SUS304# stainless steel multi-blade impeller resistant to high and low temperature to achieve strong convection and vertical diffusion circulation, so that the temperature in the laboratory is uniform and stable;
● Double-layer high-temperature-resistant high-tension sealing strips are used between the door and the chasis of the equipment to ensure the airtightness of the test area. The inner panel of the door is made of SUS316# stainless steel, and the non-reaction door handle is used, which is easier to operate;
● The test hole (diameter 100mm) is installed on the left side of the device, which can be used for external test power lines or signal lines;
● Control components: 7 inch touch screen+ PLC. The electrical components are made by LS, Omron, etc. The wiring process meets the requirements of Chinese national standards, the layout of the electric board is reasonable, the wiring is firm, and the marking is clear.
● The refrigeration system of the equipment is installed at the bottom. The compressor adopts the imported French Taikang brand to ensure the cooling effect and reliability, the condensation method is air-cooled, and R404R environmentally friendly refrigerant is used. The entire system pipeline has passed the pressurized 48H leak test to confirm that the refrigeration system can operate stably for a long time. The casing heat exchanger is made of SUS316# stainless steel to prevent salt water corrosion;
● Flowmeter: A digital flowmeter is used to measure the flow rate of the ice water splash test. The signal of the digital flowmeter is fed back to the PLC, and the automatic constant flow is controlled by PID, and the flow rate is directly displayed on the touch screen.
● High-quality fixed PU movable Korean casters are installed at the bottom of the machine, which can easily move the machine to the designated position, and finally fix the casters;

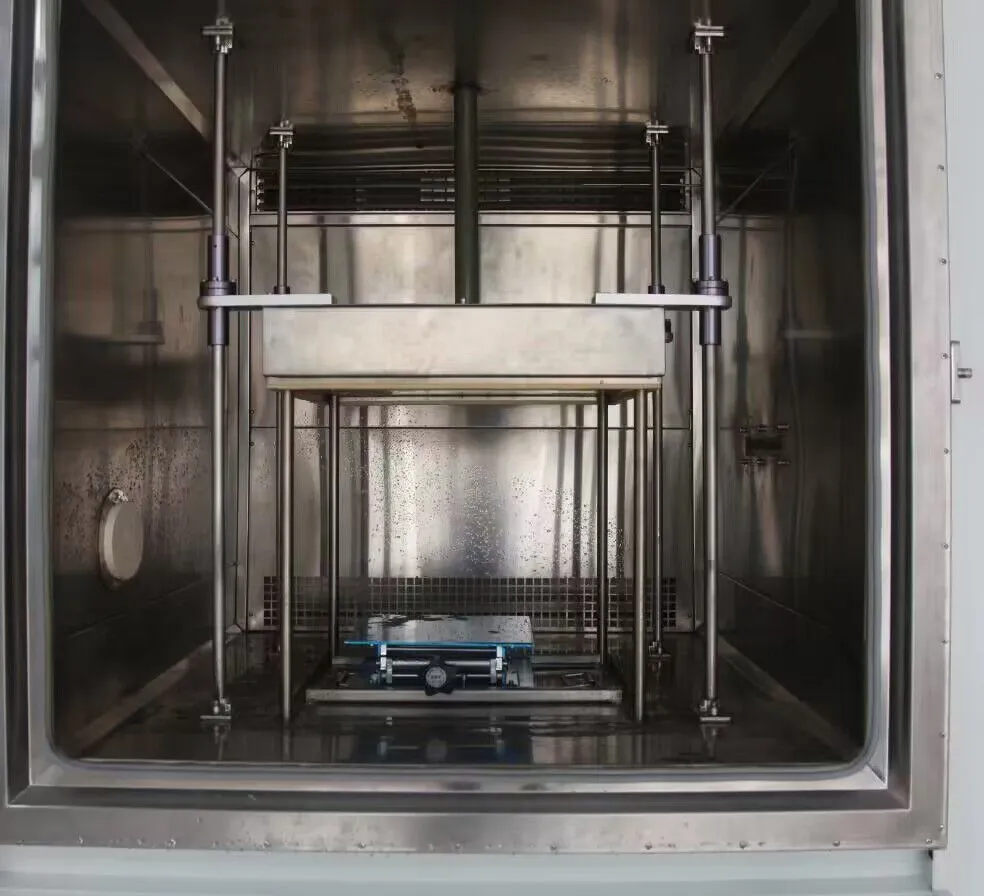

● Ice water splash test: the nozzle is fixed on the right side of the test chamber; the spray distance is adjusted by moving the sample
3. Specification
Outer size (L*W*H) |
1500*1900*2250 (mm) |
Inner size (L*W*H) |
1000*1000*1000 (mm) |
Spray nozzle |
Slot jet*1 |
Nozzle position |
Right side of inner chamber |
Distance nozzle to device under test |
(325±25) mm (munally adjust) |
High temperature range |
RT +10℃~150℃ |
Heating rate |
RT +10℃~150℃ ≤ 45min |
Splash water temperature |
0℃~+4℃ |
Cooling rate |
+25℃~2℃≤ 60min |
Water flow |
(3~4)L/3s |
Test liquid |
De-ionized water or +3% Arizona fine dust |
Injection time per cycle (30min) |
3s, interal time:29min57s (touch screen setting) |
Number of shocks (cycles) |
100 cycles (touch screen setting) |
Working power |
380V/50Hz (3 phase 4 wires+ protective ground) |
Power |
12.0KW |
Protective Earth Grounding Resistance |
Grounding resistance of the protective ground wire 4Ω |
Working conditions |
5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure) |
Accessories |
water pipe*6m |
Water source |
1).The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet. 2).The faucet is not more than 2 meters away from the equipment |
Requirement for the site |
1). The ground is level, the drainage is unobstructed, the ground and walls are waterproofed, and the floor drain or drainage ditch is set 2). The ground bearing capacity is not less than 200kg/m2 3). Appropriate space for use and maintenance is reserved around the equipment. Top and side are 800mm suggested, and front is 1500mm suggested |
Requirement for power switch |
1) . The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and this switch must be independent for the use of the equipment 2). It is forbidden to use knife switches or power sockets 3).The leakage protection air switch is not more than 2 meters away from the equipment |
