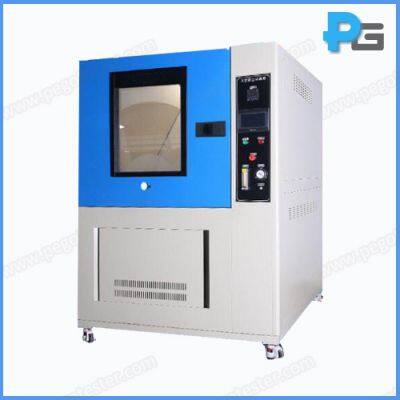

Dustproof test chamber is designed according to the standards of GB/T10485-2007, GB2423.37-2006 test L, GB208-2008, IEC60529 (IP code), GB7001-1986 and etc. This equipment is mainly used in IP5X and IP6X testing about the leakproofness of the enclosure.

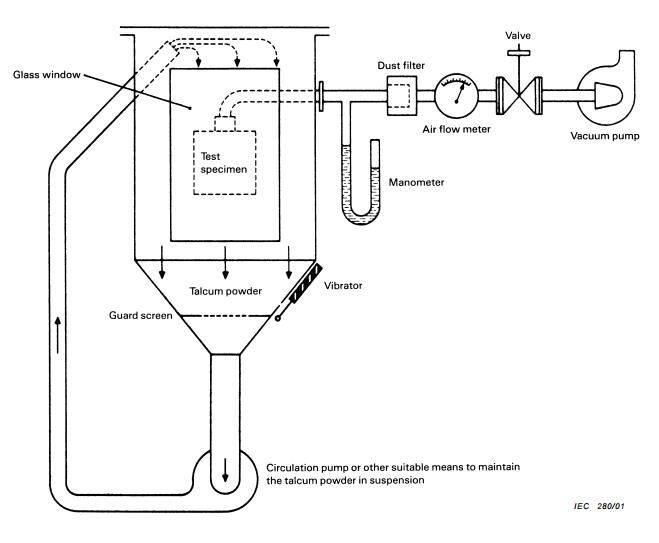

Dust chamber is for IP5X and IP6X testing, the powder shall be able to pass through a square-meshed sieve the nominal wire diameter of which is 50μm and the nominal width of a gap between wires 75 μm.
IP5X dustproof test chamber: the protection is satisfactory if the power has no accumulated in a quality which may interface the correct operation and cause harmful to equipment.
IP6X dustproof test chamber: the protection is satisfactory if no deposit of dust is observable inside the enclosure at the end of the test
Features:
1. Adopts LCD color display and touch screen. The PLC is made by Panasonic.
2. The shell of the equipment adopts 304B stainless steel.
3. Sand and dust: Dry powder, portland cement paste and etc.
4. Control system: adopt Programmable Time Controller.
5. Safety device: leakage protection, overheat protection
Model |
PG-SC-100 |
PG-SC-225 |
PG-SC-500 |
PG-SC-1000 |
Working dimension(mm) |
400*500*500 |
500*600*750 |
800*800*800 |
1000*1000*1000 |
Working power |
AC 220V±10%, 50Hz |
|||
Temperature range |
RT~+40℃ |
|||
Relative humidity |
45%~75% (can not be displayed) |
|||
Temperature evenness |
≤2℃ |
|||
Temperature fluctuation |
≤±0.5℃ |
|||
wire diameter of metal net |
50μm |
|||
Wire interval |
75μm |
|||
Airflow velocity |
≤ 2.5m/s |
|||
Time range |
1S~999H (adjustable) |
|||
Vibration time |
1S~999H (adjustable) |
|||
Dust concentration |
2~4kg/m3 |
|||
Vacuum |
0~10Kpa (adjustable) |
|||
Pumping speed |
0~6000L/h (adjustable) |
|||
Sand and dust |
Dry powder, portland cement paste |
|||
Power socket for EUT |
IP66, 220V/16A |
|||
Circulatory system |
Dust recycling |
|||
Powder spraying and dust reduction method |
Free |
|||
Working condition |
Temperature:15℃～35℃, humidity:≤85%R.H. |
|||
Configuration |
Observe window equip with window wiper, lamp, metal sieve, 2KG talcum powder and etc. |
|||
Power supply |
1.5KW, AC220V±10%, 50Hz |
|||
