LAIRD Tflex HD7.5 Thermal Gap Filler

FEATURES AND BENEFITS

1. 7.5 W/mK thermal conductivity

2. Low pressure versus deflection

3.  Minimizes board and component stress

4. Low Outgassing and oil bleeding

5. Large tolerance applications

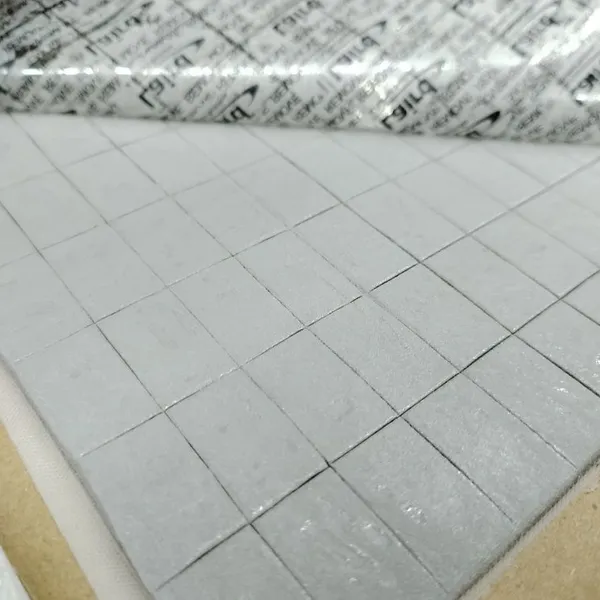

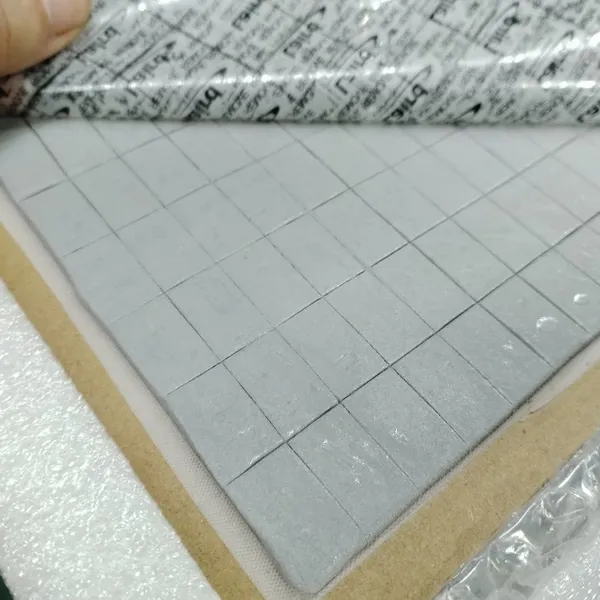

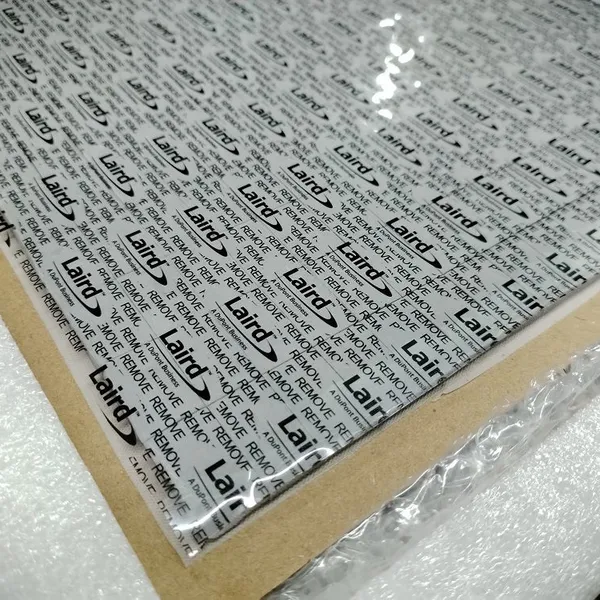

Laird  Tflex HD7.5 gap filler is a new developed very soft silicone material in our high deflection  series.

With a thermal conductivity of 7.5W/ mk, Tflex HD7.5 is designed to provide superior  pressure versus deflection characteristics.

The material will provide minimal stress on components  during application while maintaining low thermal resistance.

As a result, less mechanical and thermal  stresses will be experienced within your device.

LAIRD Tflex HD7.5 gap filler is available in thickness from 1mm (0.040”) to 5mm (0.200”).
