LAIRD Tpcm 585 Phase Change Material

FEATURES AND BENEFITS

•  Low total thermal resistance (0.013°C-in2 /W at 50 psi)

•  Inherently tacky and easy-to-use – no adhesive required

•  High reliability

•  Meets all environmental requirements including RoHS

•  Provides high value price / performance point

LAIRD Tpcm585 Series is a high-performance thermal phase change material (PCM) designed

to meet the thermal reliability and price requirements of high-end thermal applications.

The Series is inherently tacky, flexible and exceptionally easy-to-use. The Tpcm 580 Series is

available in four thicknesses: 0.003” (LAIRD TPCM 583), 0.005” (LAIRD Tpcm585), 0.008” (LAIRD TPCM 588),

0.010” (LAIRD TPCM 5810) and 0.016” (LAIRD TPCM 5816).

At temperatures above its transition temperature of 50°C (122°F), the Tpcm 580 Series

begins to soften and flow, filling the microscopic irregularities of the components it comes

into contact with. The result is an interface with minimal thermal contact resistance. Due to

the gradual change in viscosity (softening), it minimizes migration (pump-out).

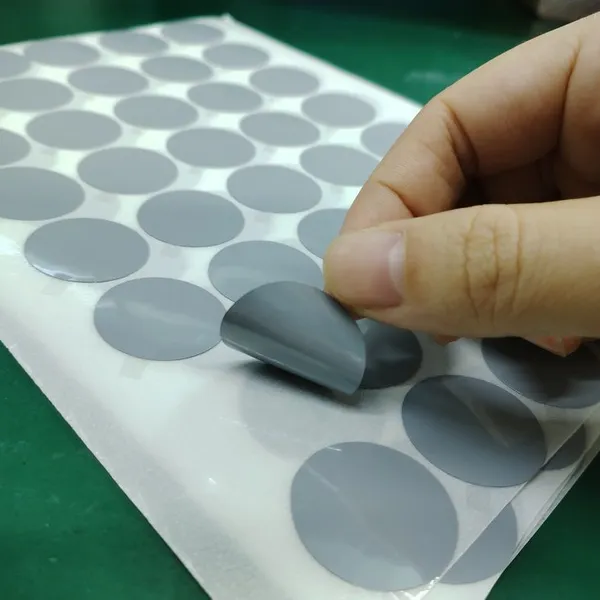

The Tpcm 580 Series can be supplied as cut parts in strips and rolls with top tabbed liners for

easy application. The top tabbed liner can be removed immediately or provide a protective

cover during shipping, and can be removed at assembly. It can also be supplied in sheets and

custom die-cut configurations; and meets all environmental requirements including RoHS.

TPCM 580 FEATURES AND BENEFITS

• Low total thermal resistance

(0.013°C-in 2 /W at 50 psi)

• Inherently tacky and easy-to-use –

no adhesive required

• High reliability

• Meets all environmental

requirements including RoHS

• Provides high value price

/ performance point

APPLICATIONS

• Microprocessors

• Chipsets

• Graphic processing chips

• Custom ASICS

STANDARD PACKAGING

Sheets: 9” x 9” (228.6 mm x 228.6 mm)

18” x 18” (457.2 mm x 457.2 mm)

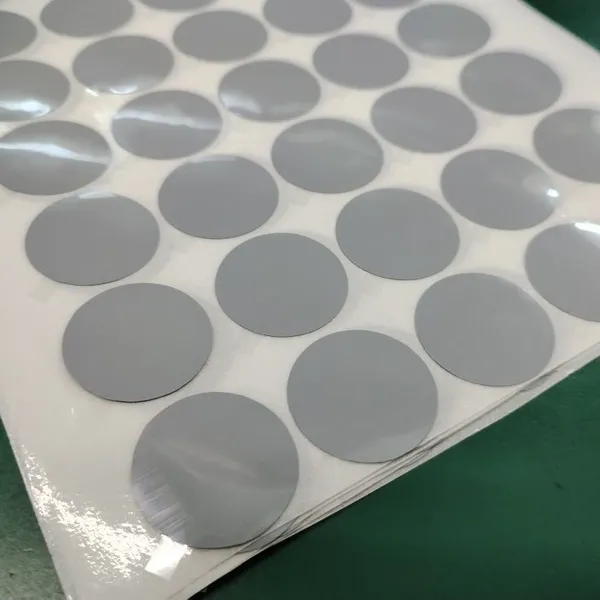

Cut Parts: On strip with top tabbed liner

Individual cut through
