CNC Automatic Aluminum Cutting Machine

CNC Automatic Aluminum Cutting Machine is a fully auto circular saw cutting machine to cut aluminum profiles precisely and efficiently. This type of machine incorporates the use of computer numerical control (CNC) technology and a servo feed system to ensure accurate and consistent cutting of aluminum profiles. The servo feeding system in this type of machine is responsible for moving the aluminum profile to the cutting position and then feeding it through the cutting head. The servo feeding system is controlled by computer, which ensures that the profiles are fed into the machine at the correct speed and precise distance. This results in consistent and accurate cuts every time.

• CE License: Yes

• Control Type: CNC Automatic / Servo Feeding

• Clamp Type: Air Cylinder Vertical+ Horizontal Clamp

• Cutting disc Feed type: Servo Horizontal Feeding

• Cutting Motor Power:  5.5KW

• Cutting Motor rotation speed:  2800rpm

• Suitable Cutting Disc:  Outer diameter 355/405/455/500/550 Inner diameter 30

• Max. Cutting Height: 160mm

• Max. Cutting Width: 350mm

• Single-time Feeding Stroke: 1350mm

• Feeding Accuracy: +/-0.1mm

• Cutting Accuracy: +/-0.1mm

• Cutting angle: 90 degrees(fixed)

• Material feeding servo motor: 0.75KW

• Cutter feeding servo motor: 0.75KW

• Air Pressure: 0.5-0.8MPA

• Cutting Table size: 600x550mm

• Cutting table height: 880mm

• Machine Dimension: 2900x1480x1420mm

• Weight: 1100KGS

CNC (Computer Numerical Control) automatic aluminum cutting machines are used to cut aluminum material precisely and efficiently using computer-controlled software. Some applications of CNC automatic aluminum cutting machines include:

Aerospace Industry: The aerospace industry requires precise cutting of aluminum sheets, panels, and other parts. CNC automatic aluminum cutting machines can be used to cut parts such as wing skins, fuselage frames, and engine parts.

Automotive Industry: CNC automatic aluminum cutting machines can be used to cut aluminum parts such as engine blocks, cylinder heads, and suspension components.

Architecture and Construction: CNC automatic aluminum cutting machines can be used to cut aluminum panels and sheets for building facades, roofing, and cladding.

Electronics Industry: CNC automatic aluminum cutting machines can be used to cut aluminum parts for electronic enclosures, heat sinks, and other components.

Medical Equipment: CNC automatic aluminum cutting machines can be used to cut aluminum parts for medical equipment such as surgical instruments and diagnostic equipment.

Furniture Industry: CNC automatic aluminum cutting machines can be used to cut aluminum parts for furniture such as table legs, chair frames, and support structures.

Sporting Goods Industry: CNC automatic aluminum cutting machines can be used to cut aluminum parts for sporting goods such as bicycles, golf clubs, and tennis rackets.

Overall, CNC automatic aluminum cutting machines are widely used in various industries that require precise and efficient cutting of aluminum material.

For economic consideration, Semi Auto Saw Cutting Machine is available always.

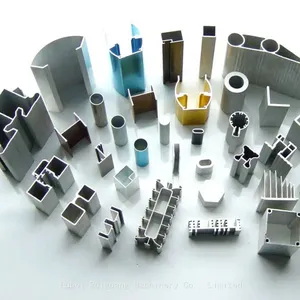

CNC automatic aluminum profile cutting machine uses a powerful 5.5Kw motor to drive the saw blade, which can cut aluminum profiles and solids with a maximum size of 160x350mm and different thicknesses. Adopting double servo system, both feeding and cutting feed are under servo control, easy to operate and easy to maintain. The use of multiple sets of clamp cylinders ensures that the workpiece does not move during cutting, resulting in a smooth cutting surface. Through the touch screen operation, no additional computer equipment is required, just input the raw material length of the product and the length to be cut, and the machine can run automatically. It can help production enterprises improve efficiency, ensure accuracy, and save labor costs at the same time.

The CNC technology used in these machines allows precise control of the cutting process. The operator enters the required specifications into the computer, such as the length of the raw material to be cut, the number of cuts, and the length of each segment, and the machine automatically performs the cutting process. The CNC system ensures cutting with high precision and consistency, resulting in high-quality finished products.

Servo-feeding CNC automatic aluminum cutting machine is a high-precision and high-efficiency equipment, which is very suitable for construction, construction, manufacturing, and other industries that require precision cutting of aluminum profiles.

Some of the key features of the Servo Feed CNC Automatic Aluminum Cutting Machine include:

High cutting precision: Servo feed system and CNC technology ensure high cutting precision, accurate finished size and angle.

Efficient Production: The automatic cutting process enables efficient production, the machine is able to cut several profiles at a time according to its capacity.

Less waste: Precise cuts and consistent results help reduce waste and minimize errors in production.

Versatile Cutting Capability: The machine can cut aluminum profiles into a variety of shapes and sizes, allowing the production of custom components.

Servo-feeding CNC automatic aluminum cutting machine is a high-precision and high-efficiency equipment, which is very suitable for industries that require precision cutting of aluminum profiles such as building doors and windows, aluminum frames, aluminum furniture, and manufacturing.

• Powerful: Powerful cutting motor ensures stability and durability.

• Powerful Motor: Powerful 5.5KW cutting motor ensures stability and durability.

• Cutting capacity: CNC automatic aluminum profile cutting machine can cut aluminum profiles up to 160x350mm, and can cut aluminum profiles of various shapes.

• Safety features: CNC automatic aluminum profile cutting unit is protected by a protective cover, which can isolate aluminum chips and noise, avoid touching dangerous areas with human hands, and ensure the safety of operators.

• High precision: The whole machine is processed by gantry milling to ensure that the installation surface is completely flat, ensuring the accuracy and durability of the machine. High-precision servo motor is used to feed the material, and the dimensional accuracy can reach 0.1mm.

• High efficiency: The processing capacity of the machine is strong, and it can cut the whole bundle of materials at one time, and the efficiency is more than 10 times that of manual cutting.

• Easy to operate: The CNC automatic aluminum profile cutting machine is controlled by a touch screen, through which each part of the machine can be controlled to move independently, and the machine can also be controlled to run automatically. The operating system is specially customized for the aluminum profile-cutting machine, with simple pages and easy operation.

• Cutting coolant: The aluminum profile cutting machine is equipped with a cooling water pump, which automatically sprays out cutting coolant to protect the saw blade during cutting and prevent aluminum chips from adhering to the saw blade, which can effectively prolong the life of the saw blade and obtain better cutting Effect. cut quality.

• Vacuum cleaner: Optional vacuum cleaner is used to collect aluminum shavings to ensure that the workshop is clean and tidy, and to prevent metal shavings from being polluted.

• Low Maintenance: An automatic lubricating oil pump is installed on the machine, which automatically injects lubricating oil to the rails and sliders every 4 hours, without manual maintenance.

• Warranty: The aluminum profile cutting machine is guaranteed for 24 months and a life-long after-sales service.
