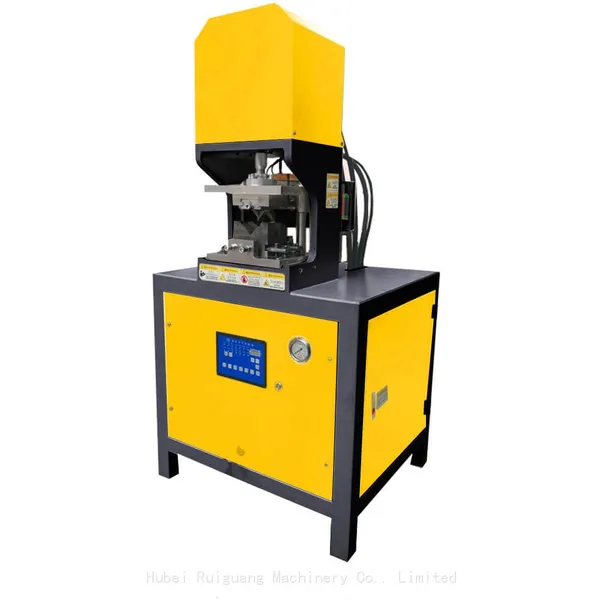

90° Angle Pipe Notching Machine is a hydraulic machine for cutting the right-angle, also known as the right-angle punching machine. Other arc punching dies at any angle can also be customized according to requirements. The traditional process is to cut the pipe to make two 45-degree angles and then weld the two 45-degree pipes together. The automatic right angle cutting machine can punch out the right angle at one time, which greatly simplifies the operation steps, saves labor, and is safe and worry-free. The operator manually feeds the pipe, then steps on the foot pedal, the hydraulic cylinder pushes the slotting knife to punch down, and the horizontal hydraulic cylinder drives the cutting knife to move forward and backward to cut the square pipe into a 90-degree angle.
90° Angle Pipe Notching Machine ParametersCE Certificate: YES
Control: Electric
Capacity: 40 actions/min
Accuracy: ±0.05mm
Quantity of notching molds: 1 Set or More
Driven power: Hydraulic
Motor: 5.5Kw
Net weight: About 600Kgs
Dimensions: 1000x800x1600mm
Voltage: 100-240V /380-415V 3 Phases/ 50/60Hz Customized
90° Angle Notching Machine is workable for notching different angles include 30°, 40°, 60°, 90°.
It is workable for steel guardrail, zinc steel fence, iron guard fence, aluminum alloy shelf bracket, handrail, balustrade, railing, banisters.
Available for different materials, including stainless steel tube, mild steel pipe, iron pipe, copper tube, etc.
Angle Notching Machine could be designed to combine punching workstation, to perform punching job. 2 in 1 Angle Notching Punching Machine
90° Angle Pipe Notching Machine Specifications90° Angle Pipe Notching Machine is a hydraulic machine for cutting the right-angle, also known as the right-angle punching machine. Other notching dies at any angle are also available according to requirements. The traditional process is to cut the pipe to make two 45-degree angles and then weld the two 45-degree pipes together. The automatic right angle cutting machine can punch out the right angle at one time, which greatly simplifies the operation steps, saves labor, and is safe and worry-free. The operator manually feeds the pipe, then steps on the foot pedal, the hydraulic cylinder pushes the slotting knife to punch down, and the horizontal hydraulic cylinder drives the cutting knife to move forward and backward to cut the square pipe into a 90-degree angle.
This notching equipment is customized as needs for different metal notch purposes. This hydraulic notching machine adopts a powerful hydraulic cylinder with an 80mm or 125mm cylinder diameter.
FeaturesIt adopts different notching molds. Reasonable design notch and die set, to prevent the scratch on the tube surface. Gantry milling process the machine punching molds base to ensure high precision performance. notching power is driven by the hydraulic unit with an auto-cooling system. This machinery is a manual notching machine which available for the most convenient operation and economic consideration.
No scratch on the surface of metal tube and pipe, reasonable designing notch and die set to preventing scratch, auto wiping system removes metal filings.
High precision. Gantry milling process the machine punching molds base to ensure high precision performance. High-quality guides rail and transmits gear.
Available for the different distances of holes notching.
Hydraulic-driven, step-less pressure regulation.
One set of notching machines will workable for different shapes of holes notching, by replacing customized notch and die set.
Manual feed for easy maintenance and cheap notching machine consideration.
Durable hydraulic cylinder, best quality hydraulic hose.
Notcher and die set are made by SKD11 with a temper.
24 months warranty for notching machine, 6 months for notcher and die set.
