Pipe End Pressing Machine
- 999 Set / Sets per Month
- T/T
Product Details
Brand Name: | Ruiguang | Place of Origin: | China | Certification: | CE |
After-sales Service Provided: | Overseas service center available | Warranty: | 2 YEARS | Condition: | New |
CNC or Not: | Normal | Power Source: | Hydraulic |
Product Description
Pipe End Pressing Machine is a multi-function hydraulic press machine with one workstation, by changing different molds, it is workable for several functions such as pipe hole punching, pipe end notching, end pressing, pipe cutting, etc. It is an affordable and economical solution. Which driven by the electrical motor, hydraulic power, manual feeding pipe by workers.
Pipe End Pressing Machine ParametersCE Certificate: YES
Control: Electric
Capacity: 30 pcs/min
Accuracy: ±0.30mm
Cylinder diameter: 63mm, 80mm, 100mm, 125mm, 140mm, 180mm, 220mm
Max. punching press: According to pipe material, pipe thickness, hole size, etc.
Workstation quantity: As Per Requirement
Punching molds quantity: As Per Requirement
Driven power: Hydraulic
Voltage: As Per Requirement
Available materials: Stainless steel tube, Mild Steel pipe, Iron pipe, Aluminum profile, etc.

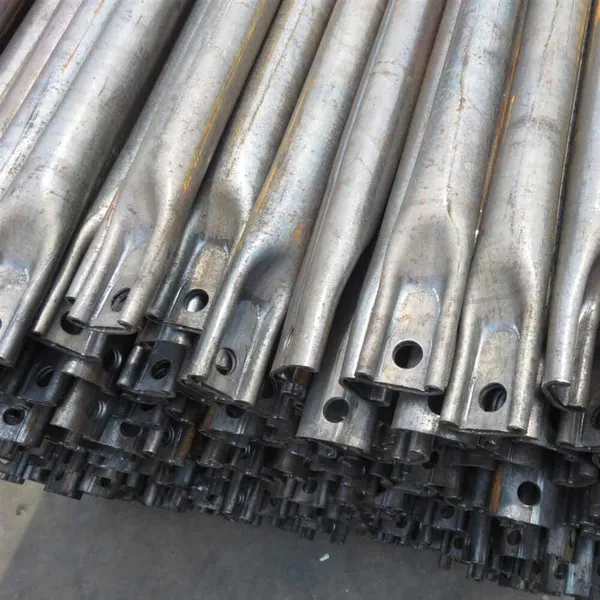

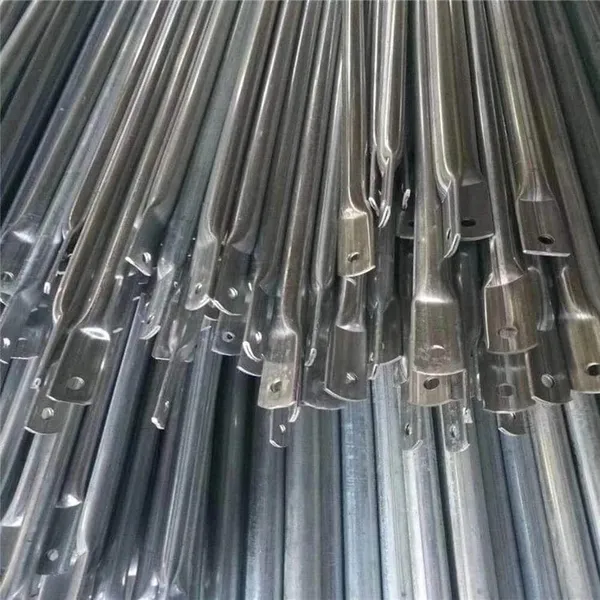

This model is workable for punching holes for steel guardrail, zinc steel fence, iron guard fence, aluminum alloy shelf bracket, handrail, balustrade, railing, banisters.
Available for different materials, including stainless steel tube, mild steel pipe, iron pipe, copper tube, etc.
4 workstations punching machine is also available here. 4 Workstations Pipe Hole Punching Machine

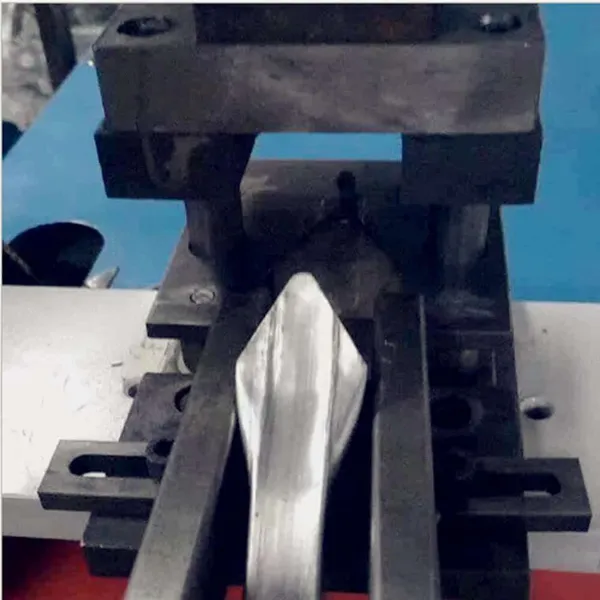

Pipe End Pressing Machine SpecificationsPipe End Pressing Machine adopts a reasonable design end pressing molds, to press and cut the pipe end in arrow by one shot. Gantry milling process the machine punching molds base to ensure high precision performance. There is an auto cooling system in hydraulic station. This machinery is an electric hole punching machine available for the most convenient operation and economic consideration.
According to customers’ needs and requirement, different customized punching molds is workable for different pipe notch and hole punching, end pressing, pipe cutting, end notching purposes. This machine adopts a powerful hydraulic cylinder with 63mm, 80mm, 100mm, 125mm, 140mm, 180mm, 220mm cylinder diameter.
FeaturesPressing and Cutting pipe end in one shot.
One hydraulic cylinder, will adopt several punches and die set as per requirement.
No scratch on the surface of metal tube and pipe, reasonable designing punching molds to preventing scratch, auto wiping system removes metal filings.
High precision. Gantry milling process the machine punching molds base to ensure high precision performance. High-quality guides rail and transmits gear.
Hydraulic-driven, step-less pressure regulation.
One set of punching machines will workable for different jobs like end pressing, pipe end notching, hole punching, by replacing customized punching molds.
Manual feed for easy maintenance and cheap punching machine consideration.
Durable hydraulic cylinder, best quality hydraulic hose.
The punching molds are made by SKD11 with a temper.
24 months warranty for punching machine, 6 months for punching molds.
