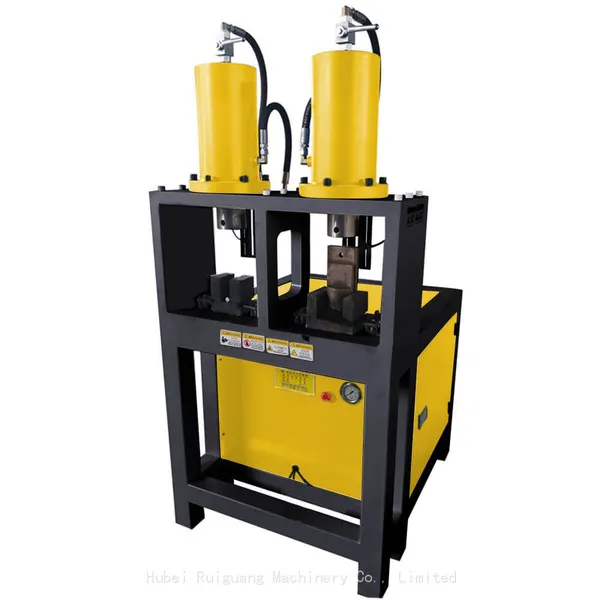

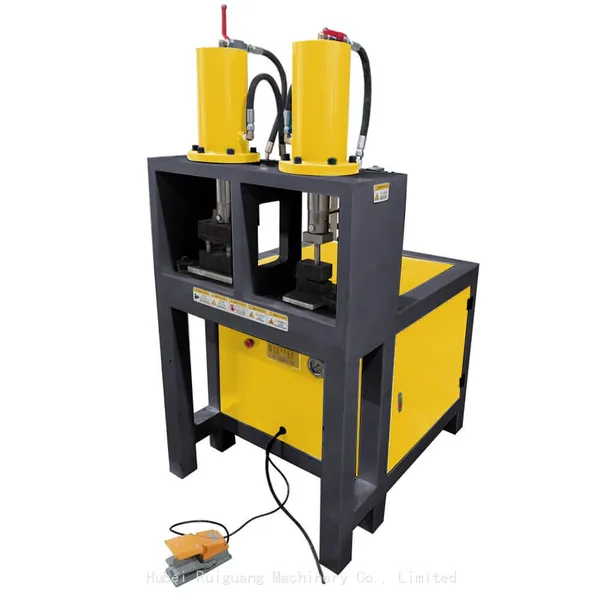

2 Workstations Hydraulic Punching Machine
- 999 Set / Sets per Month
- T/T
Product Details
Brand Name: | Ruiguang | Place of Origin: | China | Certification: | CE |
After-sales Service Provided: | Overseas service center available | Warranty: | 2 YEARS | Condition: | New |
CNC or Not: | Normal | Power Source: | Hydraulic |
Product Description
2 Workstations Hydraulic Punching Machine is a multi-function hydraulic punching machine that has 2 workstations, by changing different moulds, it is workable for several functions such as pipe hole punching, pipe end notching, end pressing, pipe cutting, etc. It is an affordable and economical solution. Which driven by the electrical motor, hydraulic power, manual feeding steel pipe by workers.
2 Workstations Hydraulic Punching Machine ParametersCE Certificate: YES
Control: Electric
Capacity: 45 holes/min
Accuracy: ±0.30mm
Cylinder diameter: 63mm, 80mm, 100mm, 125mm, 140mm, 180mm, 220mm
Max. punching press: According to pipe material, pipe thickness, hole size, etc.
Workstation quantity: As Per Requirement
Punching molds quantity: As Per Requirement
Driven power: Hydraulic
Voltage: As Per Requirement
Available materials: Stainless steel tube, Mild Steel pipe, Iron pipe, Aluminum profile, etc.
Hydraulic Metal Hole Punching Machine is workable for punching holes for aluminum ladders profiles, steel guardrail, zinc steel fence, iron guard fence, aluminum alloy shelf bracket, handrail, balustrade, railing, banisters.
Available for different materials, including aluminum profile, stainless steel tube, mild steel pipe, iron pipe, copper tube, etc.
Available for various shapes of holes punching, including square hole, rectangular hole, D shape hole, triangular hole, oval hole, waist circular hole, prismatic hole, etc.
4 workstations punching machine is also available here. 4 Workstations Pipe Hole Punching Machine
2 Workstations Hydraulic Punching Machine Specifications2 Workstations Pipe Hole Punching Machine adopts different punching molds designing which integrated one. Reasonable design punching molds, to prevent the scratch on the pipe surface. Gantry milling process the machine punching molds base to ensure high precision performance. There is an auto cooling system in hydraulic station. This machinery is an electric hole punching machine available for the most convenient operation and economic consideration.
According to customers’ needs and requirement, different customized punching molds is workable for different pipe notch and hole punching, end pressing, pipe cutting, end notching purposes. This machine adopts a powerful hydraulic cylinder with 63mm, 80mm, 100mm, 125mm, 140mm, 180mm, 220mm cylinder diameter.
Features2 hydraulic cylinders, will adopt several punches and die set as per requirement.
No scratch on the surface of metal tube and pipe, reasonable designing punching molds to preventing scratch, auto wiping system removes metal filings.
High precision. Gantry milling process the machine punching molds base to ensure high precision performance. High-quality guides rail and transmits gear.
Available for the different distances of holes punching.
Hydraulic-driven, step-less pressure regulation.
One set of punching machines will workable for different shapes of holes punching, by replacing customized punching molds.
Manual feed for easy maintenance and cheap punching machine consideration.
Durable hydraulic cylinder, best quality hydraulic hose.
The punching molds are made by SKD11 with a temper.
24 months warranty for punching machine, 6 months for punching molds.
