Rack Shelves CNC Hydraulic Punching Machine

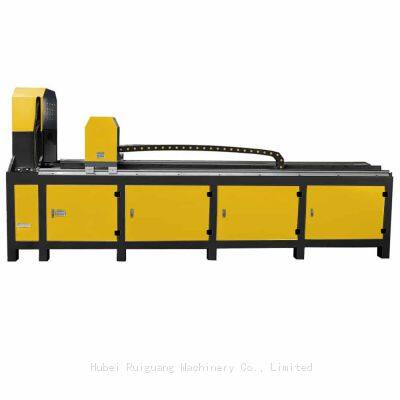

Rack Shelves CNC Hydraulic Punching Machine is an automatic CNC control punching machine, driven by a hydraulic station, which widely used to punch steel tube, stainless steel tube, iron pipe, aluminum alloy, to piercing various shapes of the hole. Workers load pipe in punching molds, the pipe will be automatically fed according to the setting distance, and automatically punch holes in pipes. All parameters like pipe length, hole quantity, hole distance will be set in the PLC control system, the touch screen is available in multi-language. This equipment is prevalent for rack shelves manufacturers on the global market.

• CE Certificate:  YES

• Control:  CNC Automatic

• Capacity:  750 Pcs/8 hours

• Accuracy:  ±0.2mm

• Quantity of Punching molds:  As per requirement

• Max. material thickness:  4mm (Thickness enlarge as per requirement)

• Max. material length:  6000mm (As per requirement)

• Punching rate:  80-180 Times/min

• Driven power:  Hydraulic

• Single Cylinder Max. Punching press: 12 Tons, 15Tons, 20Tons, 25Tons

• Whole Machine Max. Hydraulic Press: 24 Tons, 30 Tons, 40 Tons, 50Tons

• Motor Power:  7.5 Kw/11Kw/18.5Kw

• Voltage:  380-415V 3 Phases 50/60Hz Customized

• Dimensions:  6800x1000x1700mm(As per requirement)

• Net weight:  About 2000 Kg

• Available materials:  Stainless steel tube, Mild Steel pipe, Iron pipe, Aluminum profile, etc.

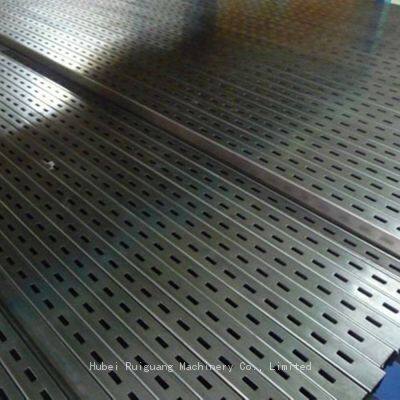

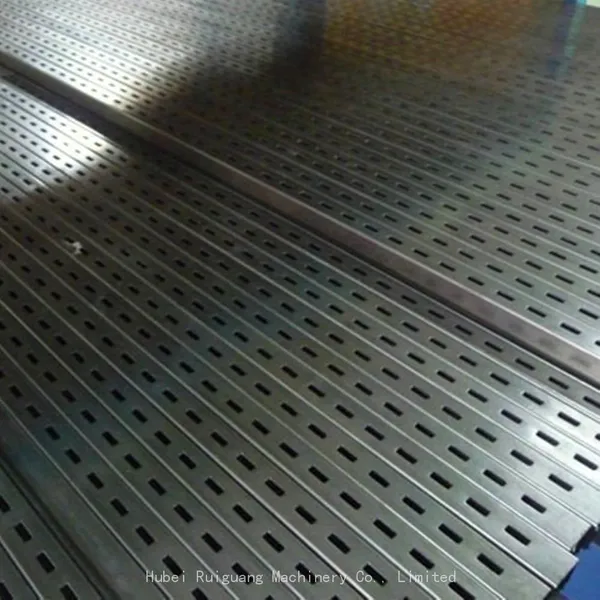

Rack Shelves CNC Hydraulic Punching Machine is workable for punching holes for rack shelves, aluminum ladders profiles, steel guardrails, zinc steel fences, iron guard fences, aluminum alloy shelf brackets, handrails, balustrade, railing, and banisters.

Available for different materials, including aluminum profile, stainless steel tube, mild steel pipe, iron pipe, copper tube, etc.

Available for various shapes of hole punching, including square holes, rectangular holes, D shape holes, triangular holes, oval holes, waist circular holes, prismatic holes, etc.

2 workstations punching machine is also available here. 2 Workstations Hydraulic Punching Machine.

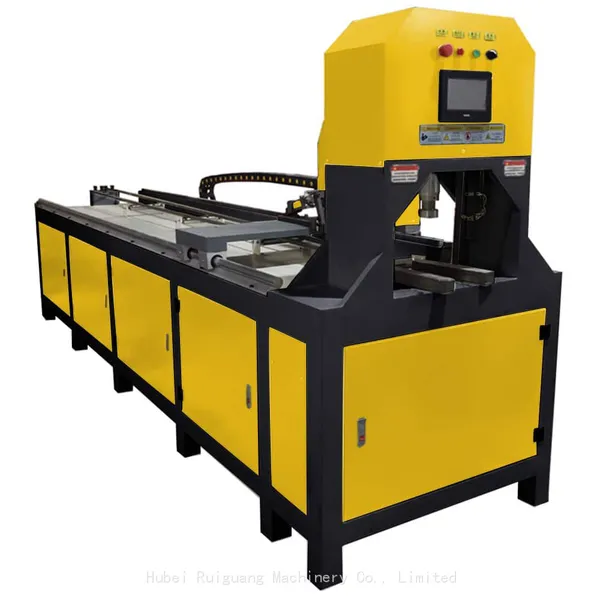

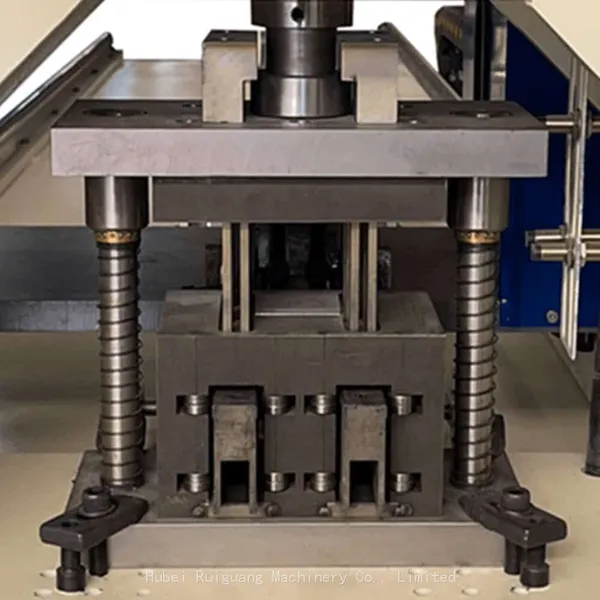

CNC Automatic Hydraulic Hole Punching Machine adopts a PLC control system, and numerical control with an LED touchscreen. The punch machine will mount one set of punching molds. Reasonable design punching molds, to prevent the scratch on the tube surface. Gantry milling process the machine punching molds base to ensure high precision performance. There is an auto cooling system in the hydraulic station.

• No scratch on the steel tube surface, reasonable designing punching molds to prevent scratch, auto wiping system removes metal filings.

• Dual heads, processing two pieces of ladder profiles at one action, can be designed as the single head, 4 heads, and 6 heads, 8 heads as per requirement.

• High precision. Gantry milling process the machine punching molds base to ensure high precision performance. High-quality guides rail and transmits gear.

• Available for the different distances of hole punching, by setting on the touchscreen. Automatic numerical control for saving manpower.

• Hydraulic-driven, step-less pressure regulation.

• One set of punching machines will workable for different shapes of hole punching, by replacing customized punching molds.

• Will perform Automatic cutting functions if equipped with the hydraulic cutting unit.

• Mode selection: Auto/Manual. Single-cylinder/Dual cylinder operation.

• PLC control, time setting, and pressure adjusting.

• Touch screen, visible digital display, full processes monitoring.

• Automatically detect malfunctions, visible alarm list, and alarm reset.

• 24 months warranty for the punching machine, and 6 months for punching molds.
