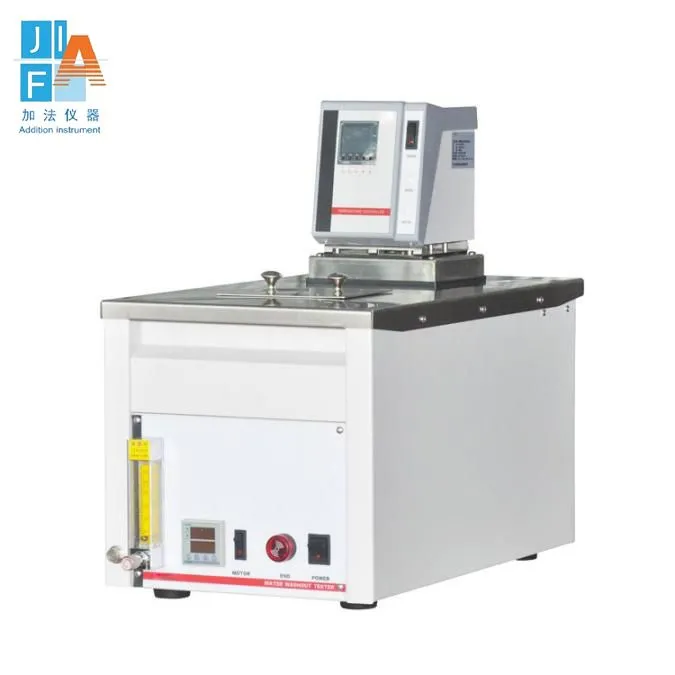

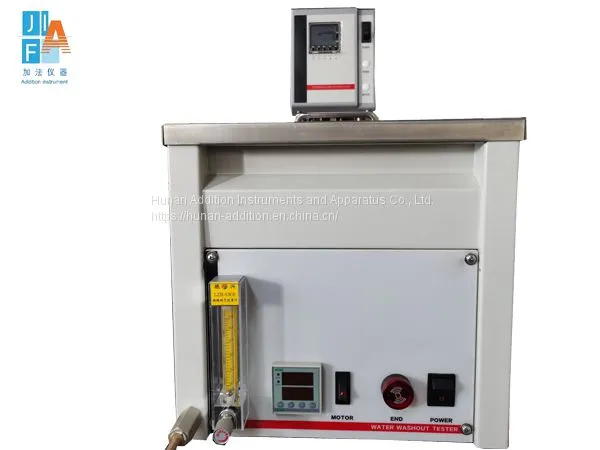

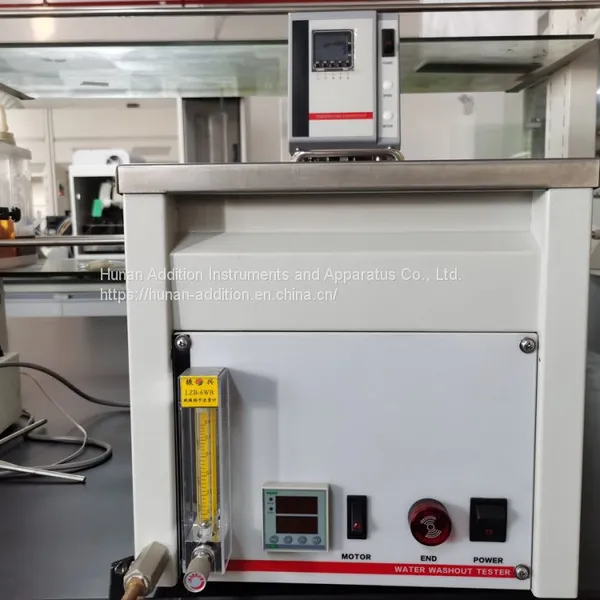

Lubricating Grease Water Washout Characteristics Tester
Product model: JF0109
Introduction
This instrument is used to determine resistance of a lubricating grease to washout by water from a bearing. Under the specified laboratory conditions, when tested at 38°C or 79°C, the characteristics of the grease's resistance to being washed out of the bearing by water are evaluated.
Product Parameter
1. Applicable standard: ASTM D1264, SH/T0109
2. Temperature control accuracy: ±0.1℃
3. Temperature control range: Rt～100℃
4. Normal working temperature: 37.8℃±0.1℃ and 79℃±0.1℃
5. Working speed: 600 rpm ± 30 rpm
6. Capillary flow: 5 ml/s ± 0.5 ml/s
7. Working power supply: AC220V/50HZ
8. Power of the whole machine: 600W
9. Instrument size: 500*360*550mm
10. Net weight: 35KG
11. HS Code: 9027899090
Main Feature
1. One-piece structure, the instrument shell is made of refined steel plate and glazed, durable
2. The test bearing chamber and housing fully meet the requirements of the standard method
3. Stainless steel water tank with inlet and outlet pipes, aluminum bearing chamber, copper chrome-
plated circulating pump, 1/4 HP motor;
4. Stainless steel heater
5. The thermostat of the instrument is an intelligent regulator that integrates temperature control and
display, and is equipped with a microprocessor for PID adjustment.
6. The unique design can not start the test shaft, but start the water pump circulation system alone
7. Fixed speed motor, no need to adjust the speed, the speed is 600rpm;
8. Accurately control the test temperature of 38°C and 79°C in accordance with ASTM standards;
9. The improved connecting shaft can quickly and easily disassemble and assemble the test bearing
and the inner and outer baffles;
