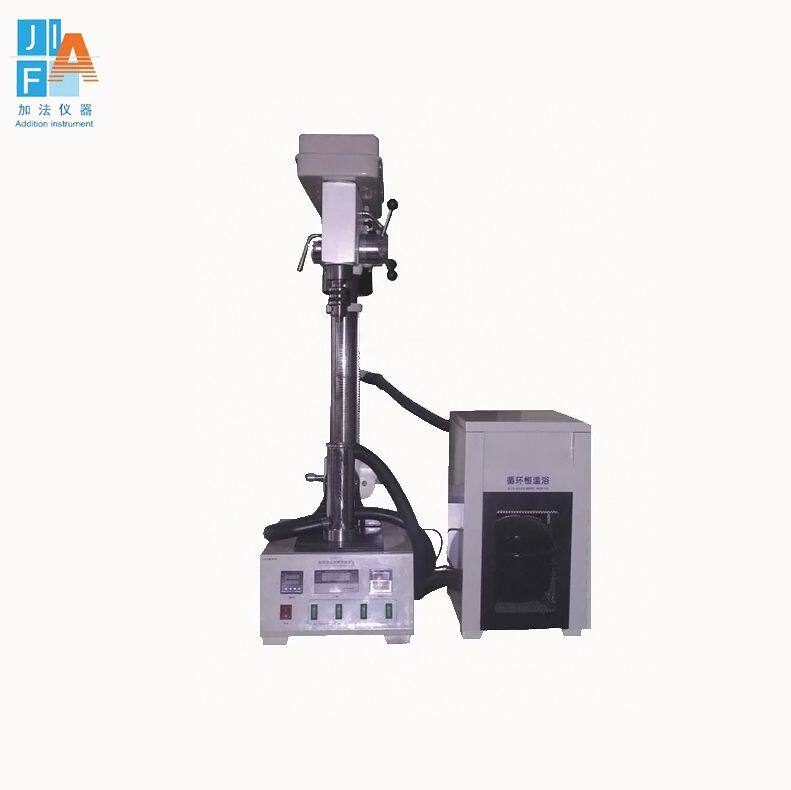

Water Separability of Petroleum Oils Tester

Water Separability of Petroleum Oils Tester

Product model: JF0619

Product Introduction

When using the instrument, add an appropriate amount of sample and distilled water to the conical centrifuge test tube, stir at a certain temperature with a specific stirrer at a specified speed for 30s, and separate the oil-water mixture under the condition of a relative centrifugal force of 700 for 2h. The water separation ability of the oil was evaluated by observing the water layer after centrifugation and the volume of the emulsified layer. This instrument is suitable for marine low-speed crosshead diesel oil and medium-speed tubular diesel oil.

Technical Parameter

1. Applicable standard: SH/T0619

2. Temperature control method: PID temperature controller

3. Temperature control range: 18℃ ± 2℃

4. Refrigeration method: Compressor refrigeration

5. Timing method: Digital display counter

6. Speed display: Digital tachometer

7. Circulation mode: Magnetic pump circulation

8. Power of the whole machine: 1500W

9. Working power supply: AC220, 240V/50, 60HZ

10. HS Code: 9027899090

Performance characteristics

1. The sample preparation table and the circulating water bath have a separate structure, and the circulating water bath adopts a cold and hot comprehensive temperature balance temperature control system to ensure that there is no deviation in the test temperature;

2. Low-noise imported motor, digital tachometer, high-precision speed regulator;

3. Four-digit timer, convenient and accurate timing;

4. Microcomputer temperature controller, digital display, accuracy ±1℃ PT100 sensor;

5. Fully enclosed compressor refrigeration to ensure the supply of cooling capacity;

6. The evaporator is placed in a stainless steel cold tank;

7. There are holes for adding medium on the refrigerator;

8. The magnetic pump circulates the cooling medium;

9. The silicone tube is covered with a thermal insulation sleeve to prevent flow loss;

10. Split structure, easy to move.
