Auto Lubricant Anti-Wear Performance Tester
(Four-Ball Wear Test Machine)
Product model: JF3142
Product Introduction

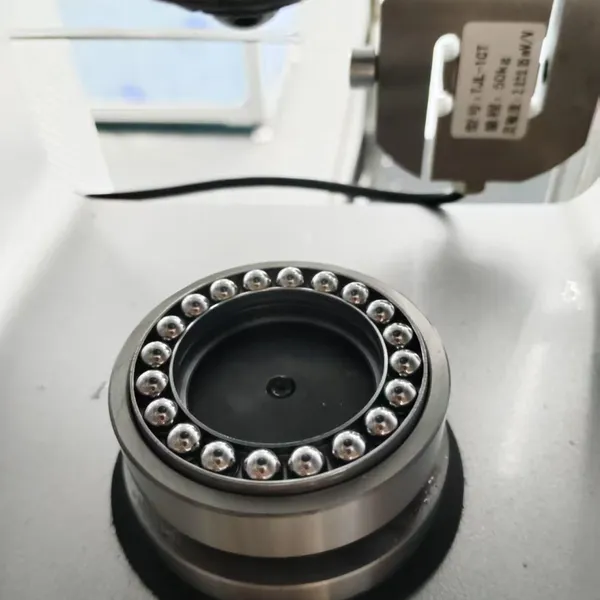

This machine adopts four ф 12.7mm standard steel balls, in the form of sliding friction, under the condition of point contact pressure, evaluate the bearing capacity and anti-wear performance of lubricant (including oil film strength PB, sintering load PD, comprehensive wear value ZMZ, long-term wear D and other indicators). It can also determine the influence of temperature on lubricant lubrication performance.
Product parameter
1. Applicable standards: ASTM D2266, ASTM D2596, ASTM D2783, ASTM D4172
2. Maximum test force: 10000N
3. The maximum test force below 4%, the value error: ±5N
4. The maximum test force of more than 4%, relative error: ± 1%
5. The maximum friction: 200N
6. Temperature range: Rt ~ 250℃
7. Temperature control accuracy: ±3℃
8. Speed range: 300~1800r/min
9. Speed accuracy: less than 15r/min
10. Test oil volume: 10ml
11. Diameter of steel ball: φ12.7
12. Motor power: 2.2KW
13. Testing machine time display and control range: 1S~ 999min
14. Spot measurement accuracy: 0.001mm
15. Magnification of measuring microscope: 25× 200
16. Grinding spot measurement range: 0 ~ 10mm
17. Spot measurement software: automatically capture spot, save and measure the average value
18. The test force loading mode: front-load weight loading
19. Force holding mechanism: self-balancing and no gap guiding
20. The relative error of friction value should not be greater than: ±2%

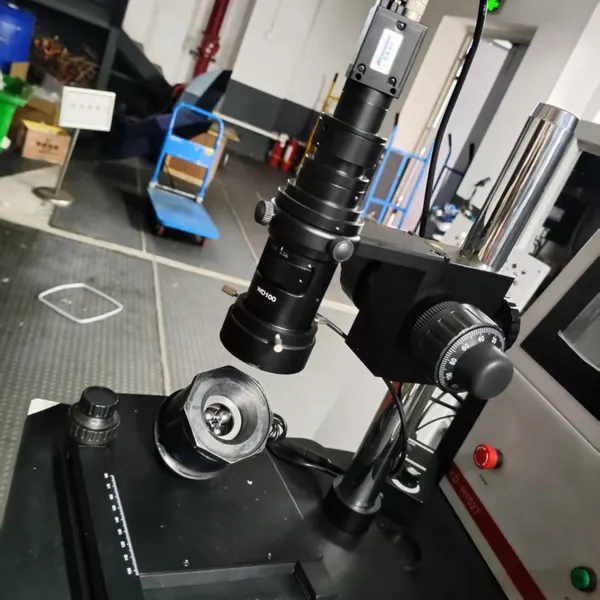

21. Spot measuring microscope: electronic measuring system
22. Size: 1200×490×1220 (mm)
Main features
1. Adopt double floating bearing technology, no clearance guiding technology and buffer cross balance technology to ensure the accuracy of real-time tracking measurement of test force and friction;

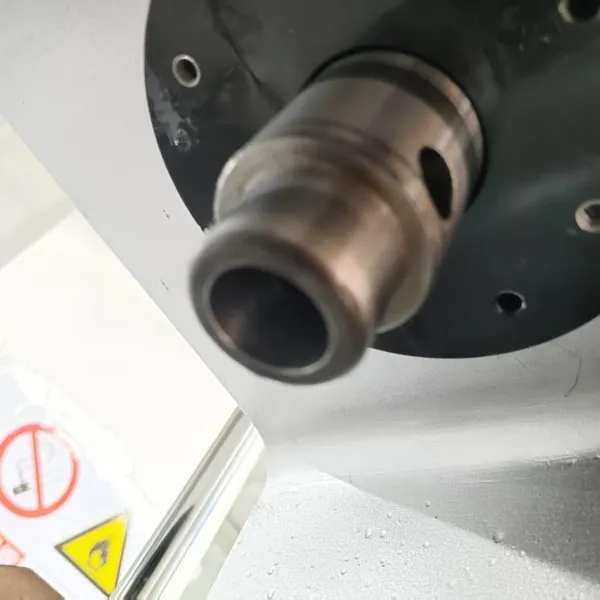

2. The brand servo motor drive spindle, the relevant transmission parts also use high quality bearings;
3. The use of independent embedded industrial controller, industrial metal touch screen, acquisition of independent analysis module, effectively ensure the impact of high-speed equipment or oil film rupture violent vibration on the control part of the performance;
4. It is convenient to capture the spot, measure and analyze the topography of the friction surface, and directly save the spot image;
5. The testing software can establish test schemes according to different standards, and judge Pb values according to the size of grinding spots. It has the function of saving and exporting data tables.
6. Big screen touch operation, real-time dynamic acquisition, data processing
7. Spindle expandable friction pair to meet a variety of relevant standards
8. Lengthened guide shaft, double bearing support, accurate test force, stable and reliable
9. The special weight stop groove, prevent the weight accidentally fall off caused by damage
10. 3 million digital CCD probe pixels
