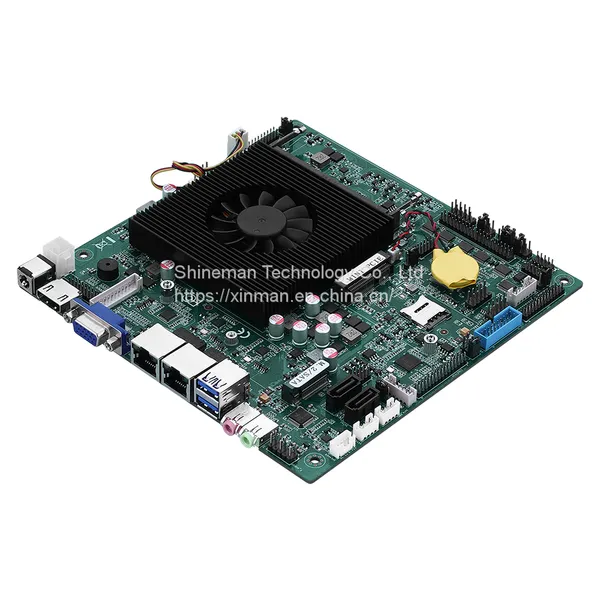

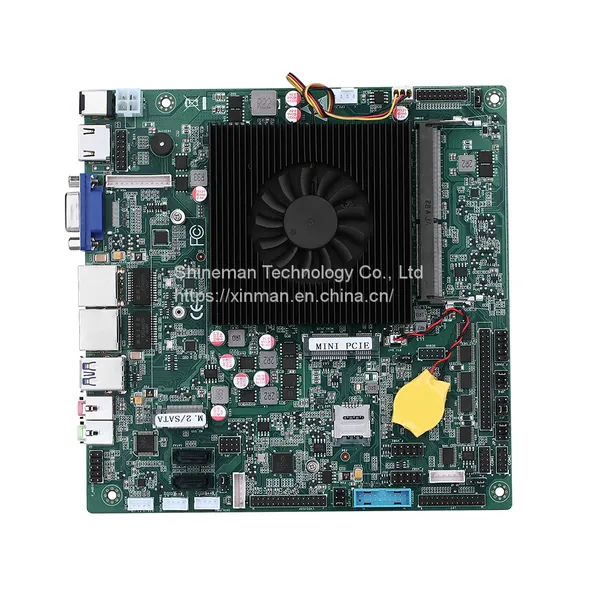

Intel Pentium N6415 Embedded ITX PC Industrial Computer Motherboard 2 Gigabit LAN 2 RJ45 6 COM RS232/485
Spotlight Features
●Soldered down Intel Elkhart Lake Celeron/Pentium Processor
●Integrated Intel UHD Graphics
●With HDMI,VGA/DP,LVDS/eDP,Supports Triple Display
●Single CHs DDR4,Max.32G/3200MHz
●1*mPCIE，Supports WIFI/4G/5G Module
●1*M.2 Key M，Supports 2242/2280 SSD
●2*Gigabit LAN，10/100/1000 Base-Tx Gbe Compatible
●Realtek ALC897 5.1 Channels HDA Codec
●16bit Programmable GPIO
●12V Power supply
Specification
Processor |
Intel Elkhart Lake J/N Series,TDP 10W/6.5W |
Graphics |
Intel UHD Graphics |
Display |
1*VGA Port/DP(Option） |
1*HDMI1.4, Max Reslution 4096X2160@30Hz | |
1*LVDS/eDP(Option） | |
Memory |
1*DDR4 SO-DIMM，Max.32GB DDR4/3200MT/s |
Ethernet |
2*Realtek RTL8111H Gbe， Supports WOL、PXE Boot |
AUDIO |
1*Realtek ALC897，Whit MIC_IN/HP_OUT and Amplifier |
Storage |
1*SATA3.0 |
1*M.2 KEY M，Supports M.2 2242/2280 SATA/PCIE X2 SSD | |
Expansion |
1*mPCIE，Supports WIFI+BT/3G/4G/5G Module |
1*SIM Card Slot | |
Rear Panel I/O |
1*DC_IN |
1*HDMI | |
1*VGA/DP(Option） | |
2*RJ45 | |
2*USB3.0 | |
1*HP_OUT，1*MIC_IN | |
Internal I/O |
2*F_USB2.0 Header，4*USB2.0 Via Internal Header |
1*F_USB3.0 Header，2*USB3.0 Via Internal Header | |
1*SIM Card | |
1*SATA_PWR/1*SATA3.0 6Gbps | |
1*LPT | |
1*CLR_CMOS | |
1*AUTO_ON | |
1*GPIO(16bit） | |
6*COM，COM2 Supports RS232/RS485 Option | |
1*F_PANEL | |
1*F_AUDIO | |
1*LVDS/eDP（Option）/1*INVERT | |
1*PS/2 | |
1*LVDS/eDP_PWR | |
1*SPEAKER | |
1*CPU_FAN，1* SYS_FAN | |
1*ATX_4P | |
BIOS |
64M Flash ROM |
Power Supply |
DC 12V |
OS |
windows10/11/Linux |
Heat Sink |
Smart FAN |
OTR |
-10℃～60℃ |
STR |
-20℃～70℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing
|
Dimension |
170*170mm |
