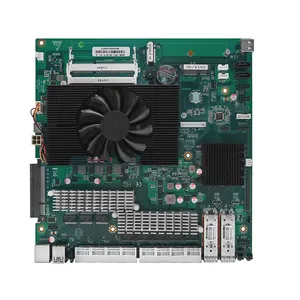

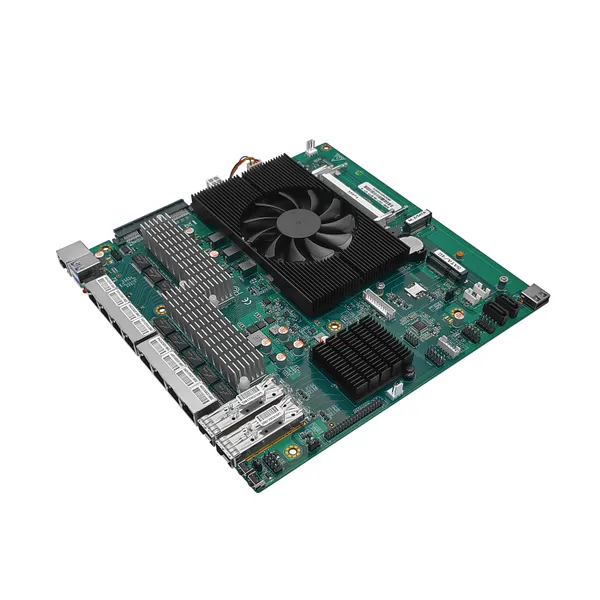

Help CenterIndustrial Network PC Motherboard Intel 4th Gen Core I7/i5/i3 CPU SBC With 8*RJ45 2.5GBe 2*SFP+ 10Gigabyte
Related Products
-
Network Security Management Motherbord Q270 Intel 8th/9th Gen LGA1151 CPU NSM Board With 6 RJ45 2SFP+, 2*PCIe x8 ExpansionNegotiableMOQ: 10 Pieces -
Network Security PC Motherboard Intel Atom 4C4T C3558R CPU 6*RJ45 2*SFP Gbe 2*SFP+ 10G Bypass PCIe x8 Expansion MainboardUS$ 99 - 159MOQ: 500 Pieces
-
Network Appliance J6413 4 Cores CPU 6 RJ45 2.5Gbe LAN 2 SFP 1U Rack Mount Firewall PC for CybersecurityUS$ 225 - 248MOQ: 10 Sets
-
1U Rack Mount Network Hardware Computer Intel Celeron J6412 4-Core CPU 6 RJ45 2.5Gbe LAN Firewall/Router/VPN PfSense PCUS$ 205 - 228MOQ: 10 Sets
-
1U Rack Mount Network Hardware Computer Intel Atom D525 1.8GHz CPU 6 RJ45 Gbe LAN Firewall/Router/VPN PfSense PCUS$ 100 - 150MOQ: 10 Sets
Spotlights
●Intel 4th gen Core i3/i5/i7 FCPGA946 CPU
●2*DDR3L, Max.16G
●8*I226-V 2.5G RJ45, 2*82599 10G SFP+
●1*M.2，2*SATA3.0
●1*mPCIE, supports 3G/4G
●1*PCIE X8 expansion
●12VDC power supply
Specification
Processor |
Intel 4th Gen Core i3/i5/i7 FCPGA946 CPU |
Graphics |
Intel HD Graphics 4600 |
Chipset |
Intel HM87 |
Dsiplay |
1*VGA |
Ethernet |
8*I226-V 2.5G RJ45, 2*Intel 82599 10Gbe SFP+, supports WOL，PXE Boot |
Memory |
2*DDR3L SO-DIMM, Max.16GB |
Storage |
2*SATA3.0 |
1*M.2 (supports NVME/SATA SSD) | |
Expansion |
1*mPCIE，(3G/4G module/SATA SSD, alternative) |
1*SIM card slot | |
1*PCIE X8 | |
|
I/O Interfaces |
2*USB3.0 |
1*RJ45 COM | |
8*Gbe LAN ports | |
2*10Gbe SFP+ ports | |
1*PWR/HDD light | |
1*VGA interface | |
1*CLR_CMOS Jumper | |
1*AUTO_ON jumper | |
1*GPIO interface | |
1*F_PANEL interface | |
1*CPU_FAN interface | |
2*SYS_FAN interface | |
1*4P ATX_12V | |
1*LAN_LED interface | |
3*F_USB interface | |
BIOS |
64M Flash ROM |
Power Supply |
DC 12V |
OS |
Windows7/10/11/Linux/CentOS/Ikuai/ROS/PF Sense |
HeatSink |
Smart Fan |
Operating TEMP. |
-10℃～60℃ |
Storage TEMP. |
-20℃～70℃ |
Humidity |
5%-95% relative, non-condensing
|
Dimension |
230*230mm |
