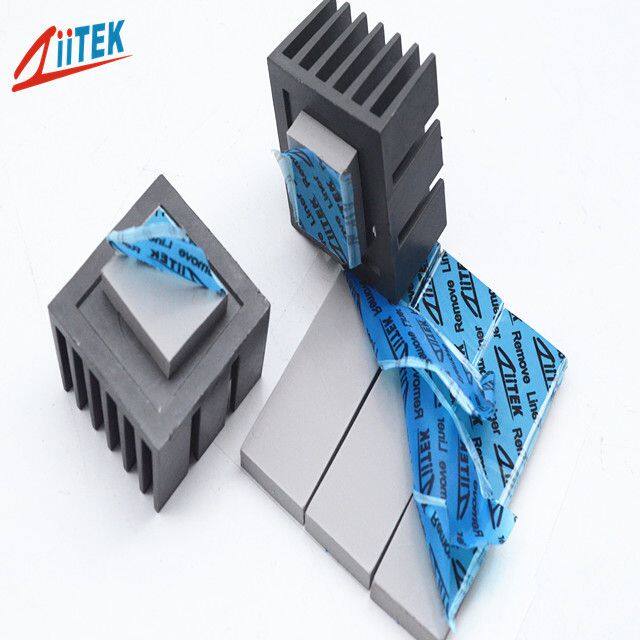

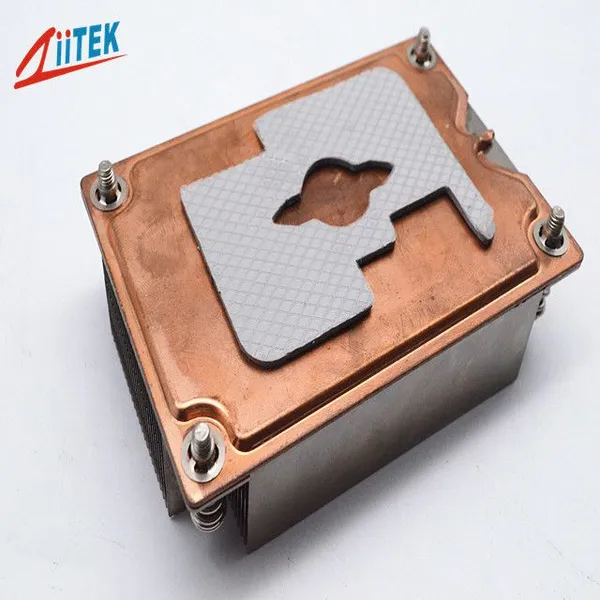

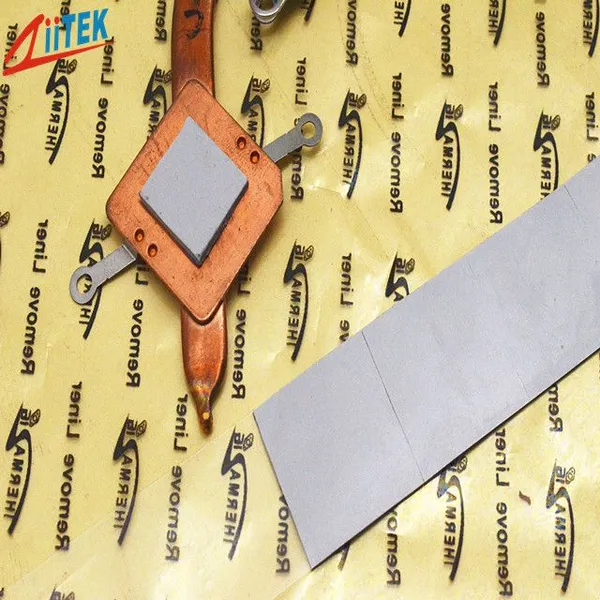

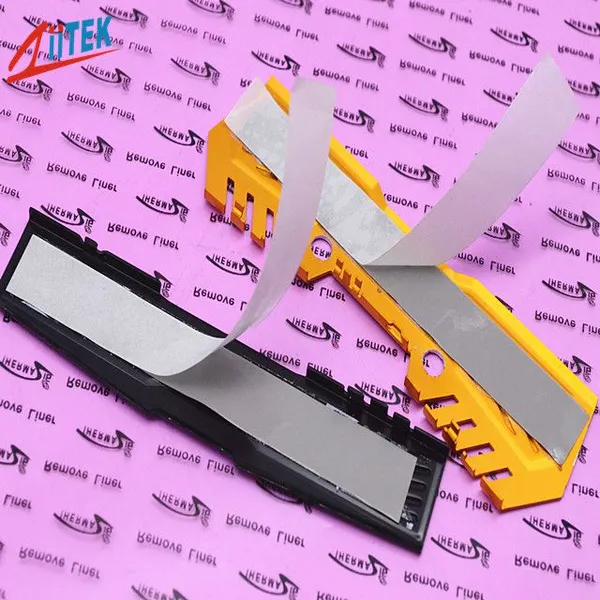

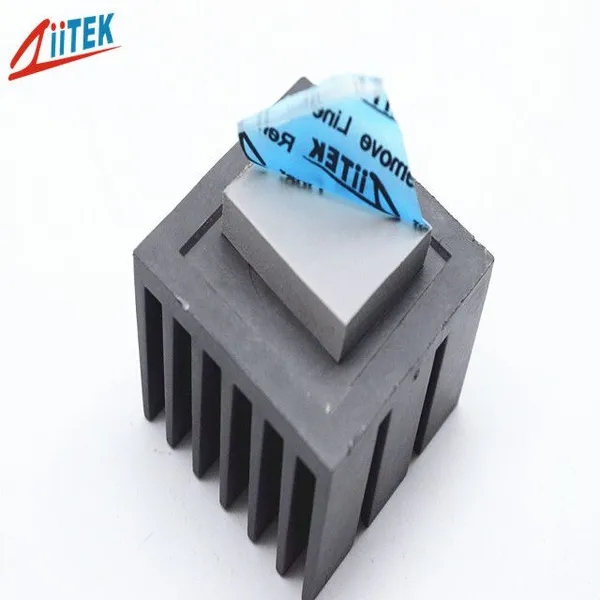

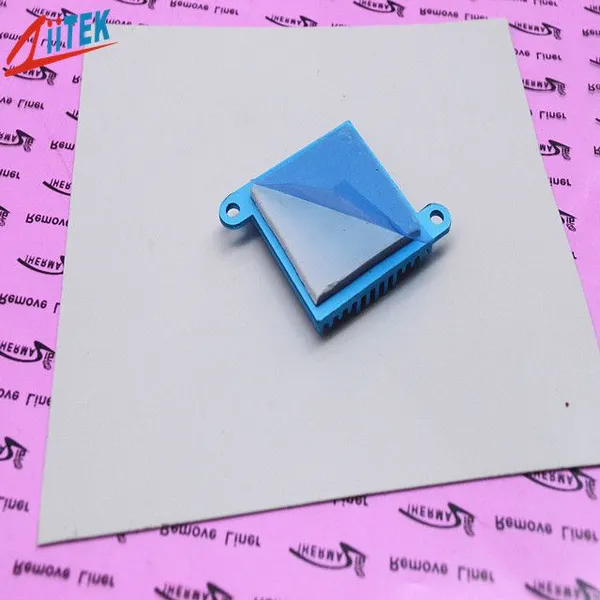

China Silicone Thermal Pad Distributor for LED Lamp CPU GPU Cooling
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Features
Naturally tacky needing no further adhesive coating
Available in varies thicknesses
Broad range of hardnesses available
Applications
Cooling components to the chassis of frame
High speed mass storage drives
Heat Sinking Housing at LED-lit BLU in LCD
LED TV and LED-lit lamps
RDRAM memory modules
Micro heat pipe thermal solutions
Automotive engine control units
Telecommunication hardware
Handheld portable electronics
Semiconductor automated test equipment (ATE)
Typical Properties of TIF720HP Thermal Pad Series | ||||
| Color | Yellow |
Visual | Composite Thickness | hermal Impedance @10psi (℃-in²/W) |
| Construction & Compostion |
Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.57 |
| 20mils / 0.508 mm | 0.71 |
|||
| Specific Gravity | 3.3 g/cc |
ASTM D297 | 30mils / 0.762 mm |
0.88 |
40mils / 1.016 mm |
0.96 |
|||
| Heat Capacity | 1 l/g-K |
ASTM C351 | 50mils / 1.270 mm |
1.11 |
60mils / 1.524 mm |
1.26 |
|||
| Hardness | 45±5 Shore 00 | ASTM 2240 | 70mils / 1.778 mm |
1.39 |
80mils / 2.032 mm |
1.54 |
|||
| Tensile Strength | 48 psi |
ASTM D412 | 90mils / 2.286 mm |
1.66 |
100mils / 2.540 mm |
1.78 |
|||
| Continuos Use Temp | -40 to 160℃ | *** |
110mils / 2.794 mm |
1.87 |
120mils / 3.048 mm |
1.99 |
|||
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm |
2.12 |
140mils / 3.556 mm |
2.22 |
|||
| Dielectric Constant | 4.5 MHz | ASTM D150 | 150mils / 3.810 mm |
2.31 |
160mils / 4.064 mm |
2.41 |
|||
| Volume Resistivity | ≥1.0X10 Ohm-meter |
ASTM D257 | 170mils / 4.318 mm |
2.51 |
180mils / 4.572 mm |
2.58 |
|||
| Fire rating | 94 V0 | equivalent UL |
190mils / 4.826 mm |
2.64 |
200mils / 5.080 mm |
2.72 |
|||
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm),0.020" (0.51mm),0.030" (0.76mm),0.040" (1.02mm),0.050" (1.27mm),
0.060" (1.52mm),0.070" (1.78mm),0.080" (2.03mm),0.090" (2.29mm),0.100" (2.54mm)
0.110" (2.79mm),0.120" (3.05mm),0.130" (3.30mm),0.140" (3.56mm),0.150" (3.81mm),
0.160" (4.06mm),0.170" (4.32mm),0.180" (4.57mm),0.190" (4.83mm),0.200" (5.08mm).
Consult the factory alternate thickness.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What is your terms of payment ?
A: Payment
