Low Volatility Silicone Thermally Conductive Gap Filler Pads For Embedded Motherboard
Products description

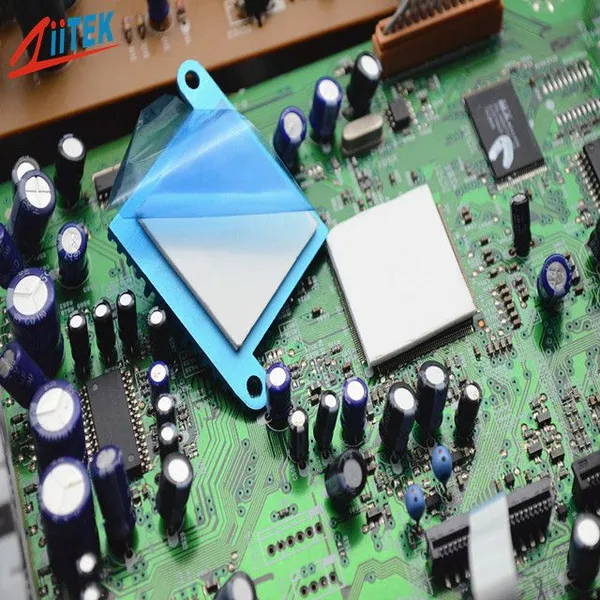

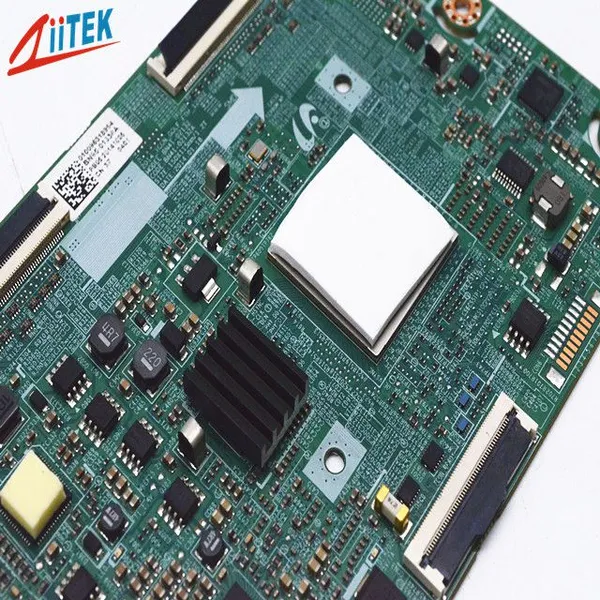

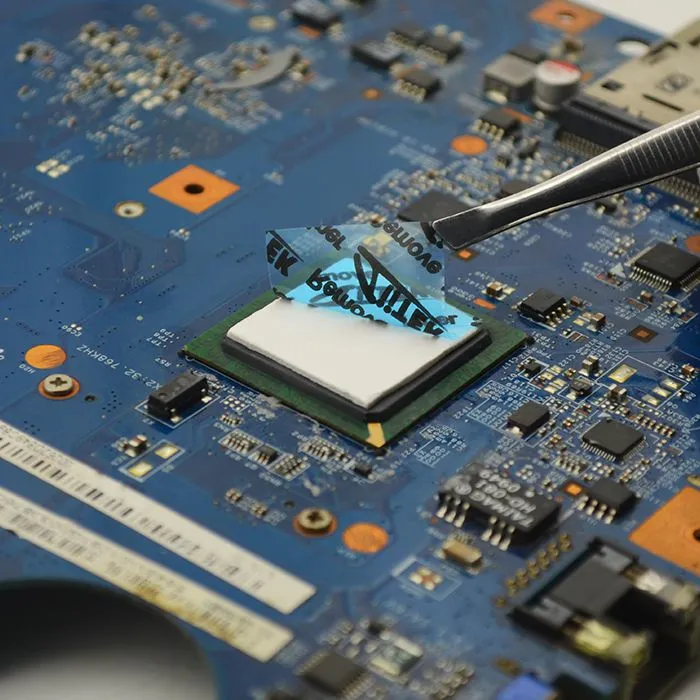

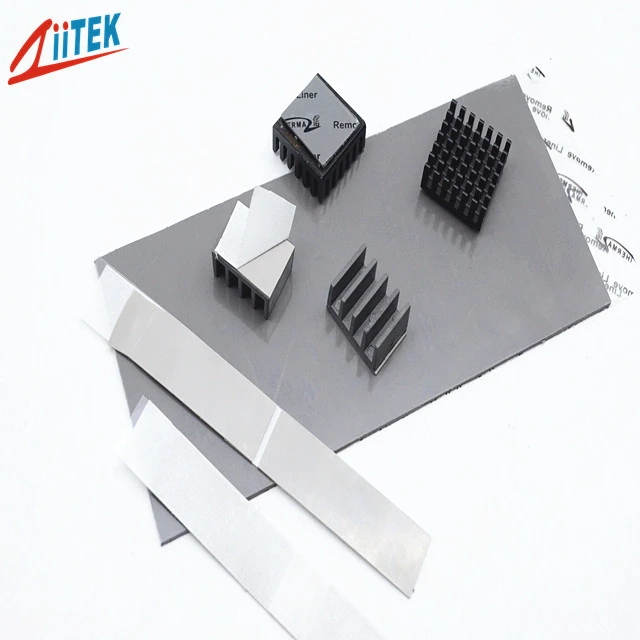

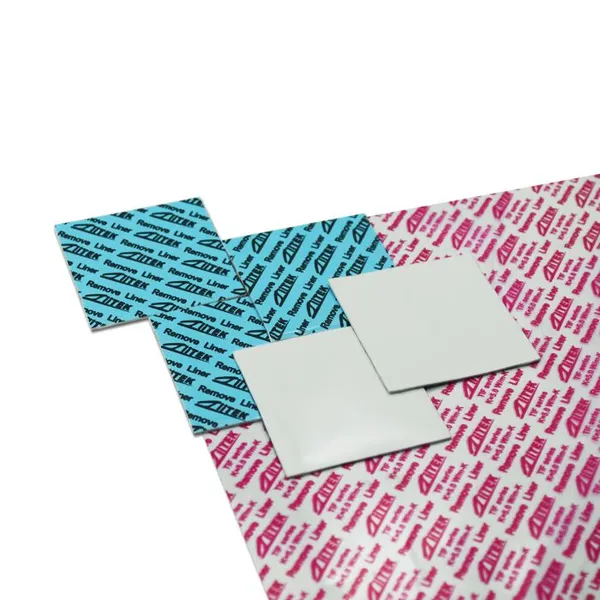

The TIF®100L 2050-06 eries is a thermal pad with ultra-lowsiliconoxygen volatilization, designed specifically for optical and high-precision applications. Its soft and elastic material can fill the uneven gaps between heating elements and heat sinks or metal bases, limprove thermal conductivity efficiency,and effectively extend the life of electronic components. The silicone structure filled with ceramics not only has good thermal conductivity, but also has extremely low volatility of low molecular weight siloxanes, which can significantly reduce the risk of internal contamination in optical devices.
Features:
>Ultra low volatility of siloxane
>Good thermal conductivity
>Self adhesive without the need for extermal surface adhesive
>Highly compressible,easy to install and operate
>Good insulation performance
Applications:
>Ultra low volatility of siloxane
>Good thermal conductivity
>Self adhesive without the need for extermal surface adhesive
>Highly compressible,easy to install and operate
>Good insulation performance
| Typical Properties of TIF®100L 2050-06 Series | |||
| Property | Value | Test method | |
| Color | white | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ***** | |
| Density(g/cm³) | 2.9 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.25~5.00) | (0.75~5.00) | |
| Hardness | 65 Shore 00 | 50 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ***** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 2.0 W/m-K | ASTM D5470 | |
| 2.0 W/m-K | ISO22007 | ||
Product Specification
Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm),with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mmx406 mm)
The TIF® series is available in custom shapes andvarious forms.
For other thicknesses or more information, please contact us.
