Portable Railway Track Laser Curve Alignment Liner Device

Name: Portable Railway Track Laser Curve Alignment Liner Device
Brand: linkage
Availability: InStock

FOB Price

US$ 4800 - 5000 / Piece

1 Piece(Min. Order)

Port Qingdao
Payment TermsT/T L/C Credit Card PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	linkage		Place of Origin	China
Model Number	LJ-BXJG

Product Description

Product Description

Laser Alignment Device

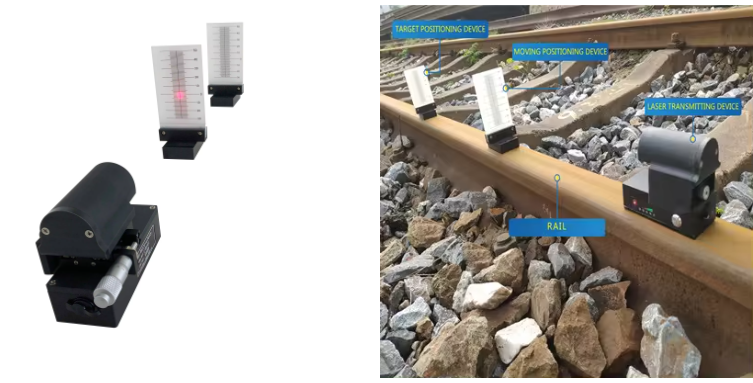

Laser Alignment Device is used for measuring track level and line to aid track measurement and hand tamping operations. It can measure the Horizontal and the Vertical . It is mainly composed of laser transmitting device,target positioning device and moving positioning target device .

Specification

Model	LJ-BXJG
Type	Rail Laser Alignment Device
Material	Alluminium Alloy
Dimensions (L x W x H) (mm)	303012mm
Laser measure distance	30m
Laser center spot	﹤10mm (30m distance area)
Vertical Point range	(-30~+60)mm
Horizontal Point range	(-30~+60)mm
Accuracy	2mm
Gross weight	1.5KG
Battery	2000mAh (continuous using 5-6 hours)

Package & Delivery

Pe bag+paper carton, 1 unit/Carton box, Carton box:36*25*12 cm,  G.W: 3.5KG

Certificate

Company Profile

Wuhan Linkage track Co., Ltd. established in 2022, we are a rapidly growing company involved in the design and manufacture of an extensive range of equipment for the railway industry.

We started our business from producing railway measurement device in 2003 and wide our product range to small rail machines like rail cutting machine ,rail grinding etc .

Our company has expanded its operation to include three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou China.

Now, Linkage family of brands provides a diverse and comprehensive product line for different markets and demands.

Our products are sold in more than 50 countries and regions worldwide. Market acceptance is backed by ISO9001, European CE certification .
