Home > Products > Grouting Packers > Mechanical Borehole Packer Engineering Mechanical Grouting Plug

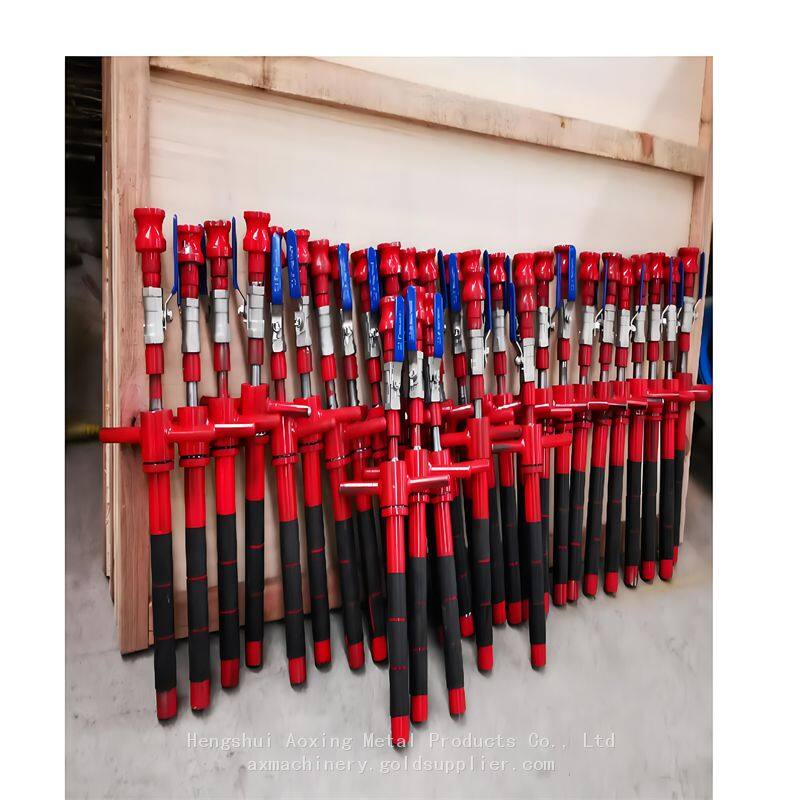

Mechanical Borehole Packer Engineering Mechanical Grouting Plug
- TIANJIN
- T/T
- 1 days
You May Like
Product Details
| Brand Name | AOXING | Place of Origin | China | |
| Model Number | 30/35/40/50/55/60/65/75/90/100/110/130/150 |
Product Description

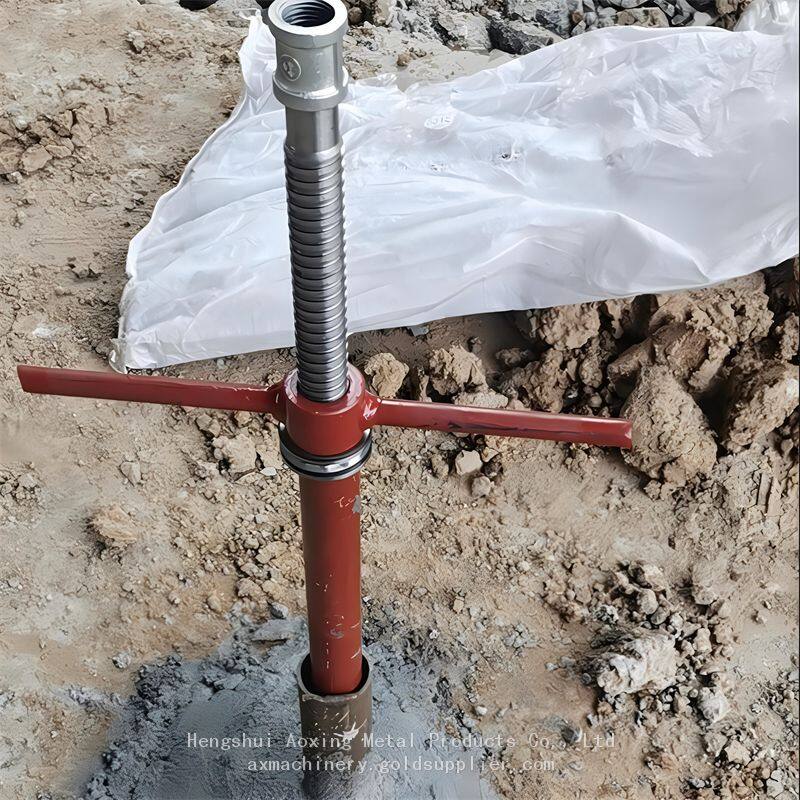

Mechanical grouting packer in the grouting hole, by mechanical pressure to make the rubber plug (seal) transverse, and the hole wall is tight, the grouting hole is divided into upper and lower two sections, so that the grouting of the lower section can be put into the grout crack water-bearing rock, but not from the rubber plug back to the upper section of the hole, or even the surface, to ensure normal subsection grouting. Grouting refers to the index that should be achieved after the grouting is required by the designer. Because of the different grouting engineering properties and engineering address conditions are different, the purpose and requirements of each grouting are not the same, so it is difficult to provide a more specific and unified criteria, but can only make specific rules according to the specific situation
MAIN SPECIFICATOIN
| Packer Type | Rubber length(mm) | Total length(mm) | Nomical Ø |
| DP27 | 50 | 600 | 1/2" NPT |
| DP33 | 50 | 600 | 3/4" NPT |
| DP36 | 50 | 600 | 3/4" NPT |
| DP38 | 50 | 600 | 3/4" NPT |
| DP40 | 50 | 600 | 3/4" NPT |
| DP48 | 50 | 600 | 3/4" NPT |
| DP55 | 50 | 600 | 3/4" NPT |
| DP60 | 100 | 600 | 3/4" NPT |
| DP65 | 100 | 650 | 3/4" NPT |
| DP73 | 100 | 700 | 1" NPT |
| DP88 | 100 | 700 | 1" NPT |
| DP98 | 100 | 700 | 1" NPT |
| DP108 | 100 | 700 | 1" NPT |
| DP127 | 100 | 700 | 1" NPT |
| DP146 | 100 | 700 | 1" NPT |
