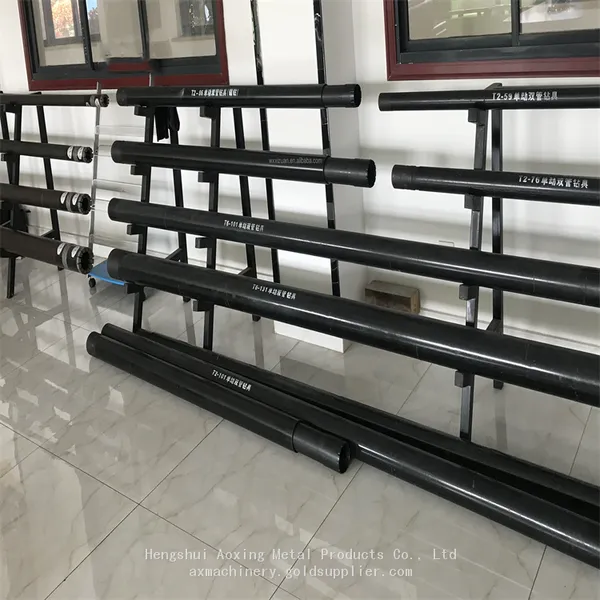

Aq Bq Nq Hq Pq Wireline Drilling Double Tube Core Barrels
Negotiable
MOQ: 1 Pair (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
AOXING
Place of Origin:
China
Model Number:
T2type
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjn
Delivery Detail:
3 days
Related Products
-
CORE BARREL TOOLS AND ACCESSORIESNegotiableMOQ: 1 Pair -
Wireline Drilling Tool Core BarrelNegotiableMOQ: 1 Piece
-
Wireline Horizontal Hole Drilling ToolsNegotiableMOQ: 1 Piece
-
Overshot/Wireline Core Barrel OvershotsNegotiableMOQ: 1 Piece
-
Wireline Series Core Barrel Stop Ring BQ NQ HQ PQ NQ3 HQ3NegotiableMOQ: 1 Pair
Brand Name
AOXING
Place of Origin
China
Model Number
T2type
Material
Alloy
Type
Union
Shape
Equal
Technics
Forged
Connection
Female
Head Code
Other
Product Description
Core Barrels include single tube type, double tube type and triple tube type.
Wireline core barrels eliminate the major time consuming operation of using standard double tube core barrels - pulling, stacking and lowering drill rods each time the core barrel is full.Using a wireline system, core is recovered quickly by retrieving the core-laden inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. This has major cost advantages when drilling deep holes for mineral exploration.
These core barrels are available in industry standard hole sizes A, B, N, H and P. All parts are fully interchangeable with most other manufacturers' wireline core barrels. Special requirements can also be met on request.
| Q Series Wireline Double Tube Core Barrels | |||
| Size | Hole(mm) | Core(mm) | Head Thread |
| BQ | 59.3 | 36.2 | BQ rod box |
| NQ | 75.2 | 47.6 | NQ rod box |
| HQ | 95.6 | 63.5 | HQ rod box |
| PQ | 122 | 85 | PQ rod box |
| Q Series Wireline Triple Tube Core Barrels | |||
| Size | Hole(mm) | Core(mm) | Head Thread |
| NQ3 | 75.2 | 45 | NQ rod box |
| HQ3 | 95.6 | 61 | HQ rod box |
| PQ3 | 122 | 83 | PQ rod box |
Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, BTW, NTW, HTW, SK6L 146, Geobor S146
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
C series: BMLC , NMLC, HMLC, 3C, 4C, 6C
LTK series: LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, Denison, Mazier
Chinese standard: 56mm, 59mm, 75mm, 91mm, 110mm, 131mm, 150mm, 170mm, 219mm, 275mm
