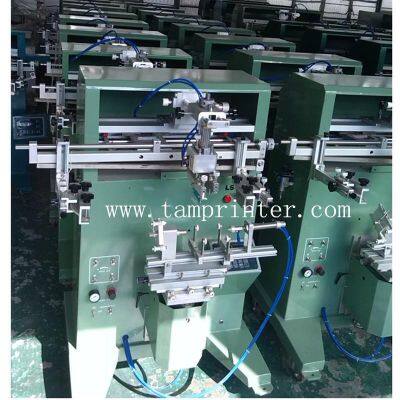

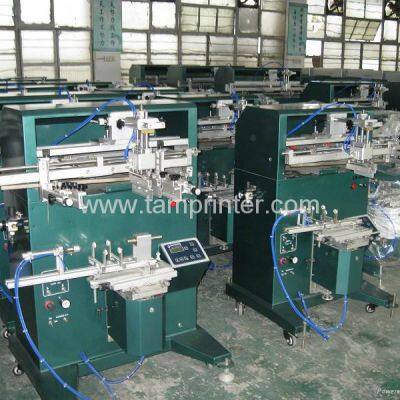

TM-300E Pneumatic cylindrical screen printing machine
cup print video
/v_show/id_XMTQwNjU2NzQ5Ng==.html
Quick Print lampshade video：
/v_show/id_XNjQxMjQ1NDcy.html
Technical parameter:
squeegee moving adjustment | 100~300mm |
Max printing diameter | ≤95mm |
Work piece inclination | About +14°---- -7° |
Max printing speed | 1200pcs/hr |
Air consumption | 110litre/min(6bar) |
Power | 110/220V 60/50Hz |
Dimensions (LXWXH) | 1040X950X1480mm |
Weight | 140kg 1.462CBM |
Model | Printing Area | Printing Speed | Power Supply | Shape of Workpiece |
TM- 250s | Φ70*200 (cylindrical surface) |
1200PCS/HOUR |
110/220V SPN 100W |
Cylindrical |
Φ200*200 (elliptical surface) | AIR5-6KG/ c㎡ | Conic | ||
TM-300E
| Φ90*200 (cylindrical surface) |
1200PCS/HOUR
| 110/220V SPN 100W |
Cylindrical |
Φ200*250 (elliptical surface)
| Conic | |||
TM-400E
| Φ110*200 (cylindrical surface) |
1200PCS/HOUR | 110/220V SPN 100W |
Cylindrical |
Φ200*350 (elliptical surface) | AIR5-6KG/ c㎡ | Conic | ||
TM-700E | Φ215*200 (cylindrical surface) |
1200PCS/HOUR | 110/220V SPN 100W |
Cylindrical |
Φ200*350 (elliptical surface) | AIR5-6KG/ c㎡ | Conic |
Features:
1. With microcomputer control, utility function, easy setting and operation.
2. Adopt the component from Germany, the function can be trustiness.
3. The oil return and scraper double mould, meet the every kind of the printing requirements.
4. The printing route and the speed can adjustment, satisfied with the all kinds of printing requirements.
5. The slide speed can adjustment independently, it is convenient and fast.
6. Use the import axes and sleeve made the screen scraper placidity slide printing.
7. Can balance the scraper by itself, to ensure the printing pressure equipment.
Application:
These kinds of machines are suitable to surface printing on cylinder and oblate products which can be the plastic, vitreous, ceramic, wooden and steel materials. For example: Lipstick envelope, bottle of the cosmetic. Detergent bottle. Drink bottle, cup, packed bed filter and jar.
Random accessories：
One Tool box one piece of Chinese specifications one set of tongs one set of Allen key. One set of Philip's head screw 、one of the located air cylinder.
