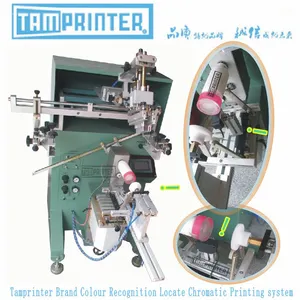

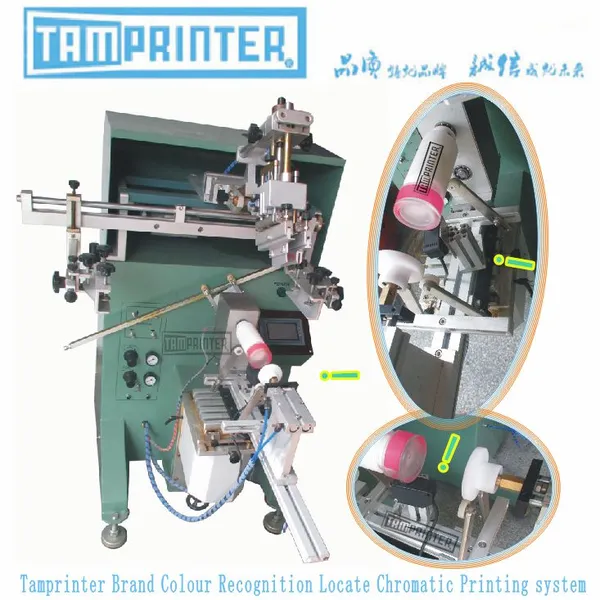

Colour Recognition Locate Chromatic Printing Screen Printing Machine

TM-400C Pneumatic cylindrical screen printing machine Professional for precision fiber alignment screen

round bottle positioning chromatic printing video:

/v_show/id_XMTM4MDEyMTA3Ng==.html

Technical parameter:

Features:

1. With microcomputer control, utility function, easy setting and operation.

2.  Adopt the component from Germany, the function can be trustiness.

3. The oil return and scraper double mould, meet the every kind of the printing requirements.

4. The printing route and the speed can adjustment, satisfied with the all kinds of printing requirements.

5. The slide speed can adjustment independently, it is convenient and fast.

6. Use the import axes and sleeve made the screen scraper placidity slide printing.

7. Can balance the scraper by itself, to ensure the printing pressure equipment.

Cautions

1. The workshop should be kept ash-free, because the ash could affect the screen-printing quality badly.

2. Make fixtures for the substrate on worktable, and make sure that you can put in and take out the substrate conveniently, aTMo position it accurately.

3. If the screen is jammed, you can only wash it with diluent or the screen cleaning solvent. It is strictly forbidden to use other kinds of chemical solvent.

4. Check whether the shape of squeegee is compatible with the characteristic of substrate (Square squeegee is suitable for even surface, and the knife-edged squeegee is suitable for accidented surface).

5. Based on the features of the printing pattern, choose the mesh of appropriate density

6. Mix the ink to the appropriate chroma, if the ink is too ropy, not only it lacks the active, but aTMo it could jam the mesh. If the ink is too watery, the chroma of the pattern printed will not be enough, and the lines of the pattern will be fuzzed.

7.  While printing, the ink stored on the surface of mesh should not be too much or too less, otherwise, the mesh will be jammed and the ink will leak through it, or the chroma of the pattern will be uneven.

Application:

Professional for precision fiber alignment screen / round bottle positioning chromatic printing

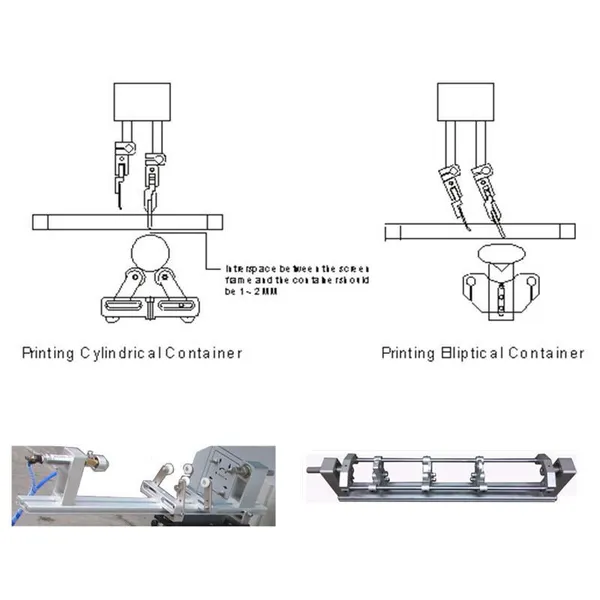

These kinds of machines are suitable to surface printing on cylinder and oblate products which can be the plastic, vitreous, ceramic, wooden and steel materials. For example: Lipstick envelope, bottle of the cosmetic. Detergent bottle. Drink bottle, cup, packed bed filter and jar.

Random accessories：

One Tool box one piece of Chinese specifications one set of tongs one set of Allen key. One set of Philip's head screw 、one of the located air cylinder.

Name 1：Fiber Optic Positioning screen printing machine
Name 2：round bottle positioning chromatic printing machine
Name 3：Colour Recognition Locate Chromatic Printing screen printing machine
Name 4：Automatic Wine bottles Color positioning Screen printing machine
