TM-400E Cylinder screen printer
Technical parameters：
https://youtu.be/6gckaQG9088
Max diameter printing | DIM125mm |
Max thickness of printing | 340mm |
Largest arc length | 380mm |
Max printing speed | 1200pcs/h |
Air consumption | 110litre/min(6bar) |
Power | 110/220V 60/50Hz |
Dimensions | 870X1000X1310mm（LXWXH） |
Weight | 140kg |
Model | Printing Area | Printing Speed | Power Supply | Shape of Workpiece |
TM- 250s | Φ70*200 (cylindrical surface) |
1200PCS/HOUR |
110/220V SPN 100W |
Cylindrical |

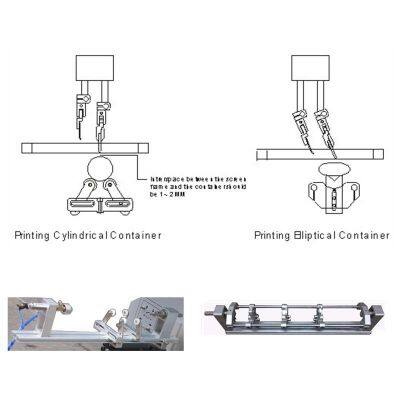

Φ200*200 (elliptical surface) | AIR5-6KG/ c㎡ | Conic | ||
TM-300E
| Φ90*200 (cylindrical surface) |
1200PCS/HOUR
| 110/220V SPN 100W |
Cylindrical |
Φ200*250 (elliptical surface)
| Conic | |||
TM-400E
| Φ110*200 (cylindrical surface) |
1200PCS/HOUR | 110/220V SPN 100W |
Cylindrical |
Φ200*350 (elliptical surface) | AIR5-6KG/ c㎡ | Conic | ||
TM-700E | Φ215*200 (cylindrical surface) |
1200PCS/HOUR | 110/220V SPN 100W |
Cylindrical |
Φ200*350 (elliptical surface) | AIR5-6KG/ c㎡ | Conic |
Machine features：
1. The screen printer is with microcomputer control , high automatic functions, easy setting and operation.
2. Adopt the component from Germany, the function can be trustiness.
3. The oil return and scraper double model, meet the every kind of the printing requirements.
4. The screen printing route and the speed can adjustment satisfied with the all kinds of printing requirements.
5. The slide speed can adjustment independently, it is convenient and fast.
6. Use the import axes, axile bush made the screen scraper placidity slide printing.
7. The screen printing machine can balance the scraper by itself, to ensure the printing pressure equality.
Random accessories：
One Tool box one piece of Chinese specifications one set of tongs one set of Allen key . One set of Philip's head screw 、one of the located air cylinder.
