Acrel Intelligent Power Collection and Monitoring Device AMC72L-E4/KC Three Phase LCD Display 2DI2DO Panel Size 75*75mm

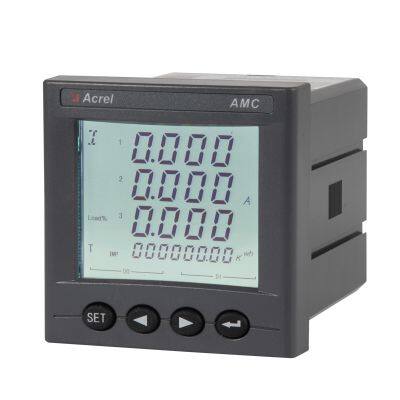

Acrel Intelligent Power Collection and Monitoring Device AMC72L-E4/KC Three Phase LCD Display 2DI2DO Panel Size 75*75mm photo-1

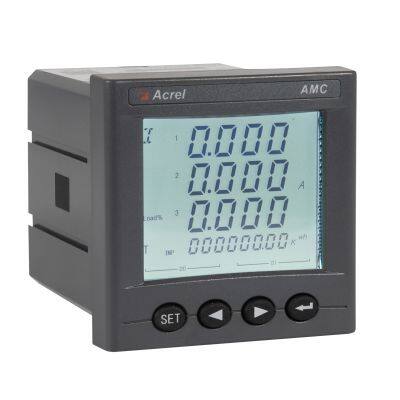

Acrel Intelligent Power Collection and Monitoring Device AMC72L-E4/KC Three Phase LCD Display 2DI2DO Panel Size 75*75mm photo-2
Acrel Intelligent Power Collection and Monitoring Device AMC72L-E4/KC Three Phase LCD Display 2DI2DO Panel Size 75*75mm photo-3
Acrel Intelligent Power Collection and Monitoring Device AMC72L-E4/KC Three Phase LCD Display 2DI2DO Panel Size 75*75mm photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Introduction
AMC Series electric energy meters can measure three phase grid electrical parameters such as current, voltage, power, electric energy etc. It may be used for local display, and connected with the control equipment to form measuring and controlling system. Fitted with RS-485 communication port, adopting compatible Modbus-RTU protocol, meters can switch electric parameter signal into standard analog output, with four-channel (two-channel) digital input / two-channel digital output.
Features
Model
AMC72L-E4/KC
Network
3 phase 4 wire
voltage
measuring range
10-230V Phase voltage
15-400v Phase to phase
overload
instant 2 times/1s
current
measuring range
5A input,primary input current0-9999A
overload
instant 1.2times,instant 10times/1s
frequency
45hz-65hz
auxiliary power supply
AC
85-265V
DC
100-350V
accuracy
current,voltage
0.5s
power,energy
1s
power consumption
<5VA
switching value input
dry contact input,and built-in power supply
relay output
3A 250VAC/3A 30VDC
environment
working temperature
-10℃-55℃
storage temperature
-20℃-70℃
relative humudity temperature
≤93%(non-condensing)
altitude
≤2500m
electromagnetic compatibility
electrical fast transient
4kv 5kHz
electrostatic discharge
contact 6kv/air 8kv
RF electromagnetic field
10v/m
Communication
RS485

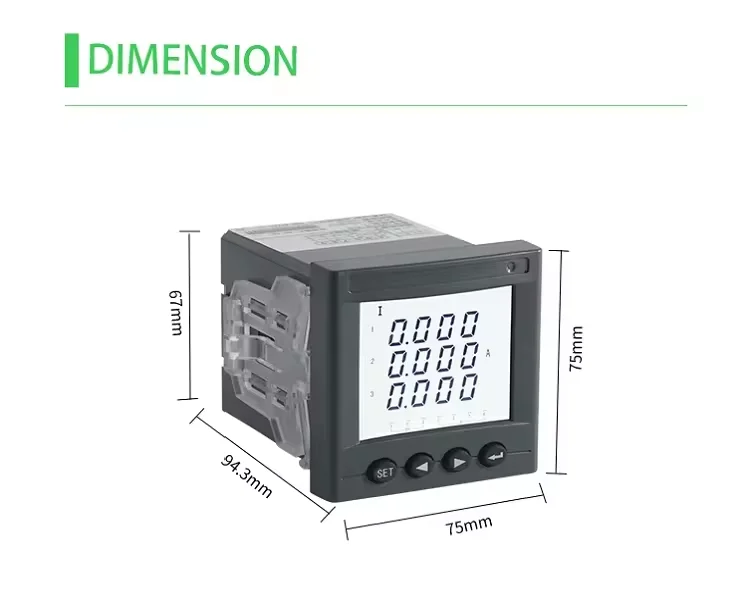

Dimension

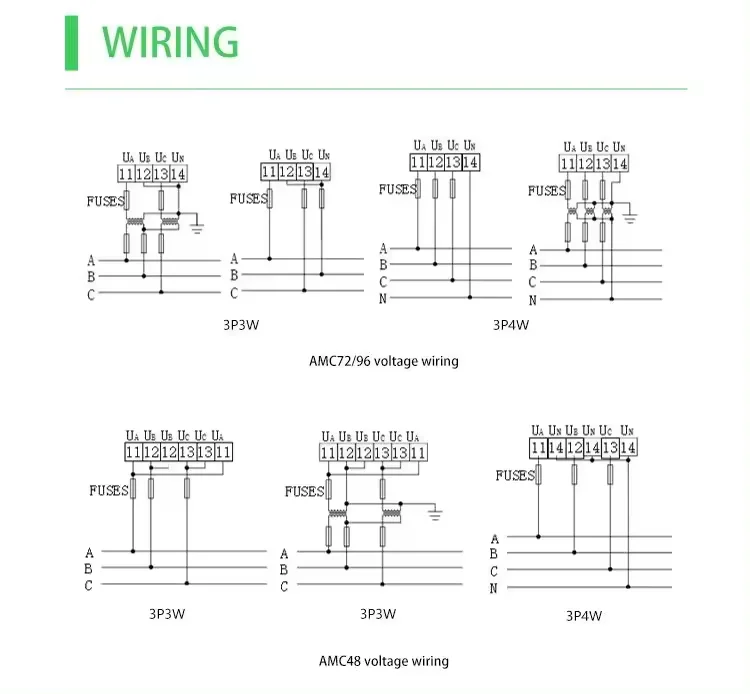

Wiring

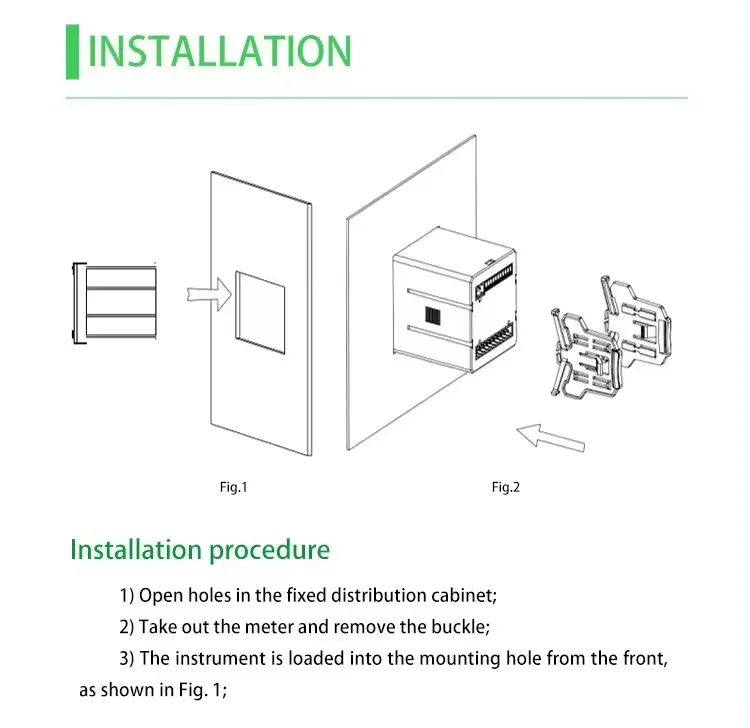

Installation

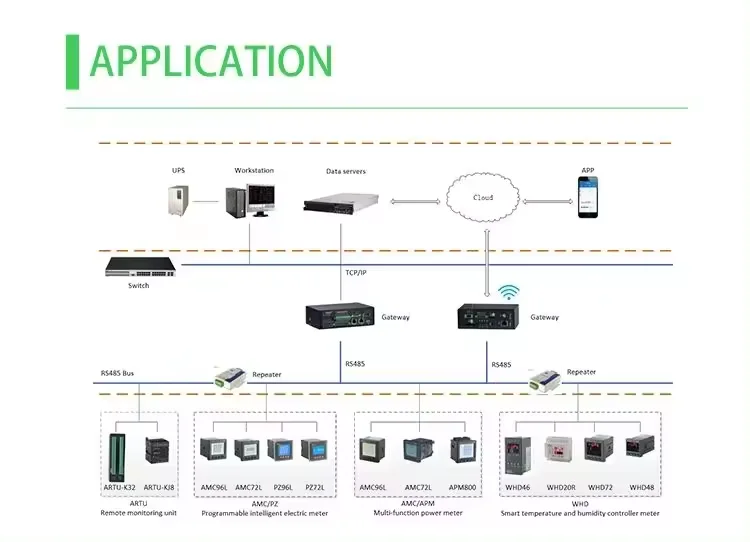

Typical Connection
Packing & Delivery
