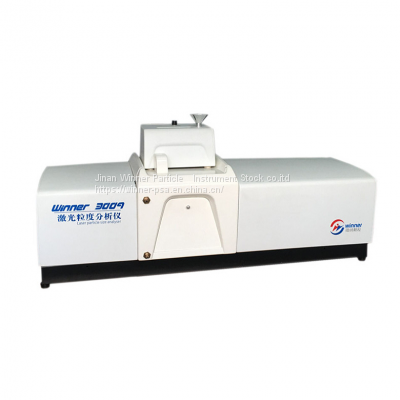

Winner 3009B Dry Intelligent Laser Particle Size Analyzer Adopts Spectrum Amplification Technology
US$ 9998 - 21998
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Winner
Place of Origin:
China
Model Number:
Winner 3009B
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/kangkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Dry Dispersion Winner 3003 Laser Particle Size Analyzer, Adopt MIE Scattering PrincipleUS$ 9998 - 21998MOQ: 1 Set -
Winner 3008A Laser Particle Size Analyzer, Manual and Full Automatic Operation ModelUS$ 11100 - 16998MOQ: 1 Set
-
Winner 3009A CE Certificate Micron Powder Dry Dispersion Laser Particle Size Analyzer for Particle Size DistributionUS$ 12599 - 25999MOQ: 1 Set
-
Winner 2308A Wet/Dry Method Laser Particle Size Distribution Analyzer for Particle Characteristic MeasurementUS$ 20998 - 27998MOQ: 1 Set
-
Winner 2309A Unconstrained Free Fitting Technology Particle Size Analyzer for Particle Size DistributionUS$ 9998 - 33598MOQ: 1 Set
Brand Name
Winner
Place of Origin
China
Model Number
Winner 3009B
Product Description
Winner3009B intelligent dry laser particle size analyzer, manual and full automatic operation modes. MIE scattering principle as basic, Converging light Fourier transform light path, Highly stable He-Ne laser and High sensitive ring photoelectric detector,guarantee good repeatability and accuracy.
It uses air as dispersion medium, and uses turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials,especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.
It uses air as dispersion medium, and uses turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials,especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.
Main Features
(1) Advanced testing optical path.

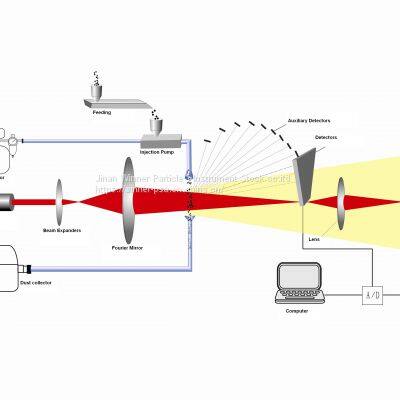

Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
(2)Scientific dispersion system
Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.
(3)Human-based operation mode Manual and Full automatic, easy choose.
(4)High precision-automatic optical path calibration system
It’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state.
(5)Intelligent data analysis-winner unique software support
Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
(6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(bigger than or less than a certain particle diameter).
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
(2)Scientific dispersion system
Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.
(3)Human-based operation mode Manual and Full automatic, easy choose.
(4)High precision-automatic optical path calibration system
It’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state.
(5)Intelligent data analysis-winner unique software support
Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
(6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(bigger than or less than a certain particle diameter).
(7)Users can design the test report output and display forms according to industry requirements.
Specification
Test Operation Interface:
Application
Particle size analyzer is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive,pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.
Quality Assurance
1. Strictly conforming to ISO9001-2000 quality management system.
2. Strict control from purchasing materials, process inspection to final particle size distribution test.
3. QC department to execute quality control regulations.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
After Sale Service
1. Provide operation demonstration video. 2. Provide free installation and training services. 3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life. 4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
