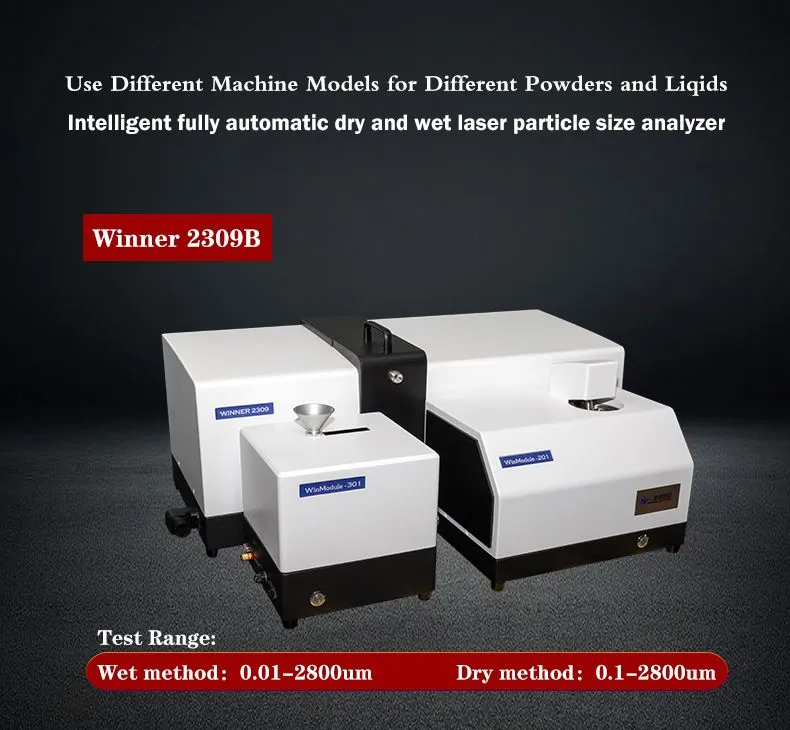

Winner2309B Modular Wet and Dry Laser Particle Size Analyzer
Winner2309B is intelligent fullly automatic laser particle sizeanalyzer, adopts the most advanced international MIE scatter-ing principle and Fraunhofer diffraction principle, which is integrated model of wet and dry dispersion system. High sensitive and high resolution photoelectric probe system and imported Canon lens optical path ensure the good accuracyand repeatability of particle size distribution. It's widely usedin industrial production quality control departments and research institutions.
1. Main Specifications
Model Name |
Winner2309B | |
Measurement Range |
Wet: 0.01-2800μm | |
| Dry: 0.1-2800μm | ||
Sample Injector |
Wet: Winmodule-201 Dry: Winmodule-301 |
|
Number of Channels |
108pcs | |
Accuracy Error |
Wet: ＜0.5%; Dry: ＜1.0% (CRM D50) | |
Repeatability Error |
Wet: ＜0.5%; Dry: ＜1.0% (CRM D50) | |
Light Source |
Main laser: High-performance laser λ=639nm, P＞2mW | |
| Auxiliary laser: Blue laser λ=405nm, P＞2mW Service life: ＞50000h | ||
Optical Bench Alignment System |
Automatic alignment | |
Operation Mode |
SOP Fully automated operation mode | |
Dispersion |
Ultrasonic |
Frequency: f=40KHz, Power: p=60W (Time adjustable) |
| Stir | Revolutions speed: 0-3000rpm (Adjustable) | |
| Circulate | Rated flow: 1L-8L/min; Rated power: 120W | |
| Dry Method | Turbulent dispersion, automatic sample introduction, one-click testing | |
| Wet Method | Ultrasonic, mechanical stirring, and built-in circulating dispersion | |
Sample Tank Volume |
600ml | |
Test Speed |
Fastest 10 seconds | |
Refractive Index |
A wide range of refractive indices are available; any refractive index can be entered. | |
Sampling Frequency |
Fastest data acquisition rate of 10kHz | |
Software Functions |
Analysis Pattern |
Free distribution, R-R distribution, log-normal distribution, and statistical models by category. |
| Statistical Comparison | Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control. | |
| Data Processing | The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results. | |
| Custom Analysis | The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods. | |

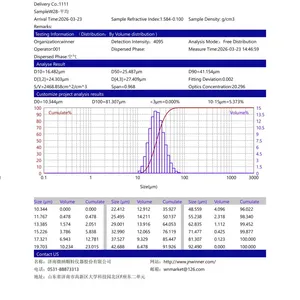

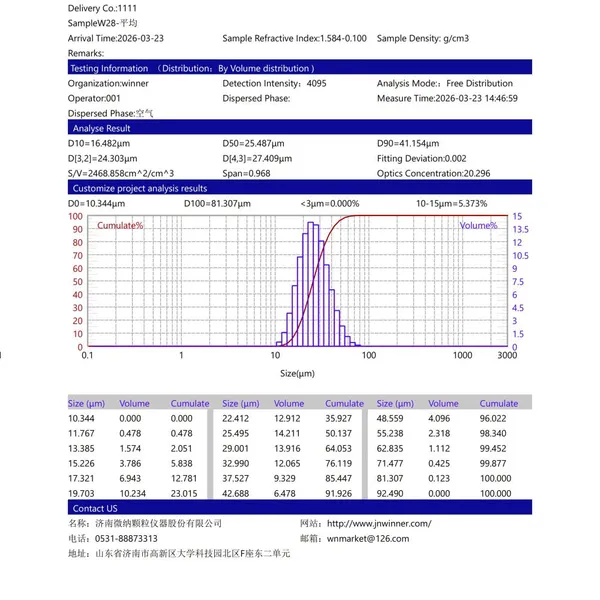

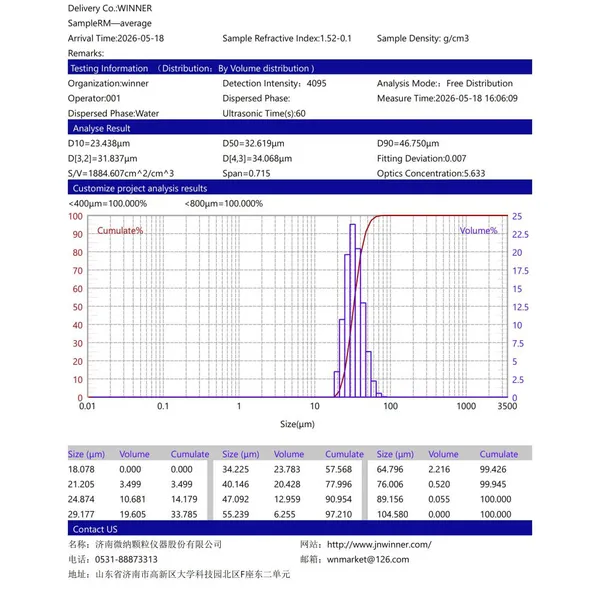

| Output | Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc. | |
| Test Report | Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation. | |
| One-click operation | Wet method: Activate the automatic operation mode and complete all operations such as water intake, air bubble removal, dispersion, testing, cleaning, and data processing with a single button. | |
| Dry method: Activate the automatic operation mode to complete all operations such as dust collection, air supply, feeding, testing, and data processing with a single click. | ||
| Language | Chinese and English interface. Other language interfaces can be added according to user requirements. | |
| GMP | GMP (Optional) | |
Outer Dimension |
Main unit: 870mm*340mm*380mm | |
|
Wet module: 415mm*280mm*335mm Dry module: 260mm*245mm*295mm | ||
Net weight |
Main unit: 32kg; Wet module: 15kg; Dry module: 7kg | |
2. Advantages
(1) Automatic optical path alignment System
It is composed of precise four phase hybrid stepper motor. Its inching precision is reach to micron level, make optimum opticalpaths to ensure accurate and stable test.
(2) Wet and dry, unique separated dispersion module
The instrument adopts a modular design for automatic dry and wetdispersion. Customers can freely assemble it according to the test requirements of sample characteristics. It is simple, convenient and fast.
(3) Automatic sample dispersion system
The modular design of dry and wet dispersion shortens the circulation pipeline and prevents the precipitation of large particles. It is not only conducive to the uniform dispersion of samples, but also reduces maintenance costs. And it is conducive to the cleaning and maintenance of equipment.
(4) Instrument Software
The unique unconstrained free fitting technology collects scattering dataduring the measurement process and has the ability to automaticallyanalyze multi-modal particle groups. It is not constrained by any function. Particles below 2um are tested in 12 particle size grades with extremelyhigh physical resolution.
(5) Optical path design
Adopting the patented inverse Fourier (folded optical path) technology, there ception of scattered light from sample particles is not limited by the focallength of the optical path. The test angle range is 0.015-145 degrees, whicheffectively improves the measurement range and the resolution of theinstrument. The optical path is sealed and has good dustproof performance.

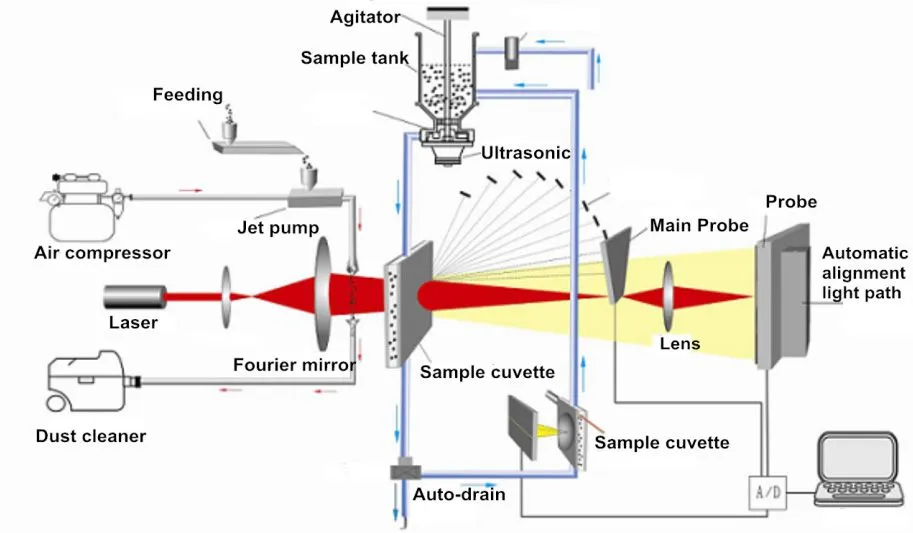

3. Test Principle
4. Application
Solid powder, suspension and emulsion. For example, chemicals, magnetic materials, medicine, cement, coatings, food, pesticides, nuclear industry, electronics, battery materials, paper, metallurgy, ceramics, building materials, cosmetics, abrasives, metal and non-metal powders, calcium carbonate, talc, kaolin, oxidation, aluminum, rare earth, cemented carbide, catalysts, foaming agents, refractory materials, fillers, graphite, pigments, etc.
5. Certifications

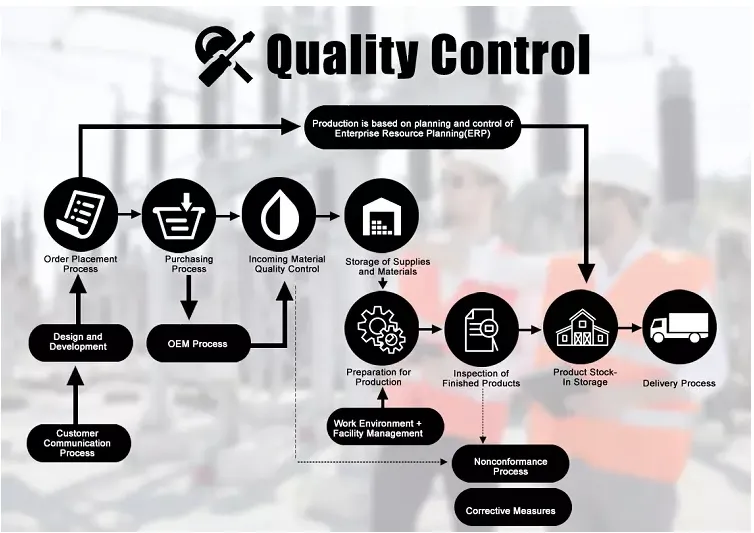

6. Quality Assurance
1. Strictly conforming to ISO9001-2000 quality management system.
2. Strict control from purchasing materials, process inspection to final particle size distribution test.
3. QC department to execute quality control regulations.
4. Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5. Laser particle size analyzer will be processed preventing -shake test before delivery.
7. After Sale Service
1. Provide operation demonstration video.
2. Provide free installation and training services.
3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
4. If maintenance parts are provided, we will provide them at a preferential price, only charge the cost price, and provide long-term maintenance services.
