Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path

Name: Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path
Brand: Winner
SKU: 172363191
Availability: InStock

Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path thumbnail-1

Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path thumbnail-2

Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path thumbnail-3

Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path photo-1

Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path photo-2

Winner 2309B Wet and Dry Integrated Intelligent Laser Particle Size Analyzer is Equipped With Dual Laser Orthogonal Optical Path photo-3

US$ 9998 - 33598 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Winner

Place of Origin:

China

Model Number:

Winner 2309B

Contact Supplier Request Quote Chat Now

Jinan Winner Particle Instrument Stock Co.itd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/kangkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Winner

Place of Origin China

Model Number Winner 2309B

Product Description

 Winner2309B is intelligent full automatic laser particle size analyzer,adopt MIE scattering principle, which is integrated model of wet and dry dispersion system. It’s the prior choice for industrial production quality control departments and research institutions which have more types of particles and wide particle size distribution.

Main Features

(1) Dry and wet integrated laser particle size analyzer equipped with dry and wet separation and dispersion device This instrument integrates dry and wet dispersion testing, successfully solves the problem of integrating dry and wet technologies, and achieves one-click switching. (2) The wet and dry integrated laser particle size analyzer is equipped with an intelligent fully automatic operating system and manual operation, allowing you to choose freely. Choose automatic mode, which is very simple and easy to learn and supports one-click operation. (3) Patented technology of optical path system The wet and dry integrated laser particle size analyzer adopts a convergent light Fourier transform optical path system, so that the scattered light is not limited by the lens aperture. The dual laser orthogonal light is assisted by a semiconductor laser to expand the scattering angle from 45 degrees to 135 degrees, expanding the measurement range. . (4) Automatic optical path alignment system, Composed of a precision four-phase hybrid stepper motor, the micro-movement accuracy reaches micron level, and the optical path is optimized to ensure accurate and stable testing. (5) Fully built-in sample dispersion system. It integrates mechanical stirring, ultrasonic dispersion, and circulation paths to ensure uniform dispersion and distribution of particles, avoids undesirable phenomena such as uneven particle distribution and large particle deposition due to the long tube length of the external dispersion system, and ensures representative testing result. (6)Instrument software The wet and dry integrated laser particle size analyzer uses original unconstrained free fitting technology to collect scattering data during the measurement process, so that particle analysis is not restricted by any function and truly reflects particle distribution.

Specification

Model Name		Winner2309B
Standard		ISO13320-1:2009,GB/T19007-2016,Q/0100JWN001-2013 Compliance with 21 CFR Part 11
Principle		Laser diffraction principle
Analysis		Mie and Fraunhofer scattering
Detector Arrangement		Log-spaced array, test angle from 0.015 degree to 145 degree
Measuring Range		Wet:0.01μm-1200 μm Dry: 0.1μm-1200μm
Silicon Photodetectors		Wet:127 pcs Dry:100 pcs
Accuracy error		Wet≤0.5% Dry≤1% (CRM D50)
Repeatability error		Wet≤0.5% Dry≤1% (CRM D50)
Light source		High performance semiconductor red laser (λ=639nm ) P＞3.0MW Auxiliary green solid semiconductor laser (λ= 405 nm) P＞2.0MW (available)
Optical path		Converging light Fourier transform optical path
Effective focal length		500mm
Laser Safety		Class 1
Wet dispersion	Ultrasonic	Frequency:40KHz Power:60W, Time: ≥1S
	Stir	Revolutions Speed: 0-3000RPM (Adjustable)
	Circulate	Rated Flow:30L/min Rated Power:70W
	Water level sensor (UK	Prevent water overflow and effectively protect the instrument
	Sample tank	Volume:1000mL
	Micro- Sample cuvette	Volume: 10mL ( Available)
Dry dispersion		Dry-turbulence dispersion patent technology, normal shock wave shear technique
Feeding Speed		Adjustable (Variable speed knob)
Operation Mode		Full automatic / manual control, freely choose
Dispersion medium		Compressed Air, pressure: 0 to 6 bar
Optical bench alignment system		Full automatic, precision is up to 0.2um
Full Test Speed per time		Wet: ＜2 Min Dry : Inverval time per test result :500ms
Outer dimension		Host machine: L120cm×W37cm×H56cm wet distribution box: L44.2cm×W28cm×H34.2cm
Net Weight		62Kg+15Kg

Principle

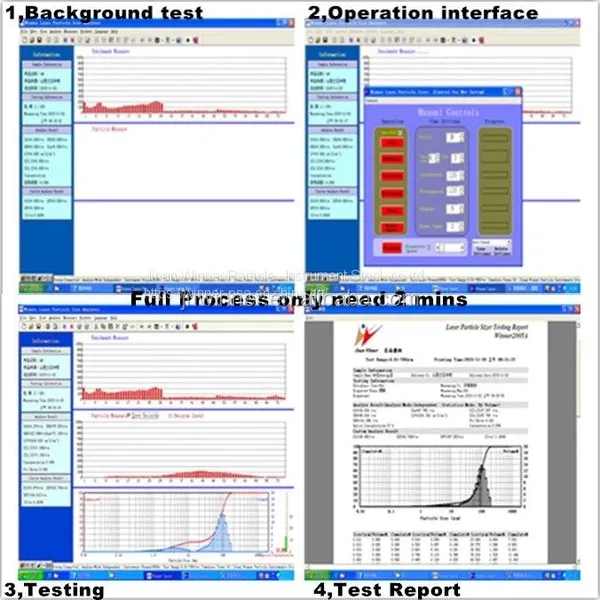

Test Operation Interface:

Quality Assurance

Strictly conforming to ISO9001-2000 quality management system.2. Strict control from purchasing materials, process inspection to final particle size distribution test.
QC department to execute quality control regulations.
Only qualified components will be assembled and total laser particle size analyzer must be inspected     completely before sale.
Laser particle size analyzer will be processed preventing -shake test before delivery.

After Sale Service                                                                                                                                1. Provide operation demonstration video.
Provide free installation and training services.
The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
If maintenance parts are provided, we will provide them at a preferential price, only charge the cost price, and provide long-term maintenance services.
