Home > Products > Shear Pump > Shearing Pumps 6x5x14-45KW Shear Pump for Drilling Fluids JQB6*5J-45

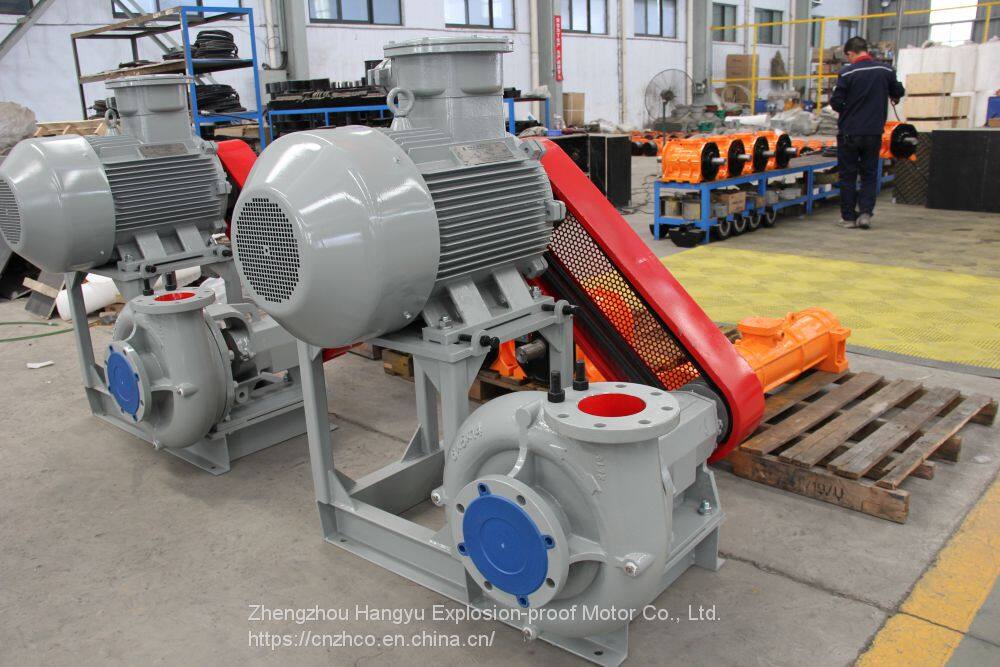

Shearing Pumps 6x5x14-45KW Shear Pump for Drilling Fluids JQB6*5J-45
US$ 1 - 1500
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
Jet Mud Mixer / Mud Mixing Hopper to Match With the Drilling Solids Control Equipments
-
Mud Mixing Hopper SLH155 Jet Mud Mixer to Match With the Drilling Solids Control Equipments
-
Mud Mixing Hopper SB8x6-75KW Jet Mud Mixer to Match With the Drilling Solids Control Equipments
-
SB6X5 Shear Pump Solid Control
-
Shear Pump in Drilling Solid Control System
-
The Jet Mud Mixer is Mainly Applicated in Concoct the Drilling Fluids and to Change Its Density and Viscosity
Product Details
| Brand Name | Zhenghang | Place of Origin | China | |
| Model Number | JQB6*5J-75 | Application | Other, Used for shearing drilling fluids and mud. | |
| Fuel | Other, Electrical Motor | Power | Electric | |
| Usage | Other, Mud,drilling fluid,water,slurry | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | Low Pressure |
Product Description
Supplementary pumps Shearing pumps 6x5x14-75KW/55KW/45KW shear pump for drilling fluids JQB6*5J-45
Equipment parameters:
| Shear Pump | |||
| Model | JQB6*5J-75 | JQB6*5J-55 | JQB6*5J-45 |
| Inlet Pipe (mm)/(in) | DN150 / 6 | DN150 / 6 | DN150 / 6 |
| Outlet Pipe (mm)/(in) | DN125 / 5 | DN125 / 5 | DN125 / 5 |
| Flow (m3/h) | 150 | 120 | 100 |
| Lift (m)/(ft) | 45 / 148 | 45 / 148 | 35 / 115 |
| Rotating speed (rpm) | 1900 | 1900 | 1900 |
| Efficiency (%) | 67 | 66 | 64 |
| Shaft Power (Kw) | 36 | 31 | 31 |
| Matching Power (Kw) | 75 | 55 | 45 |
| Weight (kg) | 1120 | 993 | 800 |
| External dimension (mm)/(in) | 1170×1032×1576 / 46x41x62 | 990×977×1434 / 39x38x56 | 1150×1100×1250 / 45x43x49 |
