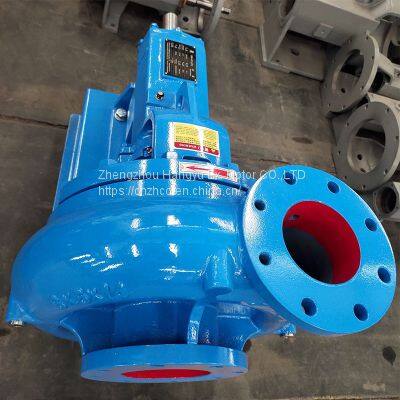

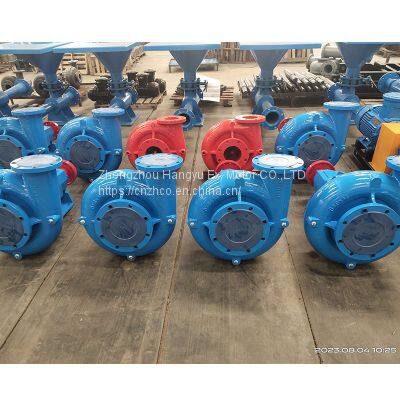

Supplementary Pumps Centrifugal Pump SB6x5x14 Sand Pump for Drilling 5x6

Name: Supplementary Pumps Centrifugal Pump SB6x5x14 Sand Pump for Drilling 5x6
Brand: Zhenghang
SKU: 172221203
Availability: InStock

Zhengzhou Hangyu Explosion-proof Motor Co., Ltd.

US$ 1 - 1000 MOQ: 1 Set

Key Specifications

Brand Name:

Zhenghang

Place of Origin:

China

Model Number:

6x5x14

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Zhenghang

Place of Origin China

Model Number 6x5x14

Application Submersible

Fuel Other, Electrical Motor

Power Electric

Usage Other, Mud,drilling fluid,water,slurry

Theory Centrifugal Pump

Standard or Nonstandard Standard

Structure Single-stage Pump

Pressure Low Pressure

Supplementary pumps Drilling Mud Centrifugal Pump for Drilling Fluid System

We supply Mission centrifugal pump Magnum and parts ,100% interchangeable for below model:

Mission Centrifugal pumps Magnum 3x2x13

Mission Centrifugal pumps Magnum 4x3x13

Mission Centrifugal pumps Magnum 5x4x14

Mission Centrifugal pumps Magnum 6x5x11

Mission Centrifugal pumps Magnum 6x5x14

Mission Centrifugal pumps Magnum 8x6x11

Mission Centrifugal pumps Magnum 8x6x14

Product Description

Model	10×8×14	8×6×14	6×5×14	5×4×14	4×3×13	3×2×13
Discharge capacity	260~280 m³/h	240~260 m³/h	220~240 m³/h	120~220 m³/h	60 m³/h	50 m³/h
Pump Head	28~33	28~33m	24~28m	24~28m	22~28m	22~28m
Efficiency	65%	65%	65%	65%	65%	65%
Motor power	75 kW	55/75 kW	37/45 kW	30/37/45 kW	11/15 kW	7.5/11 kW
Motor speed	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm
Inlet diameter	10″	8″	6″	5″	4″	3″
Outlet diameter	8″	6″	5″	4″	3″	2″
Weight	1150kg	1000/1150kg	920/1050kg	819/887/920kg	438/460kg	358/400kg
Overall dimensions mm	2020×675×950	1930×650×880 /2000×675×950	1848×595×800 /1875×595×850	1770×505×835 /1820×585×800 /1845×585×850	1545×500×710 / 1585×500×710	1435×485×640 /1530×485×710
