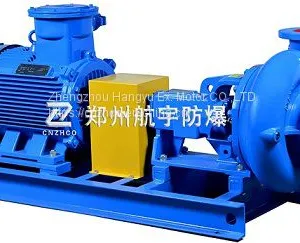

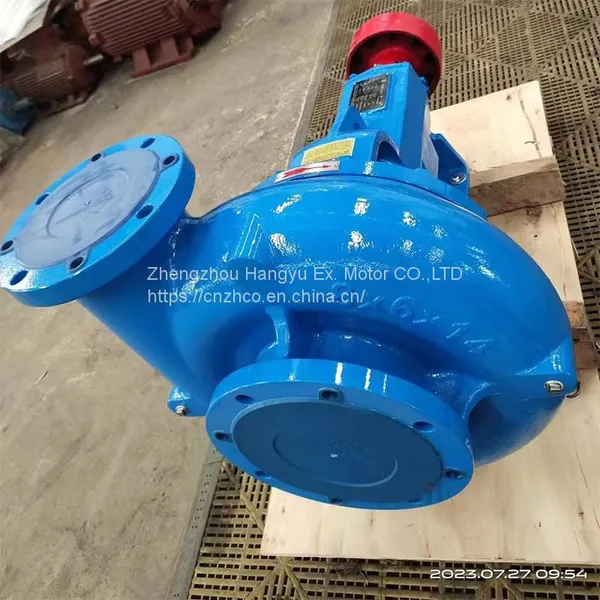

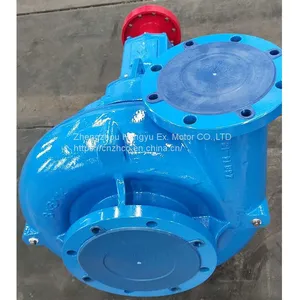

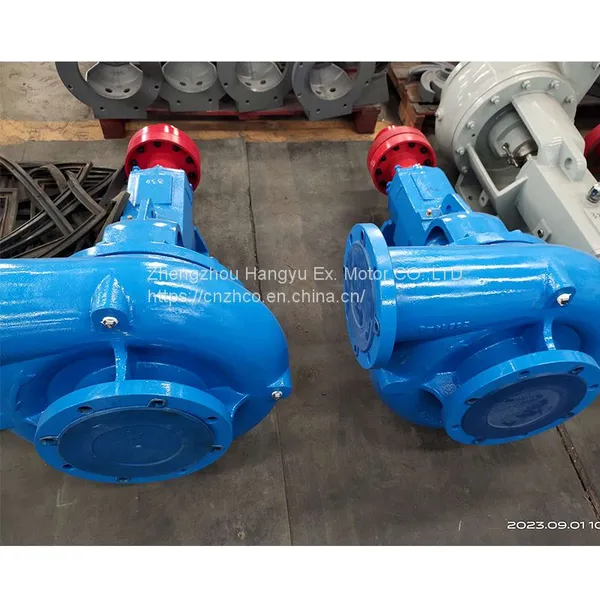

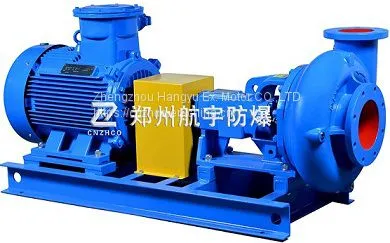

Weighting Pump 8x6x14 Sand Pump for Drilling 6x8

FOB Price

US$ 1 - 1500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Zhenghang	Place of Origin	China
Model Number	8x6x14	Application	Submersible
Fuel	Other, Electrical Motor	Power	Electric
Usage	Other, Mud,drilling fluid,water,slurry	Theory	Centrifugal Pump
Standard or Nonstandard	Standard	Structure	Single-stage Pump
Pressure	Low Pressure

Weighting pump 8x6x14 Sand pump for drilling 6x8

We supply Mission centrifugal pump Magnum and parts ,100% interchangeable for below model:

Mission Centrifugal pumps Magnum 3x2x13

Mission Centrifugal pumps Magnum 4x3x13

Mission Centrifugal pumps Magnum 5x4x14

Mission Centrifugal pumps Magnum 6x5x11

Mission Centrifugal pumps Magnum 6x5x14

Mission Centrifugal pumps Magnum 8x6x11

Mission Centrifugal pumps Magnum 8x6x14

Product Description

Model	10×8×14	8×6×14	6×5×14	5×4×14	4×3×13	3×2×13
Discharge capacity	260~280 m³/h	240~260 m³/h	220~240 m³/h	120~220 m³/h	60 m³/h	50 m³/h
Pump Head	28~33	28~33m	24~28m	24~28m	22~28m	22~28m
Efficiency	65%	65%	65%	65%	65%	65%
Motor power	75 kW	55/75 kW	37/45 kW	30/37/45 kW	11/15 kW	7.5/11 kW
Motor speed	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm
Inlet diameter	10″	8″	6″	5″	4″	3″
Outlet diameter	8″	6″	5″	4″	3″	2″
Weight	1150kg	1000/1150kg	920/1050kg	819/887/920kg	438/460kg	358/400kg
Overall dimensions mm	2020×675×950	1930×650×880 /2000×675×950	1848×595×800 /1875×595×850	1770×505×835 /1820×585×800 /1845×585×850	1545×500×710 / 1585×500×710	1435×485×640 /1530×485×710
