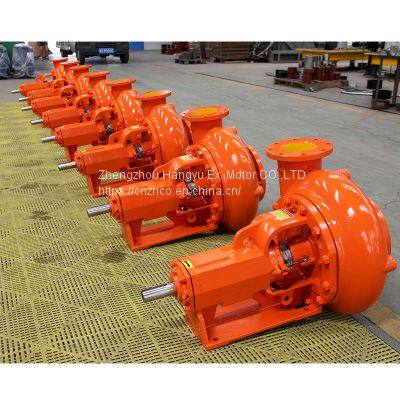

MCM 5x4x14 Sand pump for drilling fluid 4x5
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
Supplementary pumps Centrifugal Pump SB6x5x14 Sand pump for drilling 5x6
-
Weighting pump 8x6x14 Sand pump for drilling 6x8
-
MCM Pumps 3x2x13 Sand pump for drilling 2x3x13 pump-motor set 15KW，11KW，7.5KW，5.5KW
-
Mission Magnum Centrifugal Pumps 4x3x13 Sand pump for drilling 3x4 pump-motor set ，22KW，18.5KW，15KW，11KW
-
Mission Magnum Centrifugal Pumps 5x4x14 Sand pump for drilling 4x5 pump-motor set ，30KW，22KW，18.5KW，15KW
-
Mission Magnum Centrifugal Pumps 6x5x14 Sand pump for drilling 5x6 pump-motor set ，30KW，37KW，45KW，55KW
Product Details
| Brand Name | Zhenghang | Place of Origin | China | |
| Model Number | 5x4x14 | Application | Submersible | |
| Fuel | Other, Electrical Motor | Power | Electric | |
| Usage | Other, Mud,drilling fluid,water,slurry | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | Low Pressure |
Product Description
MCM Drilling Mud Centrifugal Pump for Drilling Fluid System
We supply Mission centrifugal pump Magnum and parts ,100% interchangeable for below model:
Mission Centrifugal pumps Magnum 3x2x13
Mission Centrifugal pumps Magnum 4x3x13
Mission Centrifugal pumps Magnum 5x4x14
Mission Centrifugal pumps Magnum 6x5x11
Mission Centrifugal pumps Magnum 6x5x14
Mission Centrifugal pumps Magnum 8x6x11
Mission Centrifugal pumps Magnum 8x6x14
Model | 10×8×14 | 8×6×14 | 6×5×14 | 5×4×14 | 4×3×13 | 3×2×13 |
Discharge capacity | 260~280 m3/h | 240~260 m3/h | 220~240 m3/h | 120~220 m3/h | 60 m3/h | 50 m3/h |
Pump Head | 28~33 | 28~33m | 24~28m | 24~28m | 22~28m | 22~28m |
Efficiency | 65% | 65% | 65% | 65% | 65% | 65% |
Motor power | 75 kW | 55/75 kW | 37/45 kW | 30/37/45 kW | 11/15 kW | 7.5/11 kW |
Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
Inlet diameter | 10″ | 8″ | 6″ | 5″ | 4″ | 3″ |
Outlet diameter | 8″ | 6″ | 5″ | 4″ | 3″ | 2″ |
Weight | 1150kg | 1000/1150kg | 920/1050kg | 819/887/920kg | 438/460kg | 358/400kg |
Overall dimensions mm | 2020×675×950 | 1930×650×880 /2000×675×950 | 1848×595×800 /1875×595×850 | 1770×505×835 /1820×585×800 /1845×585×850 | 1545×500×710 / 1585×500×710 | 1435×485×640 /1530×485×710 |
