Home > Electrical & Electronics > Electric Motor > AC Motor > MVTX Motor Vibrante YBZ Electric Vibrators, Vibrating Motor для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный

MVTX Motor Vibrante YBZ Electric Vibrators, Vibrating Motor для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный

MVTX Motor Vibrante YBZ Electric Vibrators, Vibrating Motor для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный photo-1
MVTX Motor Vibrante YBZ Electric Vibrators, Vibrating Motor для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный photo-2
MVTX Motor Vibrante YBZ Electric Vibrators, Vibrating Motor для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный photo-3
MVTX Motor Vibrante YBZ Electric Vibrators, Vibrating Motor для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный photo-4
MVTX Motor Vibrante YBZ Electric Vibrators, Vibrating Motor для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Zhenghang
Place of Origin:
China
Model Number:
Italvibras MVTX Vibrator Motors
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
5 days
Brand Name Zhenghang
Place of Origin China
Model Number Italvibras MVTX Vibrator Motors
Type Other, vibration motor
Output Power 0.5KW-2.5KW
Frequency 50-70HZ
Efficiency IE 3
AC Voltage Other, 380V~660V
Certification Other, CCC, IEC,EAC
Phase Three-phase
Protect Feature Explosion-proof

High quality MVTX 50HZ 60HZ Italvibras Motor vibrante MVTX15 Electric vibrator, vibrating motor  для вибросит Vibration motor Explosion-proof AC Motor Shale Shaker SVX вибрационный Н - образный авиационный

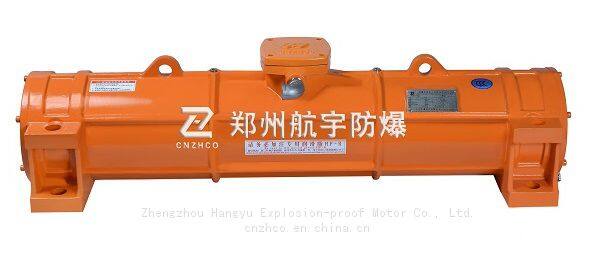

YBZ-W series vibration motor is designed with a long and thick structure. Its rotor has double shaft extensions, each equipped with a group of eccentric wheels (eccentric device can only be changed by the manufacturer) with guard shield protection outside.


The rated voltage is 400V, 380V, 415V, 440V, 460V, 480V, 660V, 220V/380V, 380V/660V, 400V/690V, 415V/720V, 440V/760V, 460V/790V; and the rated frequency is 50Hz, 60Hz.

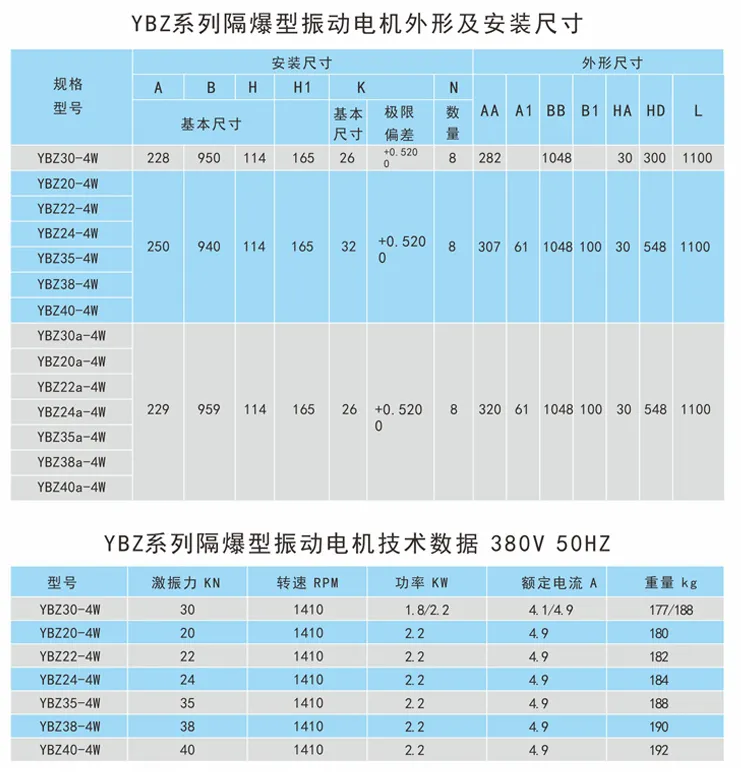

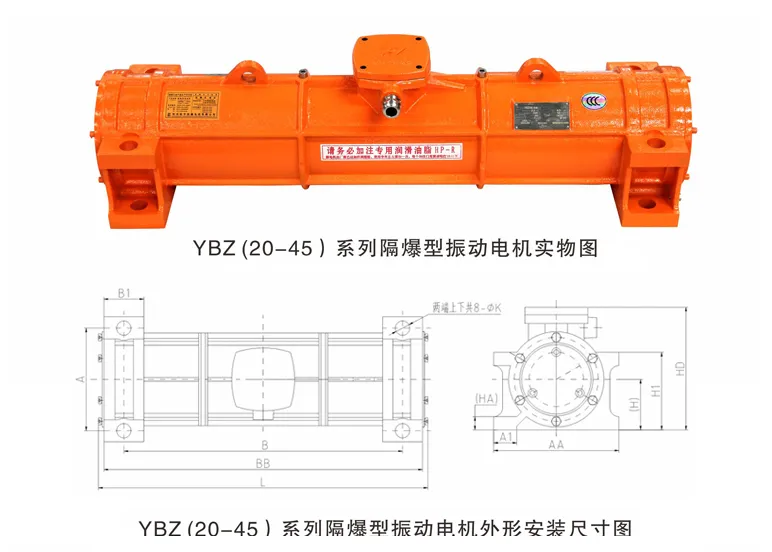

Appearance and Installation Dimensions of YBZ Series    in mm.

Specifications Installation dimensions External dimensions
A B H H1 K AA BB HA HD L
Basic dimensions Basic dimensions Limit
Deviation
30-4 228 950 114 165 26 +0.52
0
282 1048 30 310 1100


20-4 250 940 32 307 335
22-4
24-4
35-4
38-4
40-4
30a-4 229 959 114 165 26 +0.52
0
310 1048 30 335 1300
20a-4
22a-4
24a-4
35a-4
38a-4
40a-4


Product Tags: vibraiton motor , vibrator , Motore a vibrazione , Moteur vibrant , MVTX , YBZ , electric motor , explosion-proof motor , Motor vibrante
