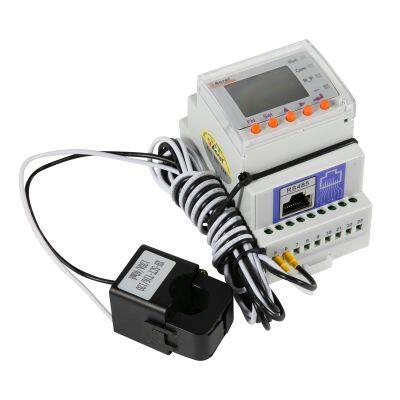

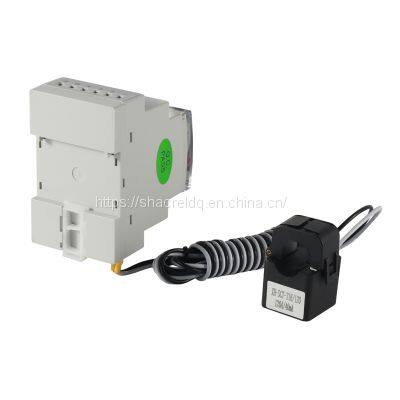

ACR10R-D16TE Din Rail LCD Display AC 100V/400V Power Single Phase 120A Current Input Split Core Din Rail Bidirectional Meter

ACR10R-D16TE Bidirectional Single-phase Reflux Monitoring Energy Meter

● Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc

● Current Rating: up to 300A (paired with external CTs)

● Communication: RS485 (MODBUS-RTU)

● Application: Using in distributed Solar PV and Anti-reflux Inverter

● Display: LCD Dispaly

● Dimension: 54*74*85mm (L*W*H)

● Installation: 35mm DIN Rail

● Power Supply: 85~265V AC or 100~350V DC

● Standard&Certificate: CE

The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including the smelting, iron and steel, welding and semi-conductor industry. It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management. It boasts of no need of bus removal, easy connection and safe construction, saving reconstruction cost and raising efficiency for the user. It integrates the measurements of all electric parameters (including single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency and power factor ） and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for the user to choose: the RS485 communication interface with MODBUS-RTU protocol can meet the need of online communication management; the interfaces with switch input and relay output can realize the remote signalling and remote control of the circuit breaker switch. It is very suitable for real-time power monitoring system with an LCD display and the panel buttons to realize the setting and control of parameters.
