Products Description

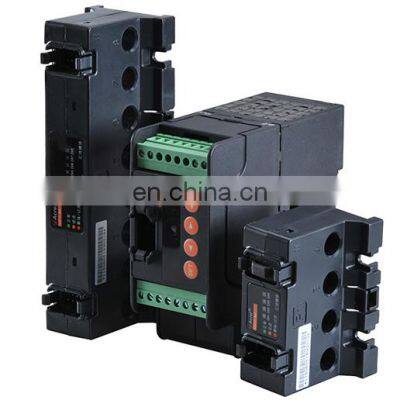

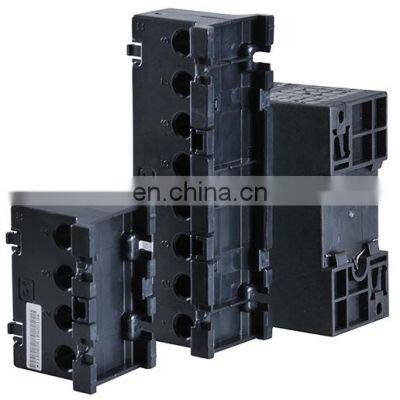

AGF-T Series Solar String Monitoring Device

AGF-T Perforation type PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the datas to master device.
Characteristics
◆ Primary current is connected in through perforation. Easy installation, high safety.
◆ With Hall sensor, the max isolation measuring current 20A
◆ Voltage measurement range for Bus bar is up to DC1.5kV
◆ LED display, fit for checking and testing operation in wide-temperature or outside environment.
◆ inner temperature measurement for real-time measurement of the inner temperature of combiner box
◆ With RS485 Modbus RTU
◆ More options of power supply
◆ Compatible with din rail installation and baseboard fixation installation, small dimension saving more box space.

Product function
◆ Photovoltaic cell open circuit alarm to cooperate with group string voltage and judge Comprehensively
◆ With 3-channel switching state monitoring to collect output idle contact information of DC breaker,lightning protector.
◆ Option RS485 port, Modbus-RTU protocol; programmable slave address, baud rate, data format
◆ English LCD display，convenient to set parameters and check the data

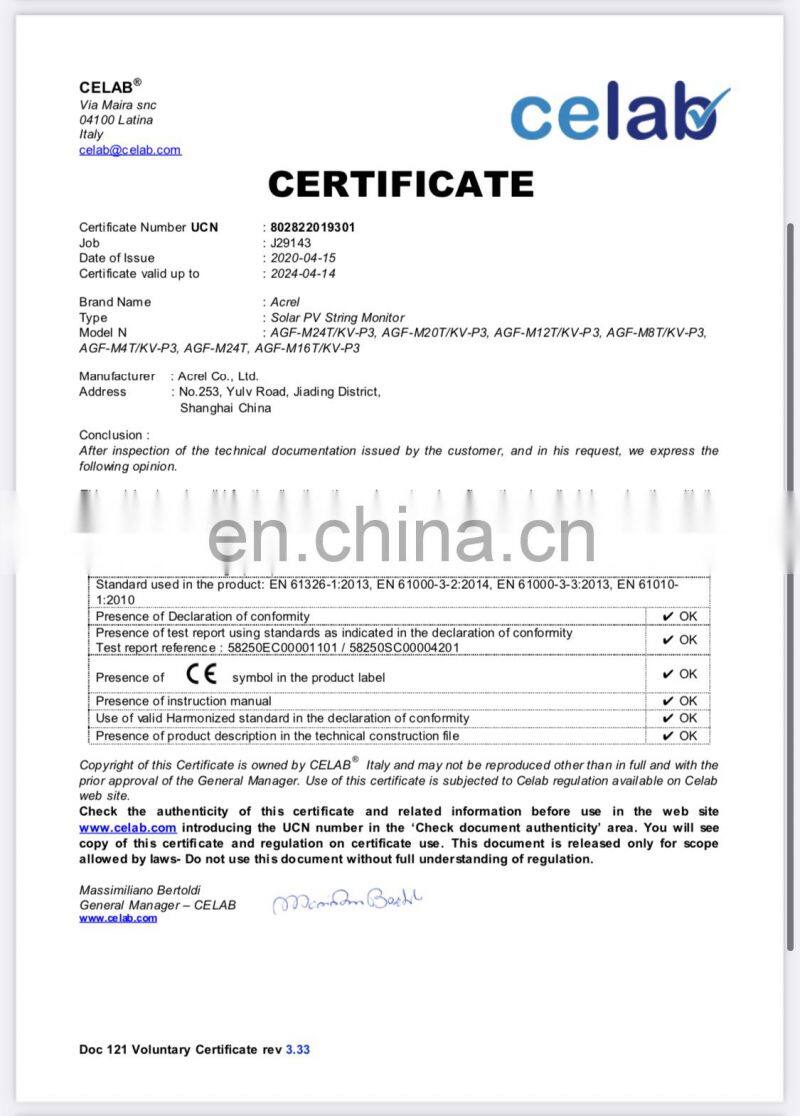

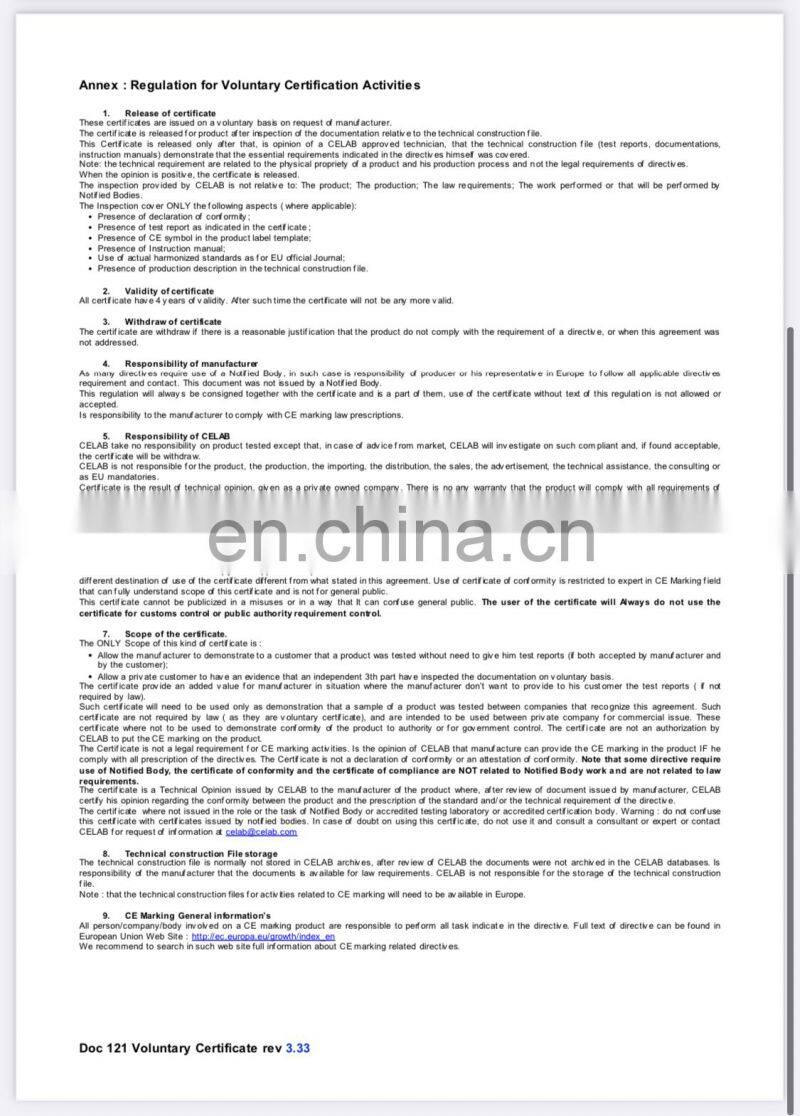

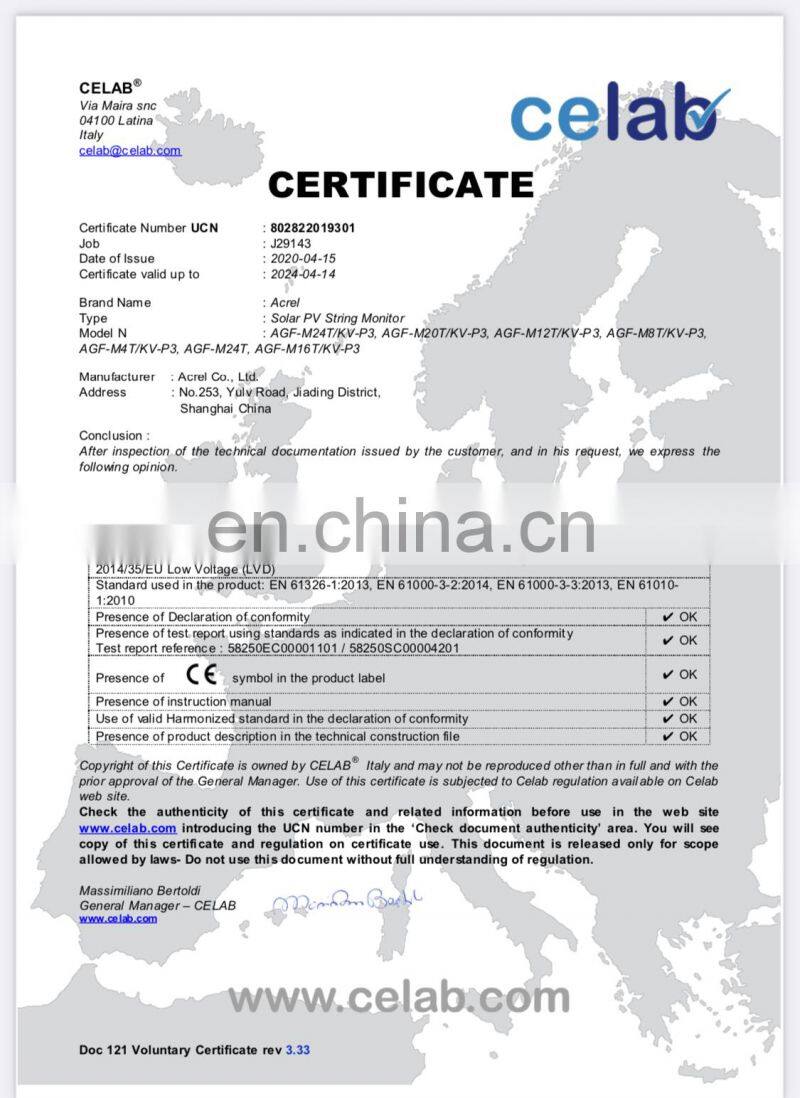

Certificate

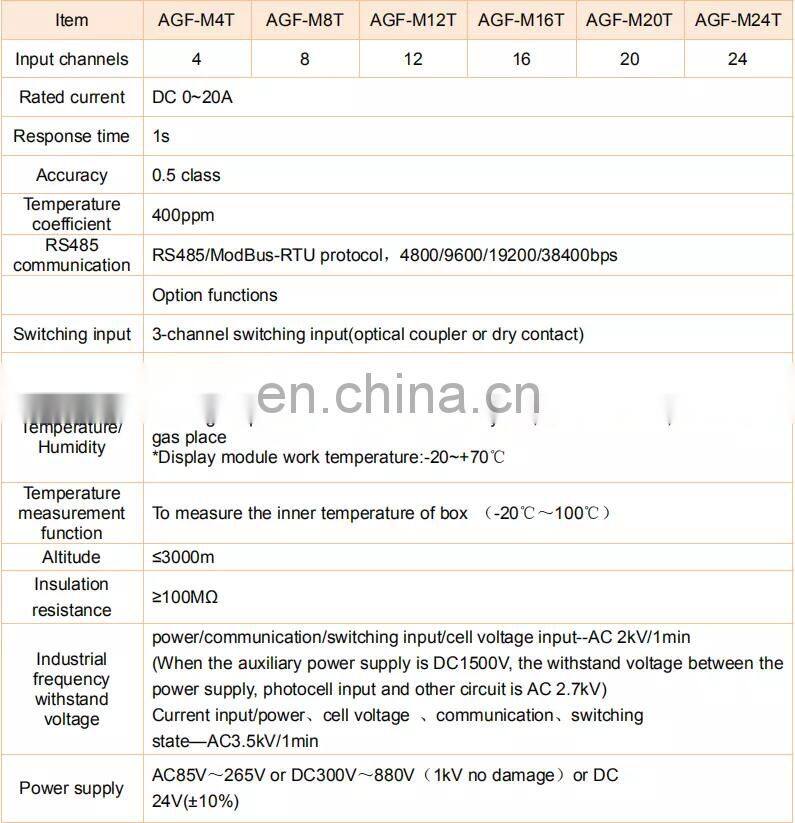

Function & Parameter

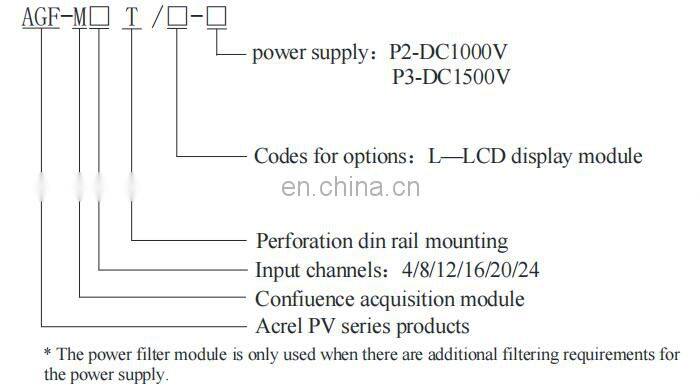

Production selection
Type
Function
FOB (USD)
Optional function price
AGF-M4T
4 channels DC0-20A photovoltaic confluence detection
103.6

/MJ: PT100 DC4-20mA input
         alarm output
      ----------------------------------$21
/L: liquid crystal display
      ----------------------------------$21
/P2: auxiliary power supply
         DC1000V------------------$21
/P3: auxiliary power supply
         DC1500V------------------$21

AGF-M8T
8 channels DC0-20A photovoltaic confluence detection
113.4
AGF-M12T
12 channels DC0-20A photovoltaic confluence detection
123.9
AGF-M16T
16 channels DC0-20A photovoltaic confluence detection
134.4
AGF-M20T
20 channels DC0-20A photovoltaic confluence detection
155.4
AGF-M24T
24 channels DC0-20A photovoltaic confluence detection
207.2

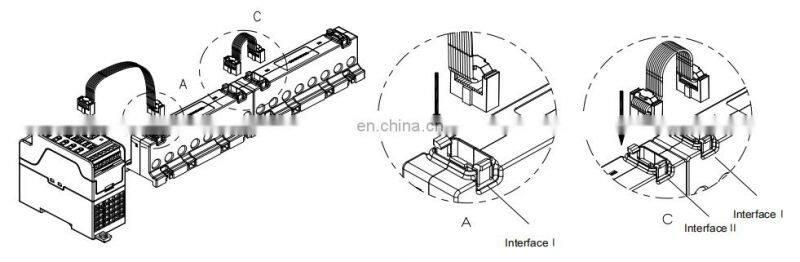

Connections of modules
