AGF-AE-D Bidirectional Reflux Monitoring Meter (1-phase,3-wire with UL certificate)
Products Description

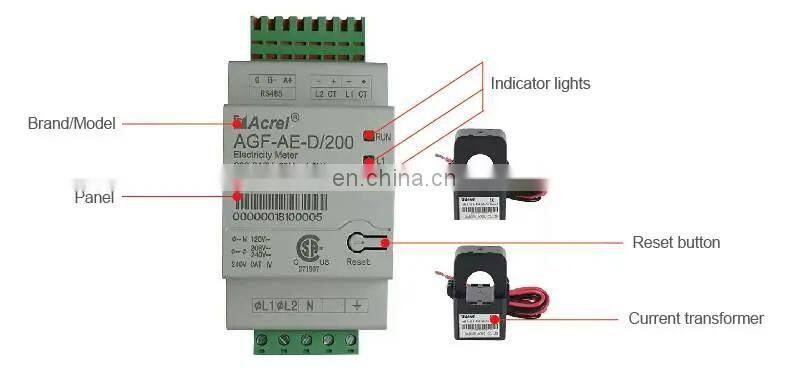

● Measurement: Active Powr, Reactive Power, Current, Voltage and etc
● Wiring: 1-phase 3-wire Connection
● Current Rating: 100A or 200A AC (paired with external CTs)
● Communication: RS485 (MODBUS-RTU)
● Application: Using in distributed Solar PV and Anti-reflux Inverters
● Dimension: 54.1*87.8*52mm (H*W*D)

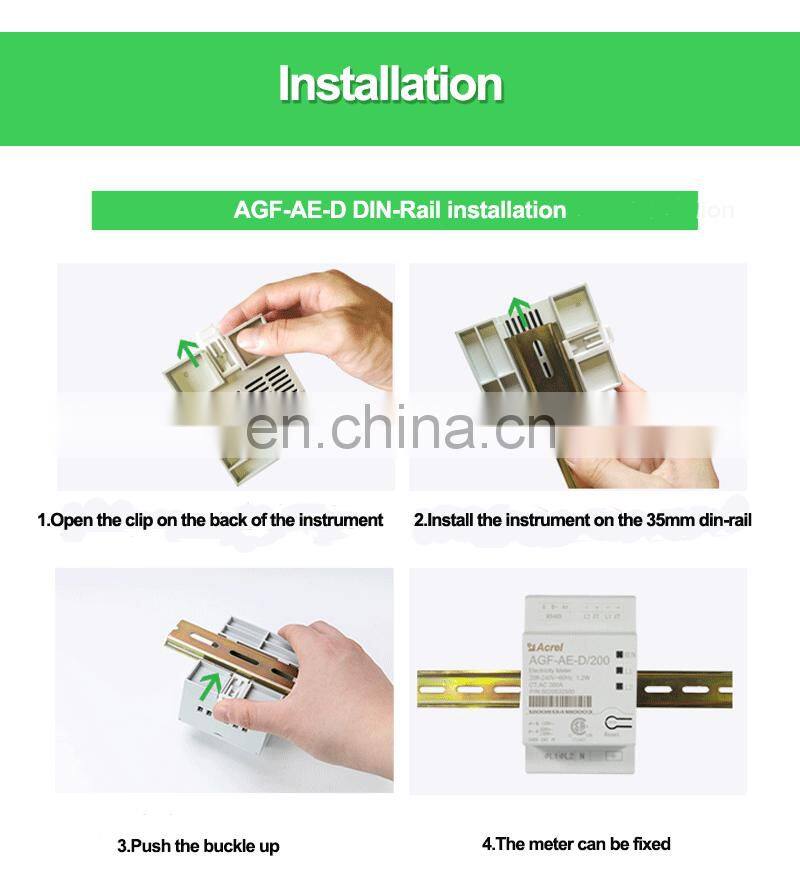

● Installation: 35mm DIN Rail

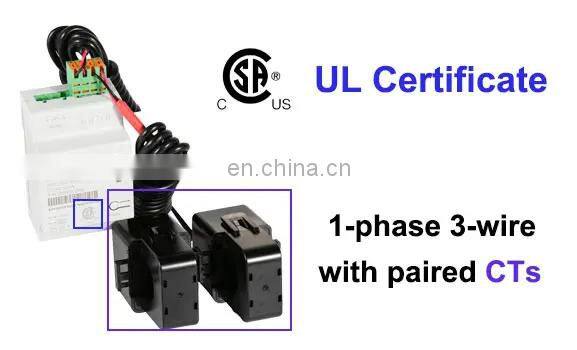

● Standard&Certificate: UL1741;TUV
PV Dedicated Two Channels AC Power Meter

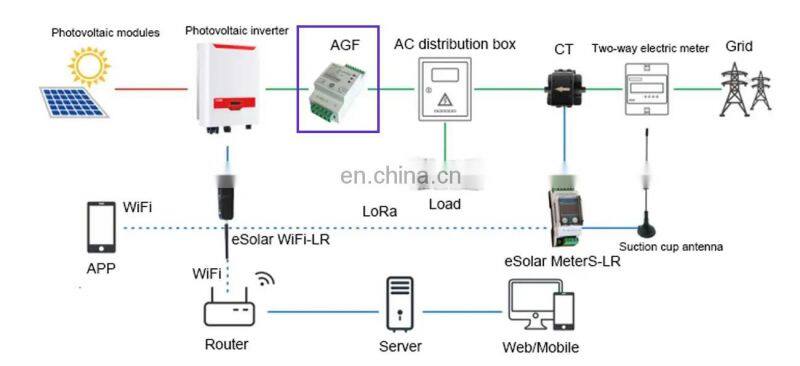

In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade
meter(RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.
In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade
meter(RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.

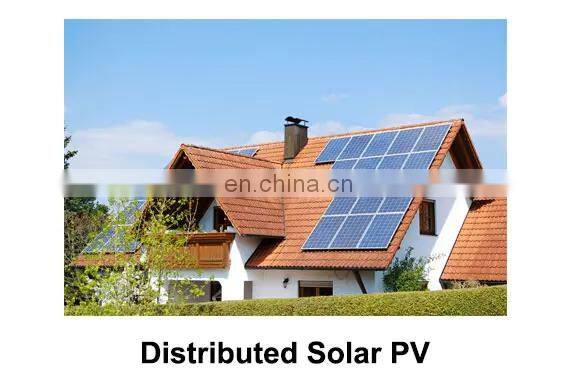

Used for distributed Solar PV

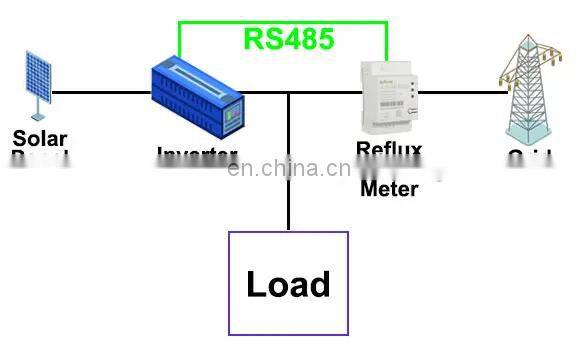

● Reflux Monitoring
● Connected with Load Line through CTs
● Directly connect with inverters

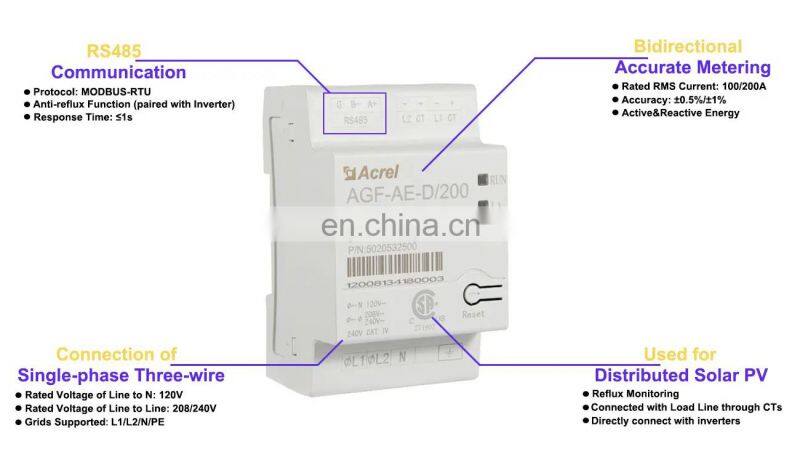

Single-phase Three-wire Connection
● Rated Voltage of Line to N: 120V
● Rated Voltage of Line to Line: 208/240V
● Grids Supported： L1/L2/N/PE
● Rated Voltage of Line to N: 120V
● Rated Voltage of Line to Line: 208/240V
● Grids Supported： L1/L2/N/PE
RS485 Communication
● MODBUS-RTU Protocol
● Communicate with Inverter to realize anti-reflux Function
● Response Time: ≤1s
● MODBUS-RTU Protocol
● Communicate with Inverter to realize anti-reflux Function
● Response Time: ≤1s

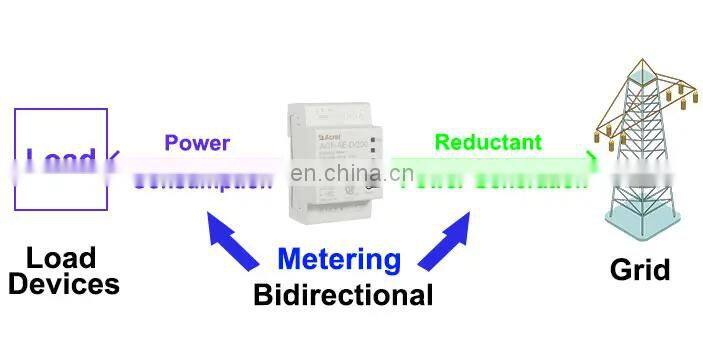

Bidirectional Metering
● Active&Reactive Energy Metering
● Rated RMS Current: 100/200A
● Accuracy: ±0.5%/±1%
● Active&Reactive Energy Metering
● Rated RMS Current: 100/200A
● Accuracy: ±0.5%/±1%
Technical Parameter
Meter Electrical Service | Units | |||||
AGF-AE-D/100 | AGF-AE-D/200 | |||||
Rated Voltage-Line to N | 120 | V | ||||
Rated Voltage-Line to Line | 208/240 | V | ||||
Extended Voltage Range | 88%~110% | |||||
AC Frequency | 60 | Hz | ||||
Grids Supported | L1/L2/N/PE | |||||
Power Consumption | 1.2 | W | ||||
Communication | ||||||
Meter Communication Interfaces | RS 485 | |||||
Response Time | ≤1 | S | ||||
Meter Accuracy | ||||||
Rated RMS current | 100 | 200 | A | |||
1%-100% of CT Current | ±0.5 | ±1 | % | |||
Current Transformers | ||||||
Number of Supplied Current Transformers | 2 | |||||
Dimensions | I.D:15 O.D:35 | 70.5×54.5×39 (H×W×D) | mm | |||
Standard Compliance | ||||||
Safety | UL1741 | |||||
Installation Specifications | ||||||
Dimensions(H×W×D) | 54.1×87.8×52 | mm | ||||
Weight | 0.2 | kg | ||||
Operating Temperature Range | -30~55 | ℃ | ||||
Relative Humidity (noncondensing) | 5 - 90 | % | ||||
Mounting Type | DIN-Rail，35mm | |||||
The meter is intended to be installed in a power distribution box in the end use. The acceptance of the application is to be evaluated in the end product.

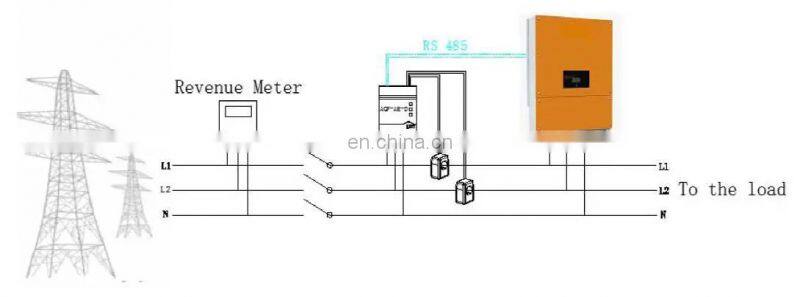

Wiring Illustration

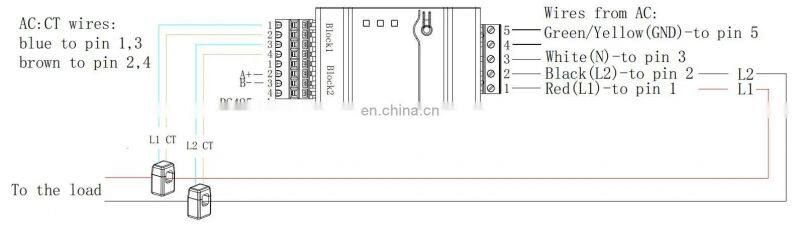

Connected with Load Line through CTs
Directly connect with inverter

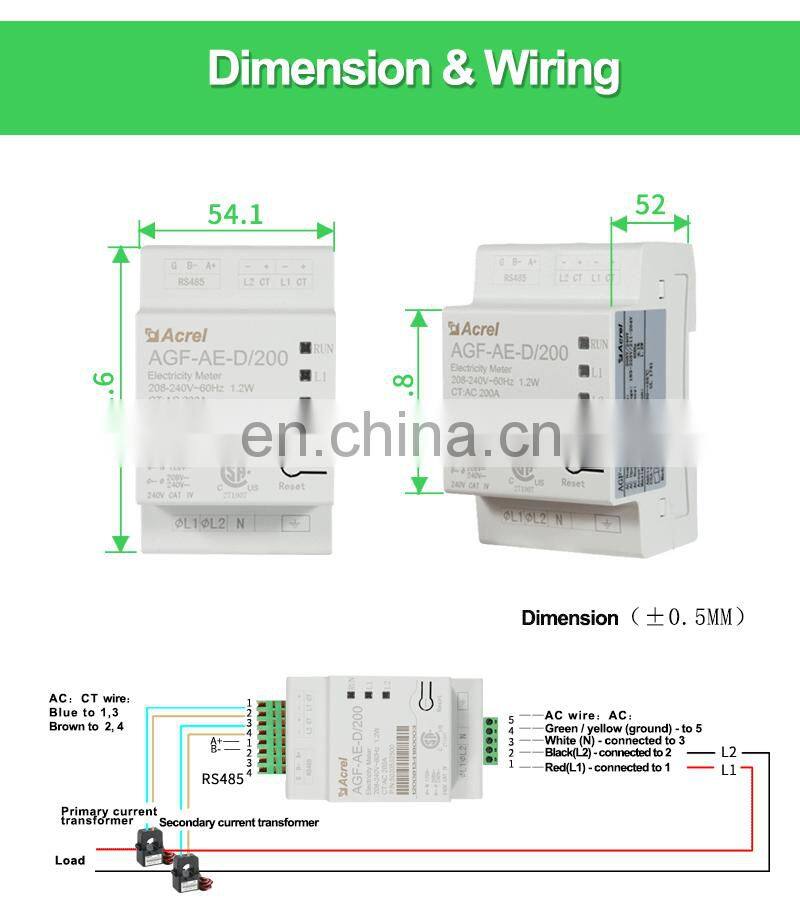

Dimension & Installation
Solution Structure

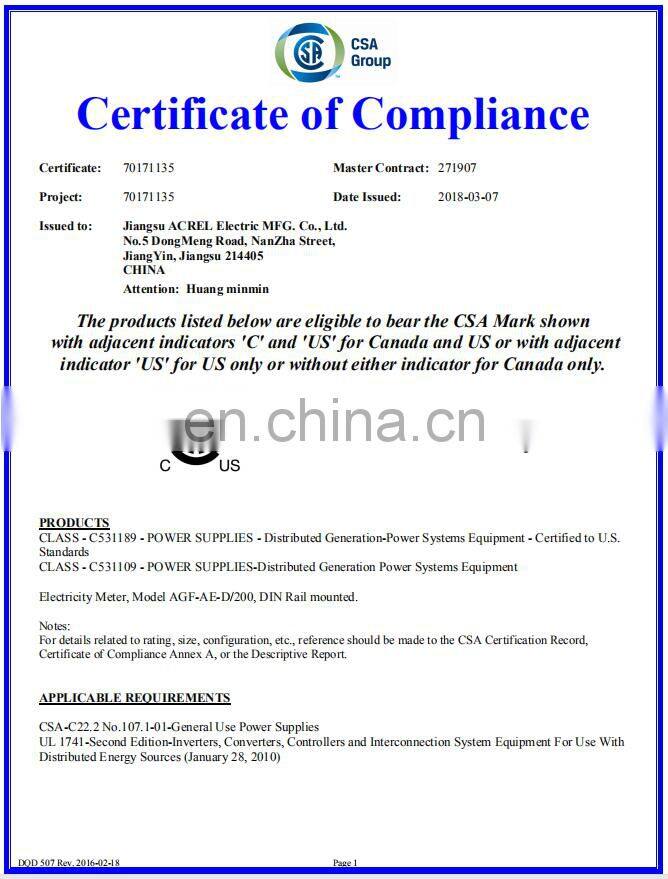

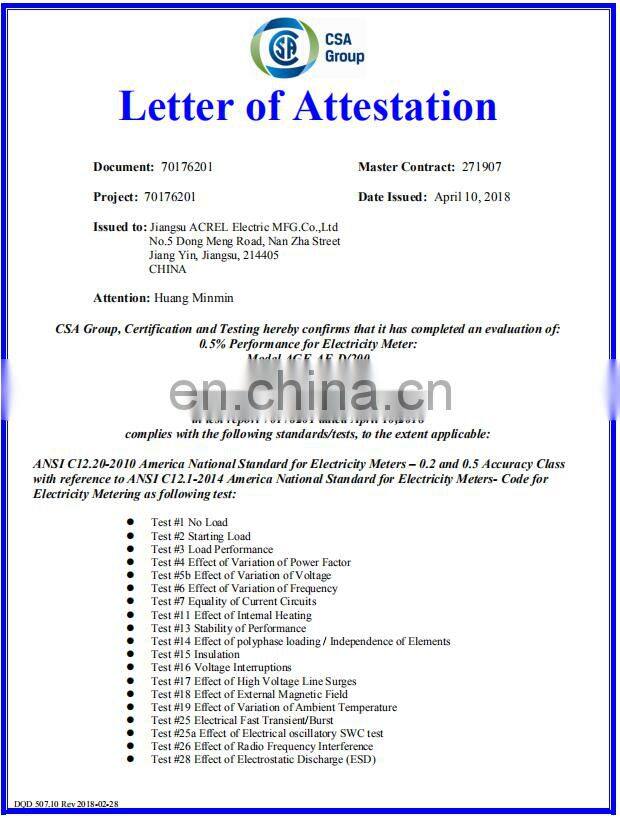

Certification
