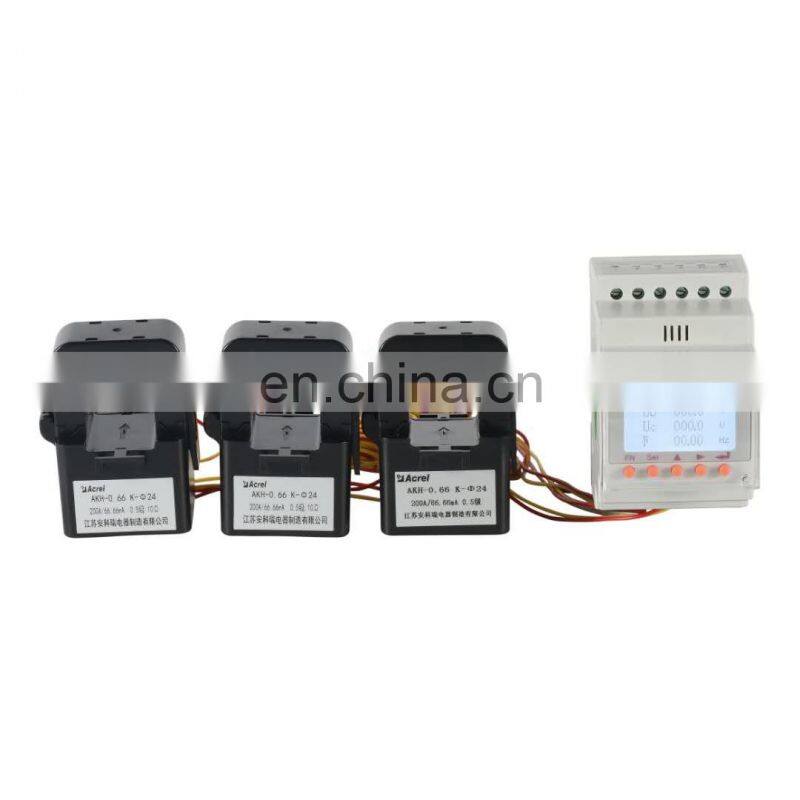

ACR10R-D10TE4 China Energy Meters Din Rail Energy Meter for Solar Inverter Prices
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
16 Channel Multi Channel Din Rail Smart Solar String Monitor Device for pv Combiner Box AGF-M16T-P2 DC1000V or DC1500V
-
Acrel AGF-M12T-P2 12 Channel DC0-20A Solar Power Meter Combiner Box for Solar Panel PV DC1000V Power Supply
-
ARTU100-KJ8/CE 8DI/8DO Remote Terminal Units Ethernet Communication 8 Channels Data Collection
-
32 Channel Data Exchange Device Collect Switch Signals Convert to Digital Signals ARTU100-K32 Remote Terminal Units
-
Remote Terminal Units ARTU100-KJ8MA84 Analog Collection 8AI+4AO DC4-20mA 0-5V
-
16DI Multi-channel Monitor ARTU100-K16 Series Remote Terminal Units Switch Value Collection
Product Description
Products Description

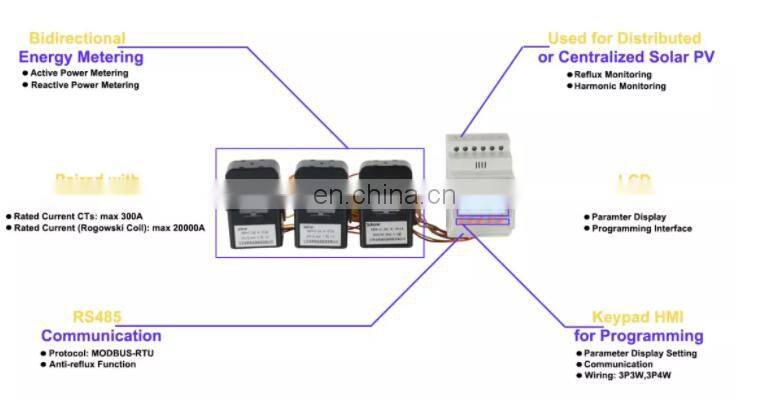

● Measurement: 3-phase Active Power, Reactive Power, Current, Voltage and etc

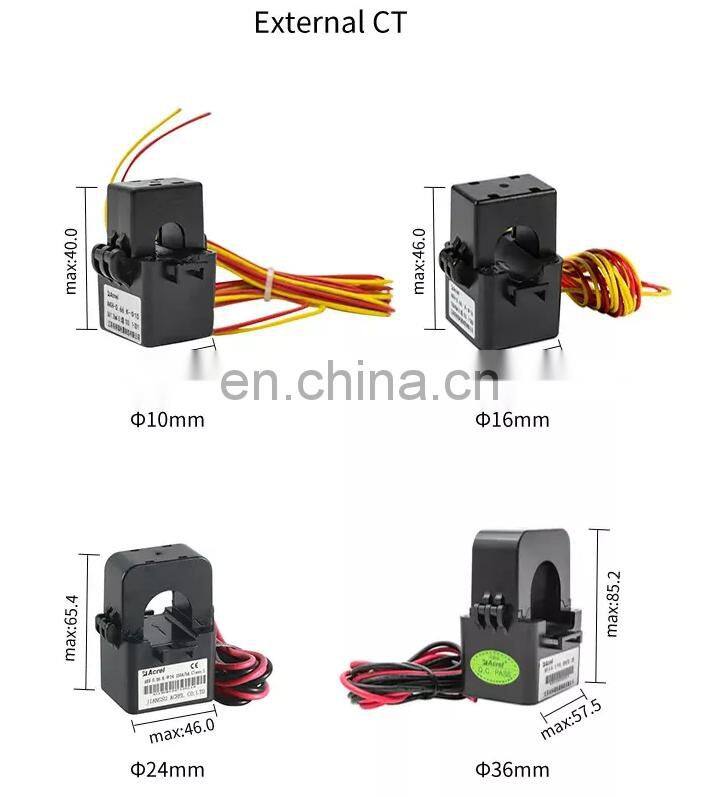

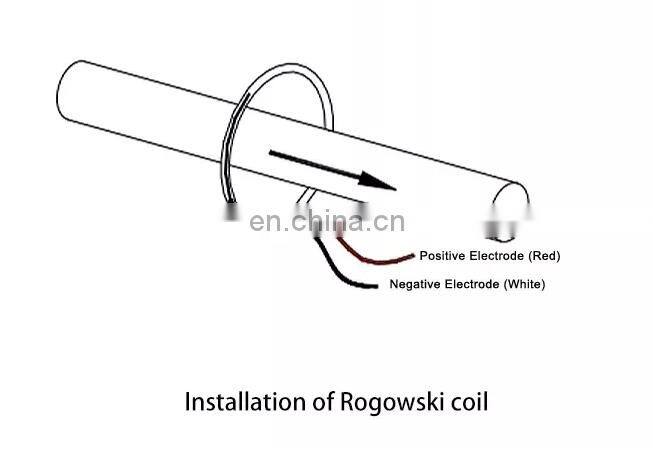

● Current Rating: up to 300A (with CTs); up to 20000A (with Rogowski Coil)
● Communication: RS485 (MODBUS-RTU)
● Application: Using in distributed Solar PV and Anti-reflux Inverter
● Display: LCD Display

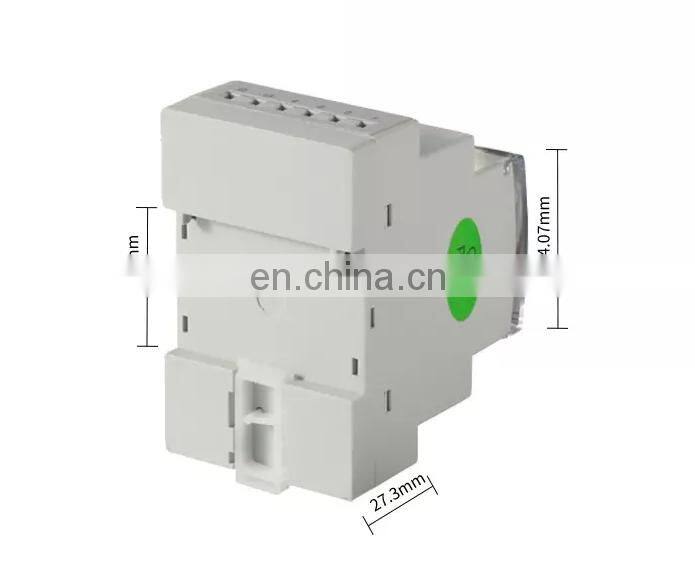

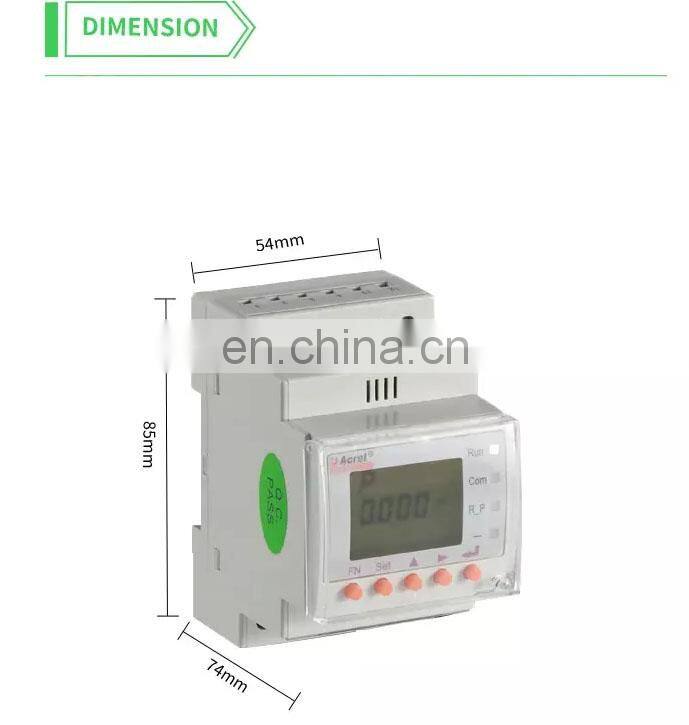

● Dimension: 54*64*84mm (L*W*H)
● Installation: 35mm DIN Rail
● Power Supply: 85~265V AC or 100~350V DC
● Standard&Certificate: CE
● Current Rating: up to 300A (with CTs); up to 20000A (with Rogowski Coil)
● Communication: RS485 (MODBUS-RTU)
● Application: Using in distributed Solar PV and Anti-reflux Inverter
● Display: LCD Display
● Dimension: 54*64*84mm (L*W*H)
● Installation: 35mm DIN Rail
● Power Supply: 85~265V AC or 100~350V DC
● Standard&Certificate: CE
The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including the smelting, iron and steel, welding and semi-conductor industry. It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management.

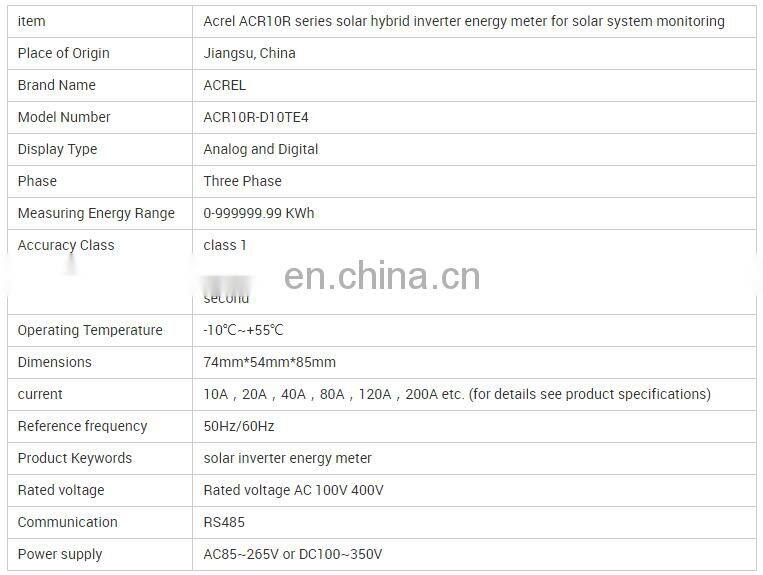

Technical Parameter
Details

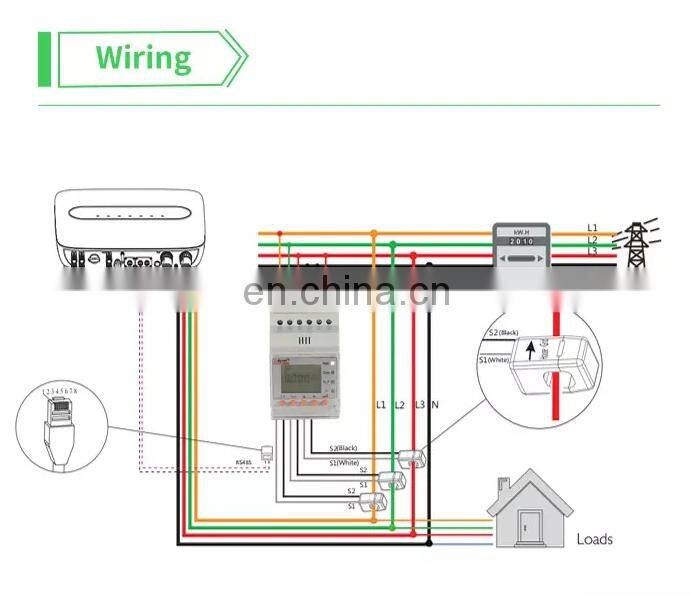

Solution Structure

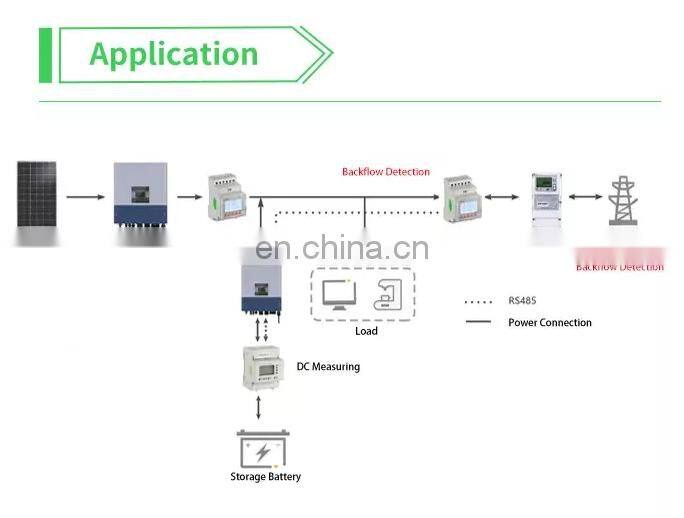

Application
Customized service
If you have any special requirements, for example another bandwidth and communication solution or special power supply and size ,please feel free to Contact Us.
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ?
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
