Automatic Sleeve Shrink Wrapping Bottle Machine Wrap System
- 1000 per Month
- T/T Credit Card
- CIP Cleaning System for Juice drinks beverage Processing
- automatic Air cooled mill sugar salt crusher Stainless steel crusher
- Stainless Steel Food Grade Automatic 304 Ss Food Grade Vertical Z Type Bucket Elevator Conveyor
- Stainless steel powder mixer Horizontal powder mixer
- Electric Tumbler Chicken Duck Goose Pork Meat Processing Vacuum Marinating Machine
- Canned food meat beef tuna fish fruit orange pear yellow peach grape sterilizing autoclave
Product Description
Product Description

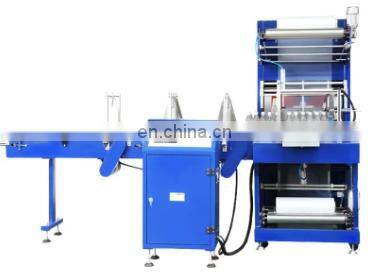

How Automatic Sleeve Shrink Wrapping Machine Shrink Wrap System works
1.After filling, capping and labelling, product containers are then transported into the wrapping unit, by means of a side mounted conveyor.

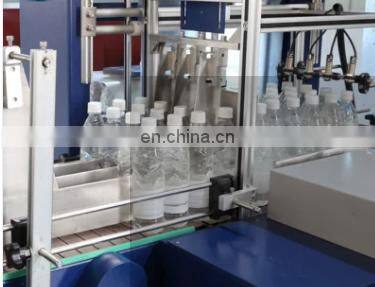

2.Here, a pneumatic pusher collates the containers into a preselected pack formation,
which upon completion is transferred forward into the welding position.
3.At this stage the pack is clamped, the welding bar descends to complete the wrap,
and the pusher returns to prepare the next collation of product.
4. As the welding bar ascends the pusher advances to transfer the new collation into the welding position, at the same time displacing the previously wrapped collation onto continuously moving shrink tunnel conveyor.

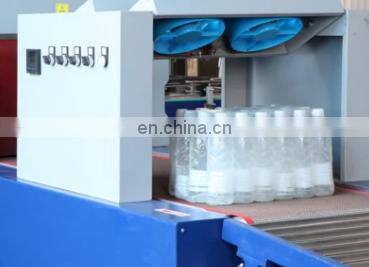

5.The wrapped collation soon enters the shrink tunnel chamber where recirculated hot air causes the wrap to shrink, and tightly conform to the contours of the contents.
6.Once the pack is out of the hot chamber, forced air cooling is used to tighten the sleeve wrap to achieve a strong, secure pack ready for stacking on a pallet or placing in a shipping carton.
Model | SSW-6040 |
Power consumption | Sleeve wrapper 220V/50-6-HZ/1phase |
Shrink tunnel 380V/50-60Hz/3phase | |
Max product size | 320(L)*150(W)*200(H)mm |
Max Packing capacity | Up to 10 PPM |
Applicable Film | Polyethylene(PE)film |
Film | 600mm(width),30-100micro(Thickness) |
Shrink tunnel | 2800mm(L), entrance 600(W)*400(H)mm |
Shrink tunnel conveyor | Teflon mesh belt conveyor |
Air pressure | ≤0.5MPa(5 bar) |
Weight(Approx) | Shrink wrapper 220kgs |
Shrink tunnel 380kgs | |
Overall | Shrink wrapper 1200x1000x1800mm |
Shrink tunnel 3000x1200x1700mm |
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
