Home > Products > fruit & vegetable processing machine > Stainless Steel 304 l Coconut Cutting Machine for Getting Coconut Water
Stainless Steel 304 l Coconut Cutting Machine for Getting Coconut Water
- T/T Credit Card
You May Like
-
Stainless Steel 304 Coconut Cutting Machine India
-
Factory Price Aloe Vera Peeling Machine Aloe Aloe Vera Peeling Gel With Customize Logo
-
Portable Industrial Green Peas Peeling Machine India
-
GYC Longan Nucleus Stone Core Pit Seed Remover Removing Machine
-
GYC Longan Nucleus Stone Core Pit Seed Remover Removing Machine
-
GYC Litchi Lichi Lichee Leechee Lychee Nucleus Stone Remover Removing Machine
Product Description

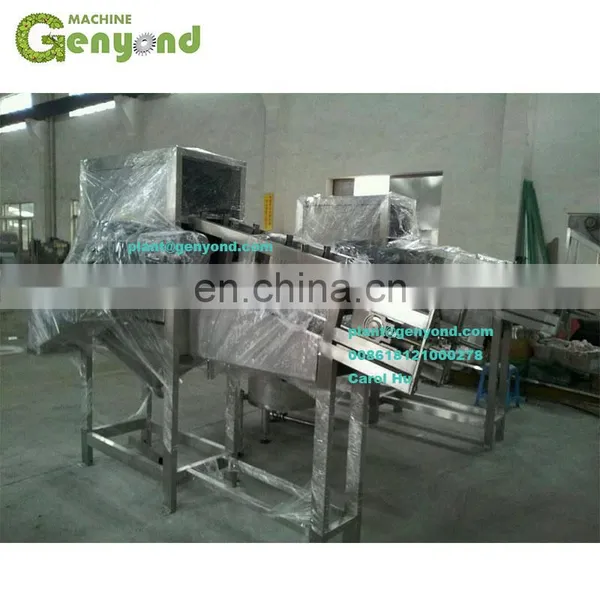

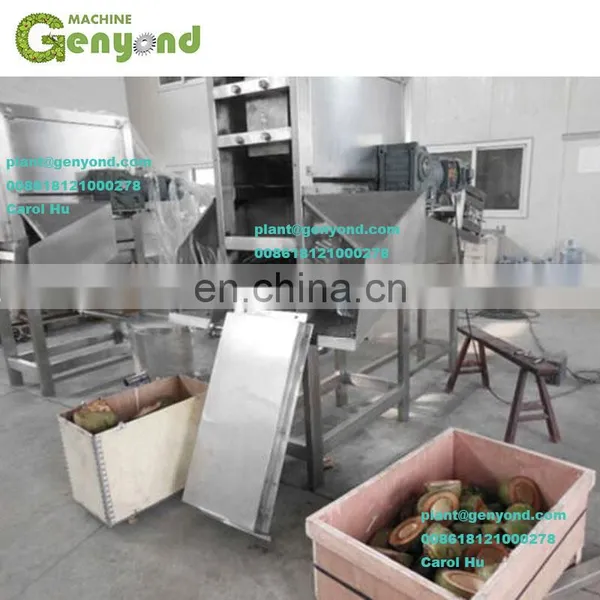

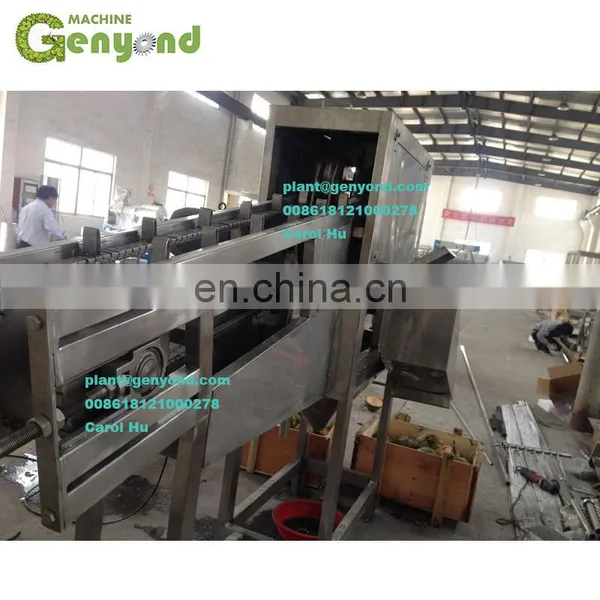

Stainless steel 304 l coconut cutting machine for getting coconut water
Product Detail
| Capacity | 800-2000PCS/H |
| Material | Stainless steel 304 |
| Function | Green coconut half cutting |
| Raw material | Green young fresh coconut |
| Final product | Coconut water |
| Product Keywords | coconut cutting machine for getting coconut water |

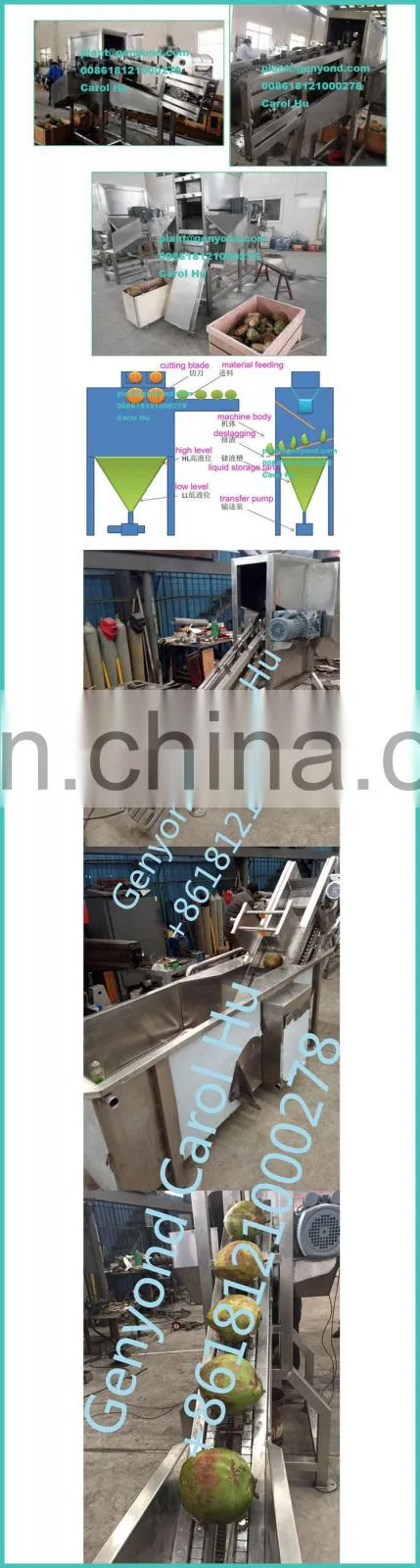

Structural feature and working principle
GYC green young fresh coconut half cutter cutting machine consists of frame, conveying chain, juice bucket, is an important part of slag bucket, dial frame, transmission reducer etc..
Main principle: artificial coconut on the conveyor chain on the transverse baffle, moving upward by the driving shaft drive, and then dial the frame operation, in the interaction of various transmission part, continue to do rotary motion conveyor chain, and will slowly increase the transmission to the coconut frame the top of the machine, a fixed blade, the blade and the coconut in the interaction force under the action of the dial frame is cut in half. After half cutting, the juice flows into the juice hopper. A row of bar is installed above the juice hopper to prevent the coconut shell from falling into the juice bucket, while the bar bar is at a certain angle. The coconut shell is introduced into the slag bucket by the bar bar.
Install adjustment and maintenance
1. installation must be reliable and keep the frame level.
2. before opening the machine, check the screws of each part to be fastened.
3. before the use of the machine, we should add a grease grease to each bearing, non - pole transmission and once every half a year.
4. connect the power supply, start the non - pole transmission, check whether the conveyor chain is tightened, if loose, adjust the tensioned wire, and tighten the conveyor belt.
5. the stones, screws and tools are strictly prohibited to fall into the equipment to prevent falling into the next process.
6. try running several times, each time not more than 20 minutes, cut off the power supply, re check according to the requirements of the above, confirm that no error, can be added to the trial operation.
7. regularly lubricate the parts of the machine.
8.after the shutdown, be sure to clean the whole machine inside and outside, keep clean.
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
