DRIVING TECHNOLOGY
Dual-motor and dual-frequency driving mode is adopted for better differential regulation;
It is more adaptive to the change of working conditions to ensure the separation effect;
Dynamic feedback design is employed to reduce power consumption effectively.
Hydraulic Gearbox System
-
Moisture content in the mud cake is always maintained at the minimum
-
The liquid after treatment is highly clarified
-
The power to transport the solid substances varies with load
-
Gearless driving device is applied
-
Breakage of parts caused by excess load is avoided
-
Torsion-free vibration (flutter)
-
"Constant" humidity of mud cake
-
Safety pin design ensures operation safety
-
Being insensitive to the increase/decrease of feeding quantity, it minimizes the material blocking possibility

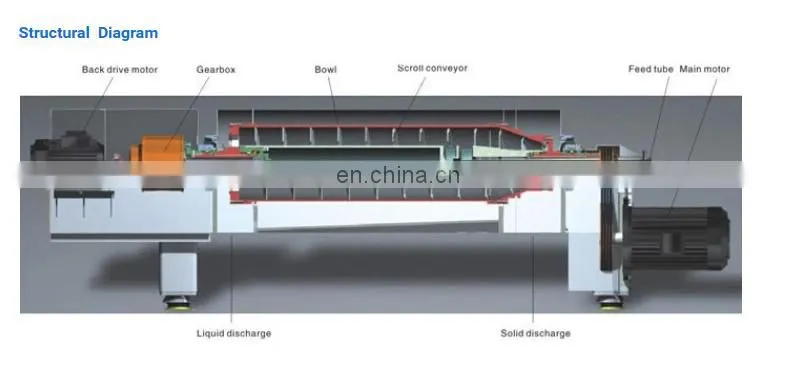

Labyrinth seal is adopted for both ends of the Bowl of the standard type of the LW series, which is simple yet efficient. After separation, the solid phases are pushed to the solid discharge outlet through a spiral and then discharged out of the Bowl under the action of the centrifugal force generated from high-speed revolution, and the clarified liquid is discharged out of the overflow port at the big end of the Bowl. Featuring simple operation, stable operation, high efficiency and high automation, and continuous working of 24 hours, this type is widely applied.
Product Description
Description :

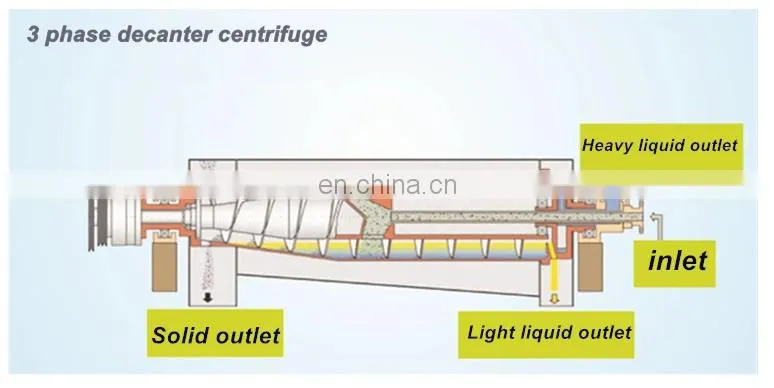

In our three phase decanter centrifuges, the light and heavy liquids are discharged via the force of
gravity and the centrifugal force, which effectively prevents the phases mixture and incomplete separation. Ordinary three phase decanter centrifuges often generate incomplete separation because
of unstable light / heavy phase liquid compositions, while in our centrifuges, the interface of light / heavyphase liquids can be regulated with constantly changing material compositions
in the machine working, thus optimal separation effect is achieved. Currently, our three-phase decanter centrifuges are used in the separation of oils, water and slags / dregs in the coal tar industry, the petrochemical industry, the fish powder industry, the swill oil industry, the electrolytic copper industry, and the waste scraps in the slaughter houses.
Material: high quality stainless steel
Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: carbide sheets of spiral feeder and replaceable alloy sleeves of drum outlet and spir
Feature:
The decanter centrifuge can be adjusted to suit individual requirements by varying:
1.Differential with high precision, compact structure, smooth operation.
2.Main bearing of imported bearings, to ensure the accuracy of the operation.
3.The part contacting with material is made of stainless steel.
4.The machine is equipped with a variety of safety overload protection devices, to make sure safety in production.
5.The machine system has two types, regular and explosion proof, to meet the different requirement.
6.Large length to diameter ratio, high speed, many angels of drum cone structure
7.Spiral pusher surface adopts hard alloy materials, against abrasion powerfully
8.According to the customer's desire, the frame can develop to low center of gravity, high bracket and move.
9.Spiral structure with BD board is used for the concentration dehydration of activated sludge and difficult separate materials
10.PLC control box
Application:
1.Environmental protection city life of dirt, power plants, petrochemical refinery sludge sludge, coking, industrial sludge concentration, sludge dewatering.
2.Food and drink fruit juice slag, slag of animal oil, plant oil, soy protein isolates of dehydration, concentration of fish protein, wheat starch B dehydration.
3.Chemical * barium dehydration, kaolin industry classification and grade of graphite and PPT, classification of drilling mud.
4.Coal tar, coal tar dehydration and slag, adapted to the different viscosity and water (emulsion) of coal tar separation, after the separation of reach national standard tar.
5, oil separation, vegetable oil, like avocado oil, olive oil, sesame oil, soy oil and so on.
animal oil, pork oil, fish oil, chiecken oil, beef oil ect.
waste oil like the waste heavy oil, fuel oil, other waste oil.
Horizontal Decanter Centrifuges feature continuous feeding and discharge . This chemical separation equipment has been applied two-phase(solid-liquid) and three-phase(solid-liquid-liquid) slurries separation industry of chemicals, pharmaceutical, environment protection, as well as mining and food, etc.
Advantage
1. this liquid clarifying device adopts horizontal design which balances the layout of electric motor and bowl. As a result, outstanding operation stability generates minimized vibration.
2. Dual eletric motor control enables stepless speed adjustment on bowl and spiral components.

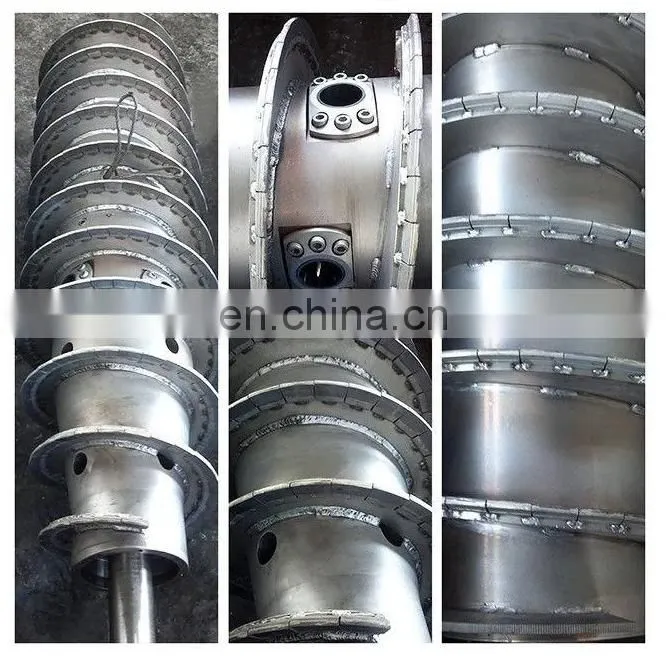

3. Scroll conveyor flight inside this continuous centrifuge is painted by abrasion resistant alloy or welded by hard alloy. Moreover, main components on our horizontal decanter centrifuge, such as rotating bowl and spiral parts, are made from corrosion resistant stainless steel or dual- phase steel, whereby offering exceptional speed limits and separation ratio.
4. Our mud dewatering equipment comes with three options including cycloidal gear, planetary gear and hydraulic differential, resulting in large rang of differential adjustment. Therefore, this industrial centrifuge can be applible to diverse solids.
5. Multipe protections are available on our horizontal decanter centrifuge to ensure operation safety, including over-vibratation protection, bearing temperature detection, screw conveyor torque protection rotating and differential speed detection, as well as nitrogen-filled explosion- proof protection, motr overload and over heat protection.
6. JG type rubber shock absorber requires no anchor bolts.
Application
1. industrial and municipal wastewater treatment
2. oil&gas drilling mud/fluid control
3. washing, separation and dewater of starch
4. mycelium and zymtotic fluid separation for antibiotic
5. dewatering of soybean and wheat protein
6. dewatering of fish power and fish meat
7. dewatering of vinasse
8. clarification and extraction of fruit juice
9. separation and purification for animal and vegetable oil
duction and purification of olive oil, palm oil, avcado oil
11.separation and purification for coal tar
12.grading of kaolin and grapgite
13.grading and dewatering of dyestuff and pigment
14.froth flotation for cleaned coal and dewatering of coal mud
15.grading and dewatering of minerals
