3220 UV Flatbed Printer for Tile Wood Metal PVC Acrylic

Name: 3220 UV Flatbed Printer for Tile Wood Metal PVC Acrylic
Brand: Yotta
Availability: InStock

FOB Price

30000 - 40000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card Cash Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yotta	Place of Origin	China
Model Number	P30KJ	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Weight	2500 KG
Voltage	220V	Usage	Other, advertising printer
Condition	New	Dimensions(LWH)	5250mm2750mm1500mm
Gross Power	6KW	Color & Page	Multicolor
Plate Type	Flatbed Printer

Product Description

3220 UV Flatbed Printer for Tile Wood Metal PVC Acrylic

1. Adopting High speed Kyocera head series industrial printhead, original imported Panasonic servo.

2. Maximun print size of 3200mm × 2000mm (10.5′ × 6.6′), print thickness of 130mm.

3. Wide applications and high print resolution of 635 × 2400 DPI.

4. Print C, M, Y, K, Lc, Lm, White ink, Varnish.

5. Cost-effective, Eco-friendly and Easy to operate.

Specifications

Model	P30KJ
Print Size	3200 × 2000 mm (10.5 × 6.6 ft)
Printhead	Kyocera grey level Piezo print head
Printhead Quantity	2-8 pcs (4-8 colors optional)
Print Resolution	635 × 2400 DPI
Material Thickness	Up to 130mm (4in)
UV Curing System	LED UV lamp
Ink Type	Original imported UV curable ink
Ink Color	C, M, Y, K, Lc, Lm, White ink, Varnish (optional)
Interface Mode	High Speed USB
RIP Software	Photoprint
Color Management	International standard ICC
Input Format	PDF, JPEG, TIFF, EPS, AI
Printer Weight	2500KG
Printer Size	5250mm[L] × 2750mm[W] × 1500mm[H] (17.2ft×9.0ft×4.9ft)
Package Size	5550mm[L] × 2950mm[W] × 1900mm[H] (18.2ft×9.7ft×6.2ft)
Power Requirement	220V/AC(±10%), 50/60 HZ, 5.8KW
Working Environment	Separate, little sunlight, ventilated workshop, Temperature: 18ºC~30ºC(64ºF~86ºF); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm.

Machine details

	Integrated steel frame structure

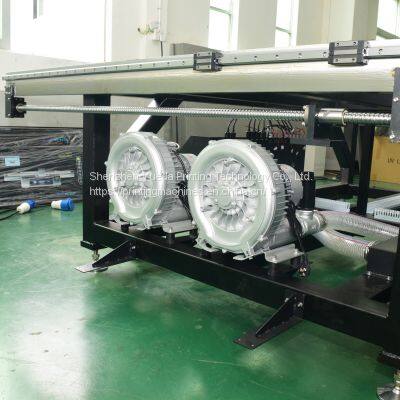

	1.5kw vortex type high pressure air pump fan
	Ink circuit negative pressure control system

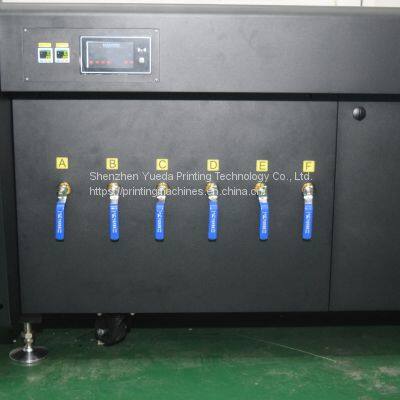

	Intelligent ink mixing system
	Ink shortage alarm system and double negative pressure independent system
	Import Germany IUGS towline
	Transmission beam guide with linear motor

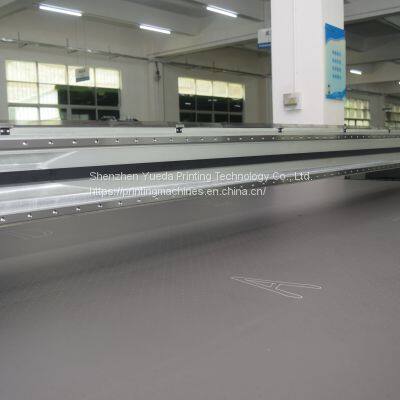

	6 suction areas
	The suction and blowing platform.

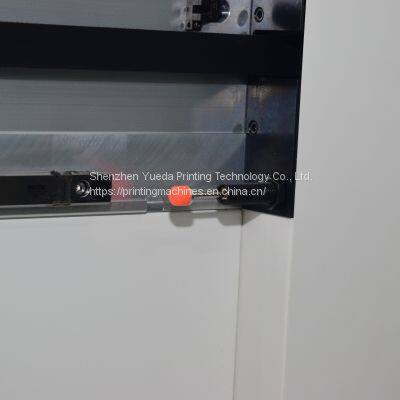

	Anti crash and automatically measure the height

Samples Show:

Company Information

Yotta is a new hi-tech Enterprise that combines Design, R&D, Production, Sales and Technical Service together.
We have successfully developed UV Flatbed printers, UV Roll to Roll printers and UV Hybrid printer with Ricoh and Kyocera print heads.

With company's development and growth, we also become one of top UV printer manufacturer in China, with over 11 years of rich experience.
We are committed to providing customers with world-class printing equipment as well as professional UV printing solutions. Because we are YOTTA, we will never let you down.

Certifications

Packaging & Shipping

Package details:

1. Export standard wooden package.

2. By ocean freight.

Delivery time: 5~7 working days(Except customized model)

FAQ

Q: What's the application of UV printer?

A: Extensively applied on various materials for all kinds of industries. For applied industry, see our solutions.

Q: How to buy yueda Printer?

A: List your detailed requirements and email to us,our sales representative will contact you soon. Or you can come to visit us at our plant in Shenzhen.

Q: How to get your service support?

A: Yueda offers easy and on time online service support to our customers.You can also get service through our Branch office in your local side.
